Overview

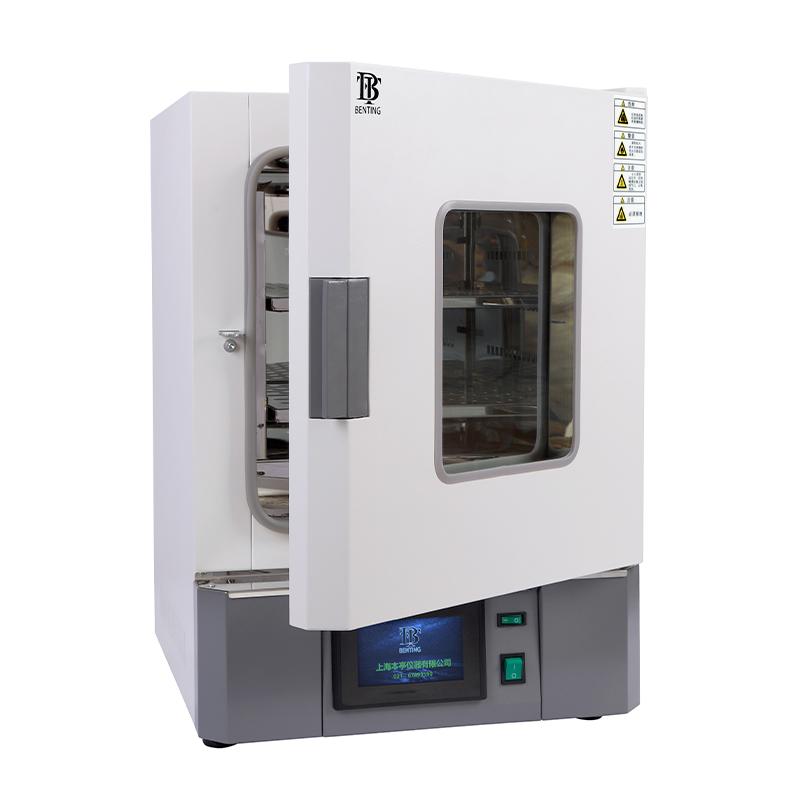

The BENTING CBPL-230BE incubator is a High Accuracy, Safe and Reliable Vertical Device with dual duct forced convection technology to ensure temperature uniformity. It supports constant operation, timed operation and automatic stop function, and is equipped with LCD display and PID control for a wide range of laboratory applications.
Features
1. High Accuracy Temperature Control, Resolution up to 0.1 ℃, Fluctuation +/- 0.5 ℃.
2. Safe and reliable, with over-rise preventer, low water level alarm and power failure memory functions.
3. Easy to operate, set the temperature by tapping the four buttons, support fixed value, regular operation and automatic stop.
4. Good temperature uniformity, using vertical double air duct air jacket and turbine centrifugal forced air supply.
5. Speed adjustable fan design, suitable for lightweight, fine and powdery samples.
6. Forced fan cooling structure to ensure that the fan operating temperature is lower than 50 ° C and prolong the service life.
7. Multifunctional additional features, including deviation correction, menu locking and power outage compensation.
Principle
The incubator uses a turbocentrifugal fan to force air through a dual air duct forced convection system to ensure uniform temperature distribution in the box. Using PID temperature control mode, the temperature is monitored in real time through the Pt100 Sensor, and the heater (nickel-chromium alloy heating wire) is automatically adjusted to maintain the set temperature. During operation, it supports fixed value and timing modes, and can automatically stop when the set time is reached.
Applications
Laboratory, scientific research, education, biological foster, medical research, environment testing
Standards
The product information does not mention specific compliance standards
Steps
1. Turn on the power supply and ensure that the voltage is AC 220V.
2. Use the touch of four buttons to set the desired temperature.
3. Select the operation mode: fixed-value operation or timed operation (Timer Range 0-9999 minutes).
4. Start the device and monitor the temperature data of the LCD display.
5. After the operation is completed, the device automatically stops.
6. Optional additional functions such as programmed temperature control or external communication.
Notice
• Power frequency meets AC 220V requirements to avoid overload use.
• Check the water level before use to prevent the low water level alarm from triggering.
• Avoid running in a high temperature environment for a long time to protect the life of the fan.
• Regularly clean the liner and observation window to keep the equipment hygienic.
• Options such as Shelf or external interfaces need to be installed correctly to avoid affecting performance.
In case of any abnormality during operation, immediately stop using and check the safety device.
