Overview

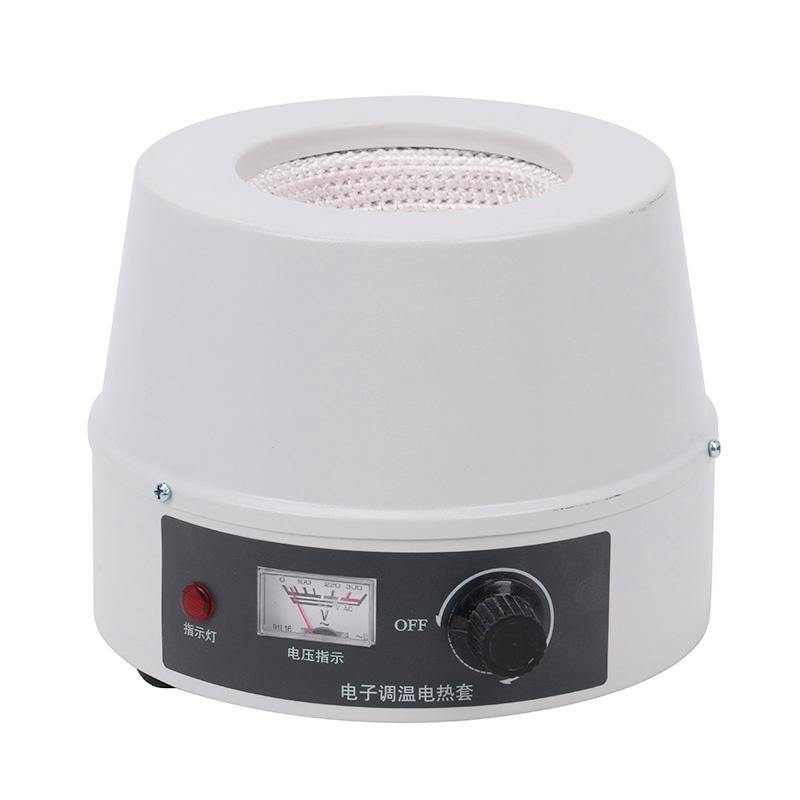

BENTING CDZ-1000ml Electric Mantle is a laboratory liquid heating equipment mainly used in colleges and universities, Petrochemicals, environmental protection and other industries. It uses high temperature resistant and alkali-free fiberglass as insulating material, seals the resistance wire in the insulating layer, and weaves it into a hemispherical internal heating heater. It has the advantages of large heating area, fast heating, good thermal insulation effect, no open flame, and not easy to scratch Glass utensils.
Features
1. High temperature resistant non-alkali fiberglass insulation material
2. Hemispherical internal thermal design of resistance wire sealing in the insulating layer
3. Large heating area and fast heating
4. Good thermal insulation effect
5. No open flame heating
6. Glass ware not easily bruised
7. Professional non-electric shock electronic voltage regulation circuit
8. Long service life and wide temperature regulation range
9. Can work continuously
Principle
The product adopts a professional electronic voltage regulation circuit without electric shock, and adjusts the voltage and controls the temperature by turning the knob to achieve the purpose of thermostatic. The resistance wire is sealed in the high temperature resistant fiberglass insulating layer to form a hemispherical inner thermal heater for heating.
Applications
Colleges and universities, Petrochemicals, environmental protection and other industry laboratories
Standards
Voltage standard:~ 220V +/- 10%
Steps
1. Slowly turn the knob, the indicator light is on or the voltmeter changes accordingly
2. The voltage adjustment should not be too high at the beginning, and the temperature should be raised slowly
3. Adjust the voltage control temperature by adjusting the knob to achieve the purpose of thermostatic
Notice
• When using it for the first time, slowly heat up. Turn off the power supply after seeing the raw white smoke. After the smoke is scattered, power on and heat up. Repeat several times until it is powered on and smoke-free, it can be officially used.
• The sleeve cannot enter flammable, explosive, corrosive liquids or gases
• Relative working environment humidity does not exceed 85%
• The product must be grounded
• When storing, it should be dried and not damp
• If there is moisture, you should pay attention to induction electricity when using it, do not touch it with your hands, and restore its good insulation performance after drying
