Overview

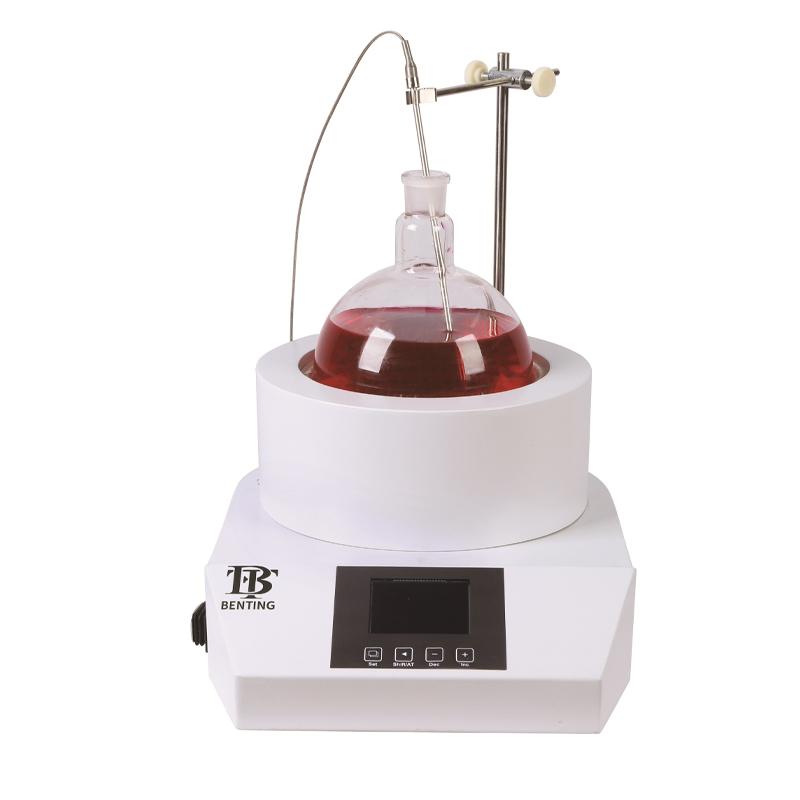

BENTING Electric Mantle model CZN-100ml is mainly used for heating laboratory liquids in universities, colleges and universities, petroleum, chemical industry, environmental protection and other industries. It uses high temperature resistant and alkali-free fiberglass as insulating material, seals the resistance wire in the insulating layer, and then weaves into a hemispherical internal heating heater. This product has the advantages of large heating area, fast heating, good thermal insulation effect, no open flame, and not easy to scratch Glass utensils.
Features
1. Large heating area; 2. Fast heating; 3. Good thermal insulation effect; 4. No open flame; 5. Not easy to scratch Glass utensils; 6. High temperature resistant and alkali-free fiberglass insulating material; 7. Resistance wire sealing in the insulating layer; 8. Hemispherical internal heating heater design.
Principle
Electric Mantle uses high temperature resistant non-alkali fiberglass as insulating material, the resistance wire is sealed in the insulating layer, and then woven into a hemispherical inner heating heater to heat the liquid through the resistance wire. The instrument controls the temperature, and can set and automatically adjust the PID parameters to achieve accurate temperature control.
Applications
Colleges and universities, laboratories in petroleum, chemical, environmental protection and other industries
Steps
1. Turn on the power supply, turn on the power switch, the upper row of the meter displays the studio temperature, and the lower row displays the set temperature; 2. Press the SET key to enter the temperature setting state, press ▲ or ▲ to set the desired temperature, and then press the SET key to save; 3. When the temperature rises, the finger light flashes on and off, and the display value is basically the same as the set value, enter the thermostatic state; 4. Self-tuning function: Press the SET key for 5 seconds to enter the inner menu, select the AT parameter setting 1 to turn on self-tuning, the AT indicator light flashes, and the AT light goes out after the self-tuning is completed; 5. Sensor error correction: Press the SET key for 5 seconds to enter the inner menu, select the SC parameter, press ▲ or ▲ to modify the correction range + 50 ° C to -50 ° C, and then press the SET
Notice
- Power frequency needs to be~ 220V +/- 10%; - The maximum operating temperature is 380 ° C to avoid overheating; - The self-tuning can be stopped by pressing the ▲ button for 5 seconds during the self-tuning process; - The error correction range of the Sensor is limited to + 50 ° C to -50 ° C; - The finger light is on and off when working to indicate the heating state; - Make sure that the instrument shows the correct measurement value before correcting; - Continuous Operating Time is unlimited, but pay attention to safe operation.
