Overview

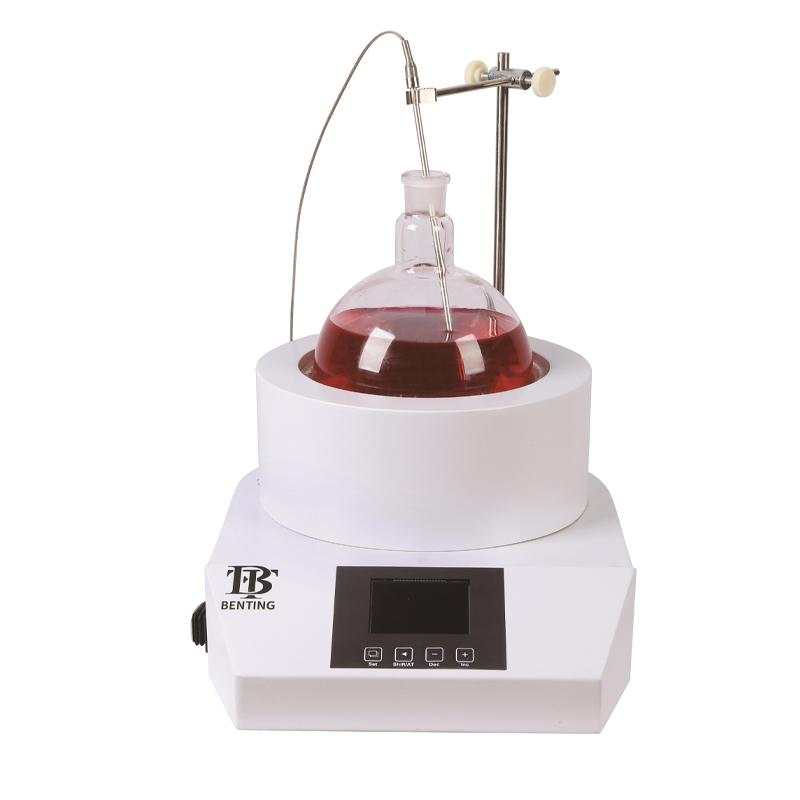

BENTING CZN-5000ml Electric Mantle is a hemispherical internal heating heater made of high temperature resistant and alkali-free fiberglass insulating material, which is mainly used for laboratory liquid heating in various colleges and universities, petroleum, chemical, environmental protection and other industries. The product has the advantages of large heating area, fast heating, good thermal insulation effect, no open flame, and not easy to scratch Glass utensils.
Features
1. Using high temperature non-alkali fiberglass insulating material, resistance wire sealing in the insulating layer
2. Design of hemispherical internal heating heater
3. Large heating area, fast heating
4. Good thermal insulation effect
5. No open flame, safe and reliable
6. Glass ware not easily bruised
Principle
Electric Mantle uses high temperature resistant non-alkali fiberglass as insulating material, sealing the resistance wire in the insulating layer, and then weaving into a hemispherical inner heating heater to heat the laboratory liquid through the resistance wire.
Applications
Colleges and universities, laboratories in petroleum, chemical, environmental protection and other industries
Steps
1. Turn on the power supply, turn on the power switch, the upper row of the meter displays the studio temperature, and the lower row displays the set temperature
2. Press the SET button, and the data of the lower row of digital tubes flashes, indicating that it has entered the temperature setting state
3. Press ▲ or ▲ to set the desired temperature, and then press the SET key to save the set value
4. When the temperature rises, the finger light flashes on and off, and the display value is basically the same as the set value, it enters the thermostatic state
5. Self-tuning function: Press the SET key for 5 seconds to enter the inner menu. After selecting the parameter AT, cooperate with ▲ or ▲ to set 1 to turn on self-tuning.
6. Sensor error correction: Press the SET key for 5 seconds to enter the inner menu, select the parameter SC, and then cooperate with the ▲ or ▲ key to modify the parameters
Notice
• During the self-tuning process, press the ▲ key for 5 seconds to stop the self-tuning.
• Sensor error correction range is + 50 ° C to -50 ° C
• After the correction is completed, press the SET key for 5 seconds to exit
• Maximum operating temperature is 380 ° C (heating element surface temperature)
• Power frequency~ 220V +/- 10%
