Overview

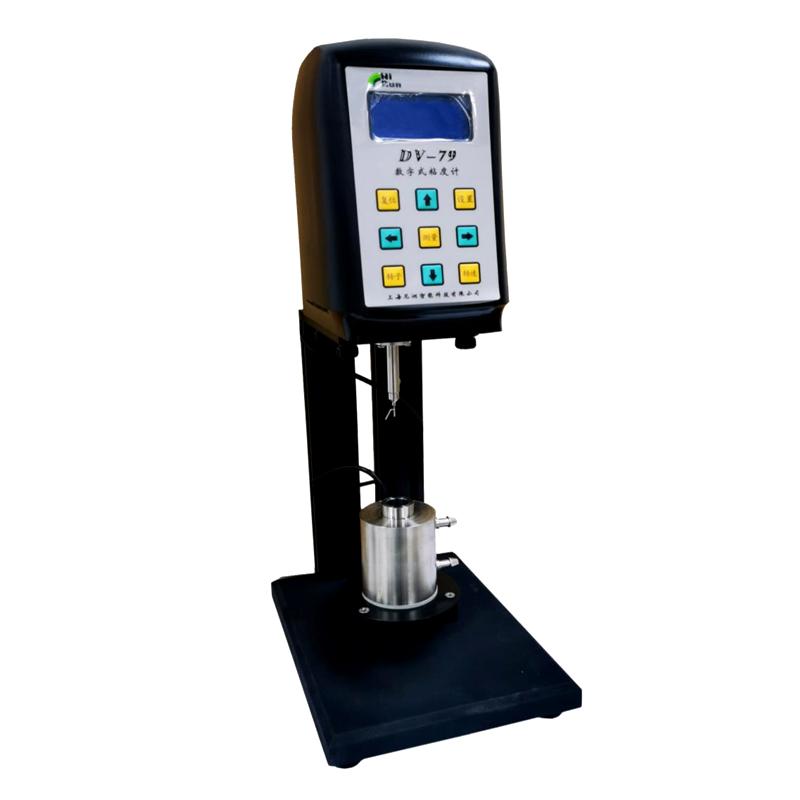

The NIRUN DV-79B Digital Viscometer Package is a digital rotational viscometer standard with A and B test containers and 7 rotors, as well as a micro printer.
Features
1. Stepper motor direct drive, no gear, accurate speed
2. LCD liquid crystal with blue backlight, displaying a large amount of information
3. Display the maximum viscosity value of the rotor that can be measured at the current speed
4. Timing measurement function
5. The viscosity value shows continuous change
6. There is an alarm sound beyond the measurement range
7. Standard RTD Temperature Probe
8. Computer full-scale linear correction
9. AC Power Adapter 100V-240V, good anti-interference
Principle
The digital swirl/spin measurement principle is used to directly drive the rotor swirl/spin through the stepper motor, measure the fluid resistance and calculate the viscosity value.
Applications
Starch, Glue, Latex, Adhesive solvent, polymer solution, petroleum, paints, solvents, cosmetics, milk products, fruit juice
Steps
1. Select the appropriate rotor and test vessel
2. Connect the Power Adapter
3. Set speed and measurement parameters
4. Start measuring and reading viscosity values
5. Use micro printer to output measurement results
Notice
• Power frequency within 110~ 220V range
• Select the right rotor for measurement
• Pay attention to the measurement range and avoid exceeding the alarm range
• Check the Temperature Probe before use
• Regular equipment calibrating maintenance
