Overview

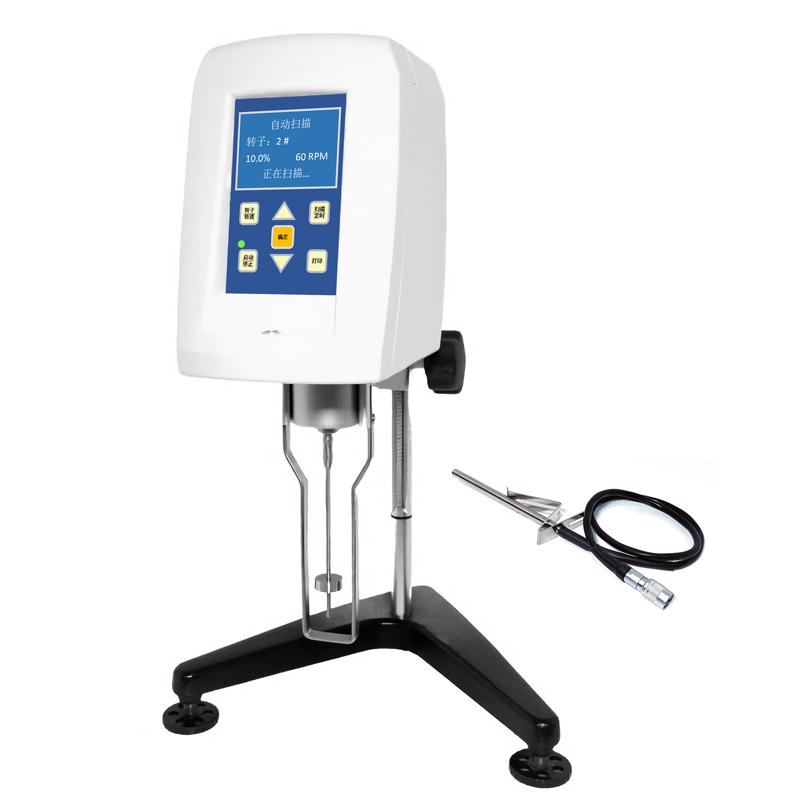

FANGRUI NDJ-9S digital Viscometer adopts microcomputer drive technology, imported stepper motor and LCD backlight display, with program setting and automatic control functions. The instrument has stable speed, good accuracy and easy operation. It supports automatic scanning and error alarm. The screen directly displays information such as viscosity, speed, rotor number, percentage meter torque, maximum viscosity of range and liquid temperature. Full scale and Linearity Measurement correction of each gear is carried out with standard silicone oil through PC interface to ensure high sensitivity, High Accuracy and high repeability, and the measurement data is accurate and reliable.
Features
1. Designed and manufactured according to JJG-2005 standards
2, large LCD screen liquid crystal display, with blue backlight function, display rotor number, speed, range, viscosity, temperature, angle%
3. ▲/▲ function keys are used to replace the speed and rotor number selection
4. The "Rotor Selection" function key prompts the rotor number, and the cursor flashes.
5. The "Speed Set" function key prompts the speed, and the cursor flashes.
6. "Start, stop" function key to execute or terminate the current measurement program
7. The "Auto Scan" function key helps users select the appropriate Rotor speed measurement for unknown samples
8. The "OK" function key confirms the current selection information
Principle
The instrument adopts microcomputer drive technology and imported stepper motor to realize viscosity measurement through program setting and automatic control. The screen directly displays relevant parameters, and uses PC interface for standard silicone oil correction to ensure measurement accuracy and repeability.
Applications
Oil, paints, coatings, Stock, Spinning & weaving, Food, Adhesive, Cosmetics and other fluids, semi-fluid production industries and R & D institutions
Steps
1. Use the "Rotor Selection" function key to select the rotor number
2. Use the "Speed Settings" function key to set the speed
3. Press the "Start, Stop" function key to execute or terminate the measurement
4. For unknown samples, use the "Auto Scan" function key to select the appropriate Rotor speed
5. Use the "OK" function key to confirm the selection information
Notice
• The instrument needs to be calibrated with standard silicone oil through the PC interface to ensure accuracy
• When using the automatic scanning function, it is necessary to automatically prompt the Rotor speed combination according to the sample viscosity
• Pay attention to the prompt of the function key and the blinking state of the cursor when operating
