Overview

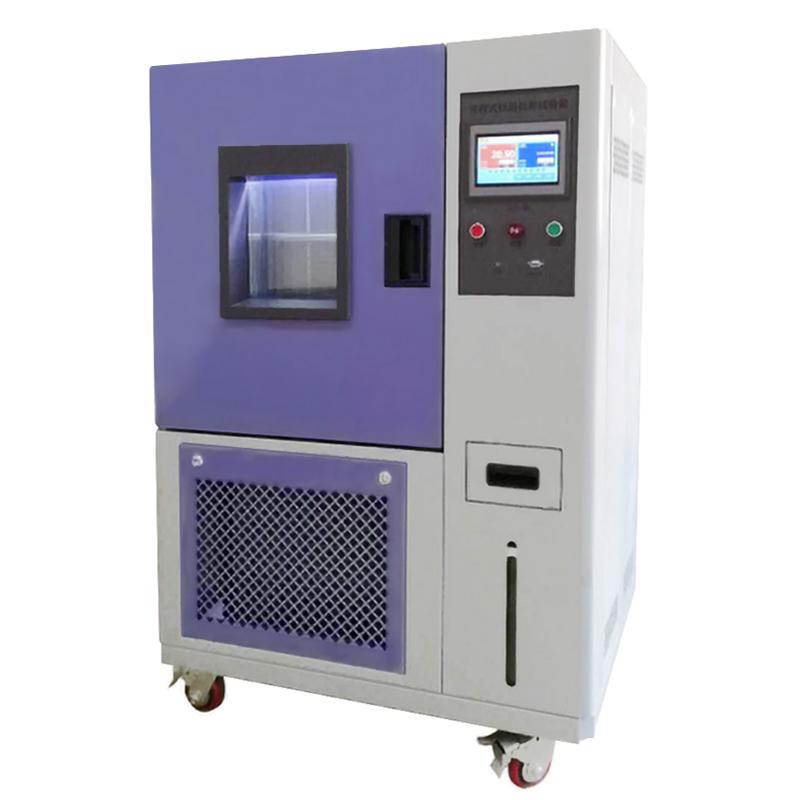

BENTING CBGDW-100L low/high temperature test chamber is a professional Environmental performance equipment, suitable for product performance testing under high and low temperature conditions. The box is made of cold plate paint outer box and mirror stainless steel inner wall, equipped with single-opening hinged door, observation window, lighting and anti-condensation device to ensure clear and reliable testing process.
Features
1. Enclosure Material is cold plate paint, the inner wall is made of good mirror stainless steel plate
2. The box insulation material is fiberglass, effective insulation
3. Single open hinged door design, with observation window, lighting and window frame/door frame anti-condensation electric heating device
4. Control panel integrated controller display, U disk interface, RS232 communication interface, power switch, status indicator and sound and light alarm device
5. The unit includes refrigeration unit, water tray, drain hole, condenser fan, condenser inlet trend and supply water tank
6. The power distribution system includes IO boards, machine tool transformers, ballasts, intermediate relays, solid state relays, AC contactors, thermal relays, fuses, under-inverting relays, and air switches
7. The control system automatically adjusts the operation of the refrigerator to save energy
8. The evaporator cooling capacity is driven by the solenoid valve switch
Principle
The low/high temperature test chamber automatically adjusts the refrigerator and heating system through the control system to achieve accurate temperature control in the range of -20 ° C to 150 ° C. The refrigeration system uses a fully enclosed low-noise rotor Compressor and an air-cooled heat exchanger to automatically switch the operation mode according to the set conditions to ensure temperature uniformity and stability.
Applications
Electronics, automotive parts, materials research, aerospace, military products
Steps
1. Connect the power supply and turn on the device switch.
2. Set the required temperature parameters through the control panel
3. Start the test program and the equipment automatically runs cooling or heating
4. Monitor the test process, observe the status indicators and alarm devices
5. Turn off the device and disconnect the power after the test is completed
Notice
Prohibit the testing of flammable, explosive, volatile, highly toxic, corrosive, and radioactive products
• Ensure equipment is used in a well-ventilated environment
• Regularly check the refrigeration system and electrical components to prevent malfunctions
• Avoid direct contact with high or low temperature surfaces during operation to prevent burns or frostbite
