Overview

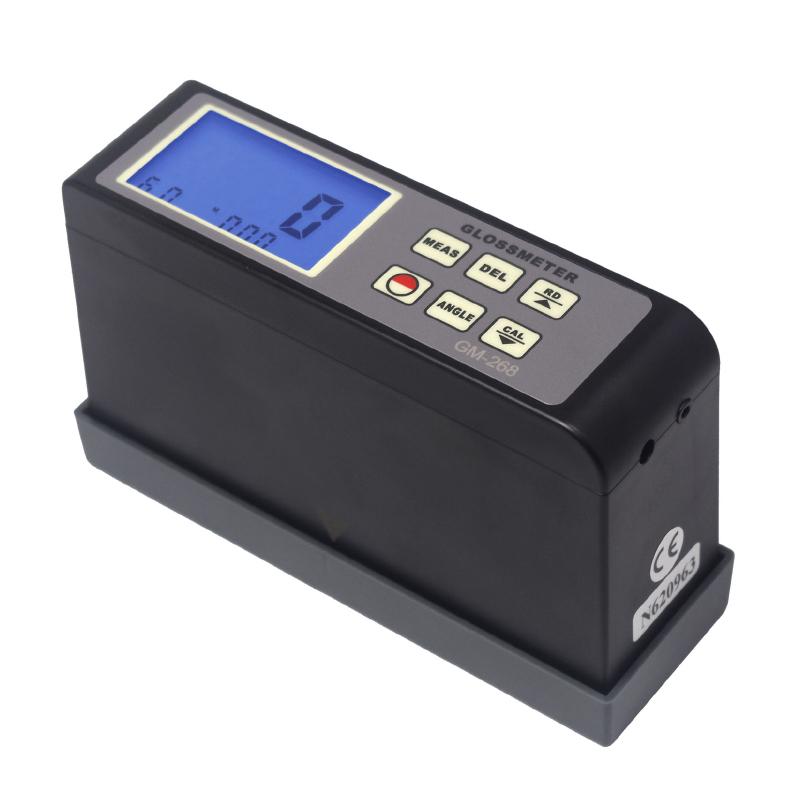

The LANDTEK glossmeter GM-268 is a precision instrument that provides 20/60/85 measurement with a Repeatability of +/- 0.5 GU and a range of 0.1-200 GU. The instrument is widely used for gloss measurement on surfaces such as floors, plastics, automotive coatings, etc. It is lightweight, portable and intelligently designed.
Features
1. Precision and lightweight shape, easy to carry.
2. Automatic calibration without manual adjustment.
3. Fully intelligent design, fast measurement.
4. Accurate measurement, Repeatability.
254 sets of data can be stored.
6. Built-in rechargeable lithium-ion battery.
7. There is a backlight display, which is convenient to use in a dark environment with dark rays of light.
8. Use USB data cable output and RS-232 data cable output to communicate with PC.
9. Provide Bluetooth data output selection.
Principle
The Glossmeter GM-268 evaluates Glossiness by measuring the reflection of light rays on the surface of the object, using multi-angle (20 °/60 °/85 °) measurement technology to ensure data accuracy and Repeatability. The built-in intelligence system of the instrument automatically processes the measurement data and outputs the results through the Interface.
Applications
Maintenance of floors, quality control of surface cleaning, gloss measurement of stones and tiles, inspection of paint sprays, quality control of paints, inks and polished metal surfaces, protective layers of paints, wax films, automotive body paints, inspection of plastic molds, detergents, scrubbers, masonry, evaluation of building exteriors
Standards
ASTM D-523、ASTM D1455、ASTM C346、ASTM C584、ASTM D2457、DIN67530、ENISO7668、JISZ8741、MFT30064、TAPPIT480、Gb9754、GB/T13891、GB7706、GB 8807、JJG 696-2002
Steps
1. Download and read the operation manual "GM-268 LANDTEK glossmeter operation manual.pdf".
2. Make sure the instrument has sufficient power and charge it if necessary.
3. Select Measurement Angles (20 °/60 °/85 °) as required.
4. Align the instrument measurement port with the surface to be measured.
5. Start measurement, you can choose single or continuous Measurement mode.
6. Read and record measurement data, can store up to 254 sets.
7. Export data via USB, RS-232 or Bluetooth interfaces.
Notice
Please read the instructions carefully before operation to ensure correct use.
* Avoid use in extreme temperatures or Humidity conditions, Operating temperature is 0~ 40 ℃, relative humidity < 85% RH.
Periodically calibrate instruments to maintain measurement accuracy.
* Make sure the surface is clean during measurement to avoid dust or stains affecting the results.
* Pay attention to charging when using the built-in battery to avoid excessive discharge.
When storing data, be careful not to exceed the 254-set limit.
* For more information, refer to the relevant inspection report and unpacking assessment.
