Overview

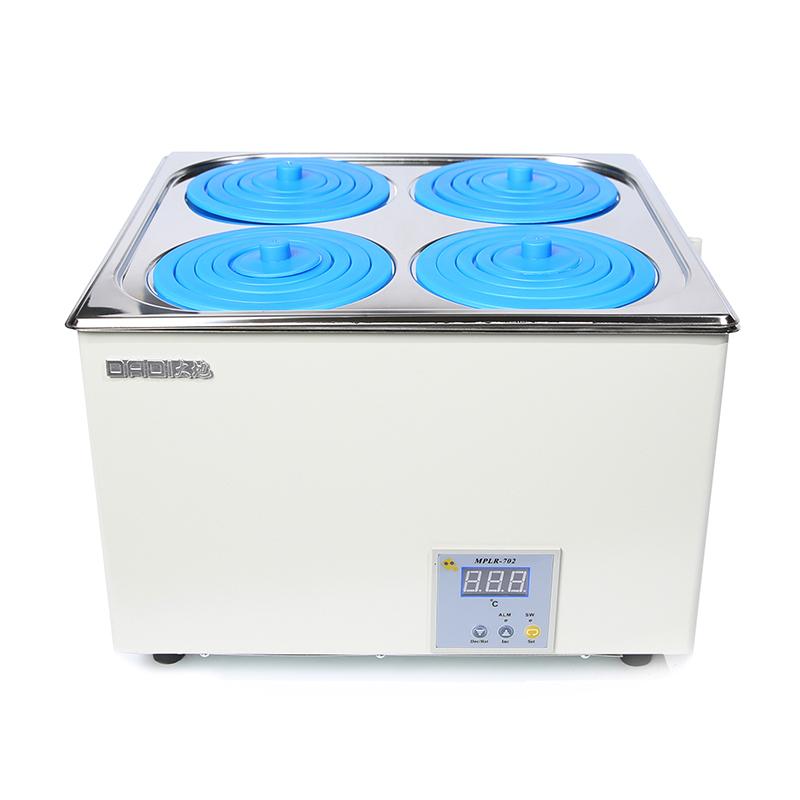

The DADI HH-S24 thermostatic water bath is a digital display double row four-hole water bath equipment with stainless steel sink and cover, and the chassis adopts Cold rolled steel plate spraying process. The product has the characteristics of beauty, corrosion resistance, stable temperature control, energy saving and practicality, convenient maintenance and long service life. It is suitable for distillation, drying, condensing and temperature staining chemicals or biological products.
Features
1. The sink and cover are made of stainless steel, and the chassis is sprayed with Cold rolled steel plate, which is beautiful and corrosion-resistant
2. Adopt a special electronic temperature control system for stable and reliable temperature control
3. Energy-saving and practical, convenient maintenance, long service life
4. Digital display mode displays temperature, easy to operate
5. Double row four hole design, Tank size is 00 * 320 * 130mm
Principle
The product adopts a special electronic temperature control system, which integrates integrated circuit Sensor, single chip microcomputer, PID and fuzzy control technologies to heat water through a heating tube to achieve accurate temperature control. The temperature control part directly displays the actual temperature in the pot digitally to ensure stable temperature.
Applications
Distillation, drying, condensing, warming chemicals, biological products
Steps
1. First pour the water into the pot above the Shelf
2. Connect 220V AC power supply, use three-hole safety socket and properly ground
3. Turn on the power supply for heating operation
Notice
• Use 220V AC power supply, the power socket should use a three-hole safety socket, which needs to be properly grounded, and must not connect the grounding wire to the gas pipe
• Before power on, water should be injected into the pot above the Shelf. During use, the heating tube must not be exposed to the water surface, otherwise the heating tube will burn out or even burst or the solder will melt and leak, electric shock, etc
