Overview

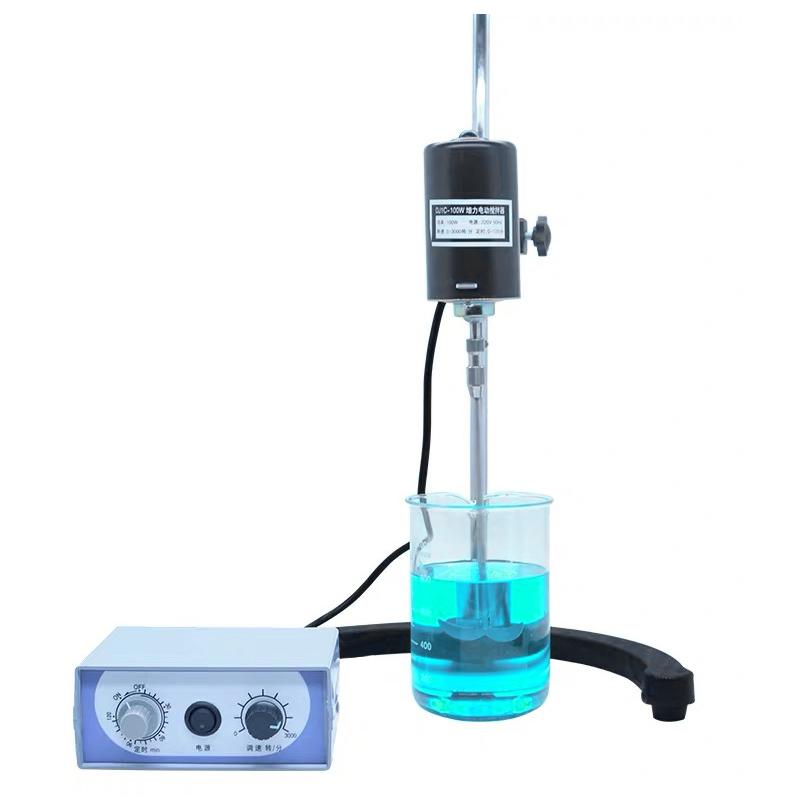

DADI DJ1C-100 powerbasic stirrer adopts permanent magnet DC motor, which has the characteristics of low noise, zero start and low price, but the starting torque is small and the speed fluctuates with voltage and load changes. Suitable for scientific research, Universities & colleges and factory laboratories.
Features
The controller adopts fast 1T single chip microcomputer as the core component, uses pulse width modulation (PWM) DC speed regulation technology, and the drive part refers to CMOS transistor, which has the characteristics of high speed regulation accuracy, fast Response speed, wide speed regulation range and low loss.
2. The motor part is made of permanent magnet DC motor, which has the characteristics of stable speed and low noise.
3. Stirringrod made of stainless steel, corrosion resistant.
4. Independent control box, which can be operated away from the workbench.
Principle
This machine adopts permanent magnet DC motor, and applies pulse width modulation (PWM) DC speed regulation technology through the controller based on the core components of fast 1T single chip microcomputer. The drive part uses CMOS transistor to achieve accurate speed regulation and efficient operation.
Applications
Research, Universities & colleges, Factory Laboratories
Steps
1. Familiar with the manual and the functions of each part of the control box panel, install each component, and adjust the height according to requirements.
2. Turn on the power switch.
3. Set the time.
4. Adjust to the required speed and you can work.
Notice
• When using, if you find that the stirringrod is not centered or the Stir is unstable, please adjust the support chuck to make the stirringrod concentric; when using the triangular flask Stir, align the stirringrod with the center and then turn it on.
• When the power supply is suddenly blocked, please check whether the power cord plug is loose or peeling, and whether the fuse is broken; if not, please contact our factory.
• Safe use of electricity, this product uses 220V AC power supply, and the power socket should use a three-hole safety socket, which needs to be properly grounded.
