Overview

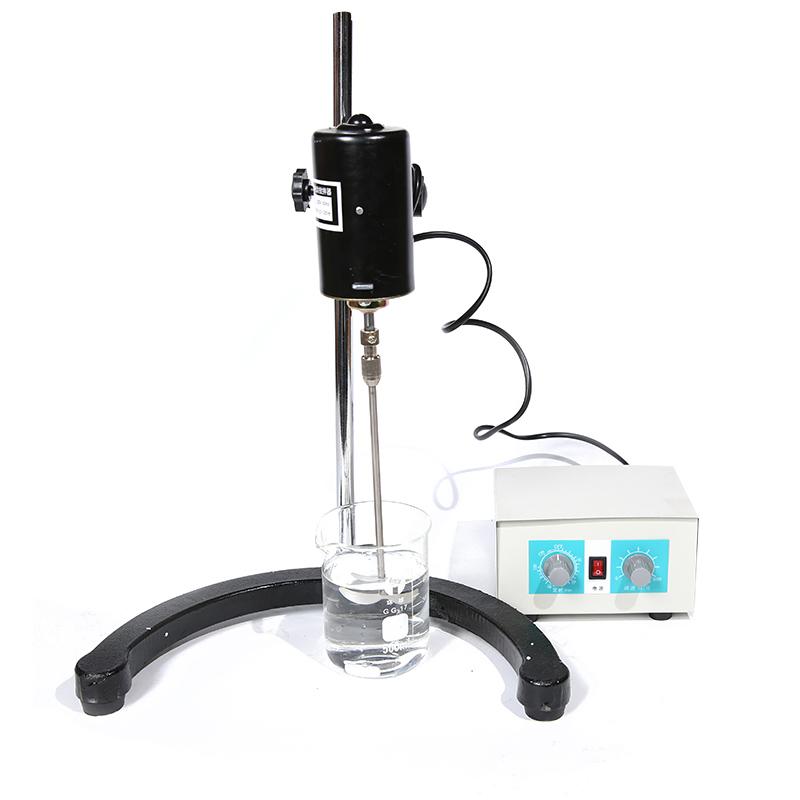

The DADI DJ1C-160 powerbasic stirrer uses a permanent magnet DC motor with low noise, zero start, and low price, but the starting torque is small and the speed fluctuates with voltage and load changes. This product is suitable for scientific research, Universities & colleges, and factory laboratories.
Features
1. The controller adopts fast 1T single chip microcomputer as the core component, uses pulse width modulation (PWM) DC speed regulation technology, and the driver part refers to CMOS transistor, which has the characteristics of high speed regulation accuracy, fast Response speed, wide speed regulation range and low loss
2. The motor part is made of permanent magnet DC motor, which has the characteristics of stable speed and low noise
3.Stirringrod made of stainless steel, corrosion resistant
4. Independent control box, can be operated away from the workbench
Principle
The product is driven by permanent magnet DC motor, and the controller uses pulse width modulation (PWM) DC speed regulation technology implementation to accurately control the speed. The driving part uses CMOS transistors to ensure the speed regulation accuracy and Response speed.
Applications
Research, Universities & colleges, Factory Laboratories
Steps
1. First familiarize yourself with the manual and the functions of each part of the control box panel
2. Complete the assembly of each component
3. Adjust the height as required
4. Turn on the power switch
Step 5 Set time
6. Adjust to the desired speed
7. Ready to work
Notice
• If you find that the stirringrod is not centered or the Stir is unstable during use, please adjust the support chuck to make the stirringrod concentric; when using the triangular flask Stir, align the stirringrod with the center and then turn on the Stir.
• When the power supply is suddenly blocked during use, please check whether the power cord plug is loose or peeling, and whether the fuse is broken; if it is not the above situation, please contact the factory
• Safe use of electricity, this product uses 220V AC power supply, the power socket should use a three-hole safety socket, which needs to be properly grounded
