Overview

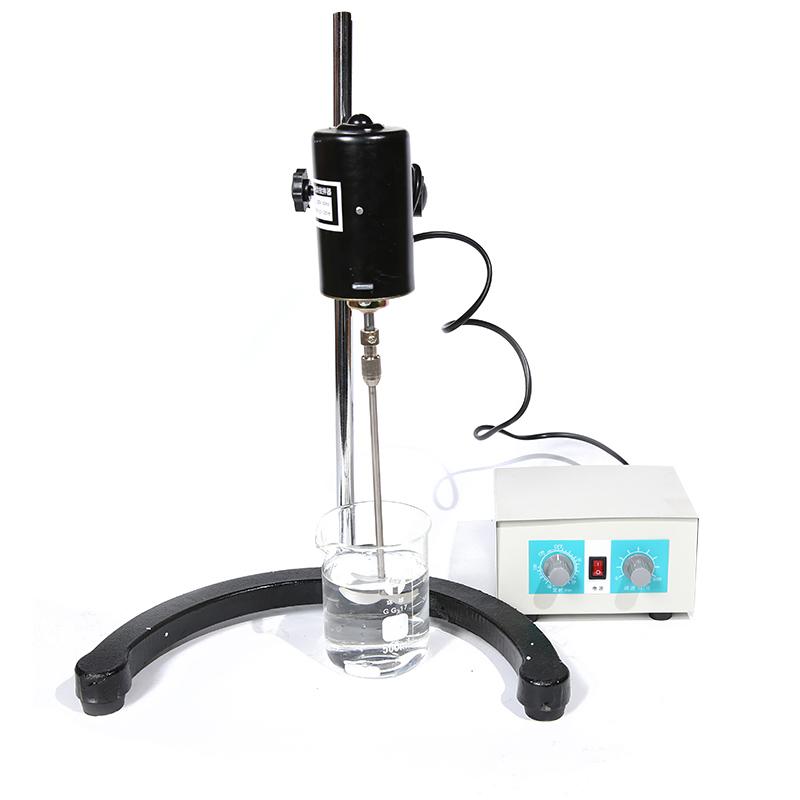

DADI DJ1C-200 powerbasic stirrer adopts permanent magnet DC motor, which has the characteristics of low noise, zero start and low price, but the starting torque is small and the speed fluctuates with voltage and load changes. Suitable for scientific research, Universities & colleges and factory laboratories.
Features
The controller adopts fast 1T single chip microcomputer as the core component, and uses pulse width modulation (PWM) DC speed regulation technology, which has the characteristics of high speed regulation accuracy, fast Response speed, wide speed regulation range and low loss.
2. The motor part is made of permanent magnet DC motor, which has the characteristics of stable speed and low noise.
3. Stirringrod made of stainless steel, corrosion resistant.
4. Independent control box, which can be operated away from the workbench.
Principle
This machine is driven by permanent magnet DC motor, and the controller is controlled by fast 1T single chip microcomputer through pulse width modulation (PWM) DC speed regulation technology to achieve accurate speed regulation and stable operation.
Applications
Research, Universities & colleges, Factory Laboratories
Steps
1. First familiarize yourself with the manual and the functions of each part of the control box panel, install each component, and adjust the height according to requirements.
2. Turn on the power switch, set the time, and adjust it to the required speed to work.
Notice
• When using, if you find that the stirringrod is not centered or the Stir is unstable, please adjust the support chuck to make the stirringrod concentric; when using the triangular flask Stir, align the stirringrod with the center and then turn it on.
• When the power supply is suddenly blocked, please check whether the power cord plug is loose or peeling, or whether the fuse is broken; if not, please contact our factory.
• Safe use of electricity, this product uses 220V AC power supply, and the power socket should use a three-hole safety socket, which needs to be properly grounded.
