Overview

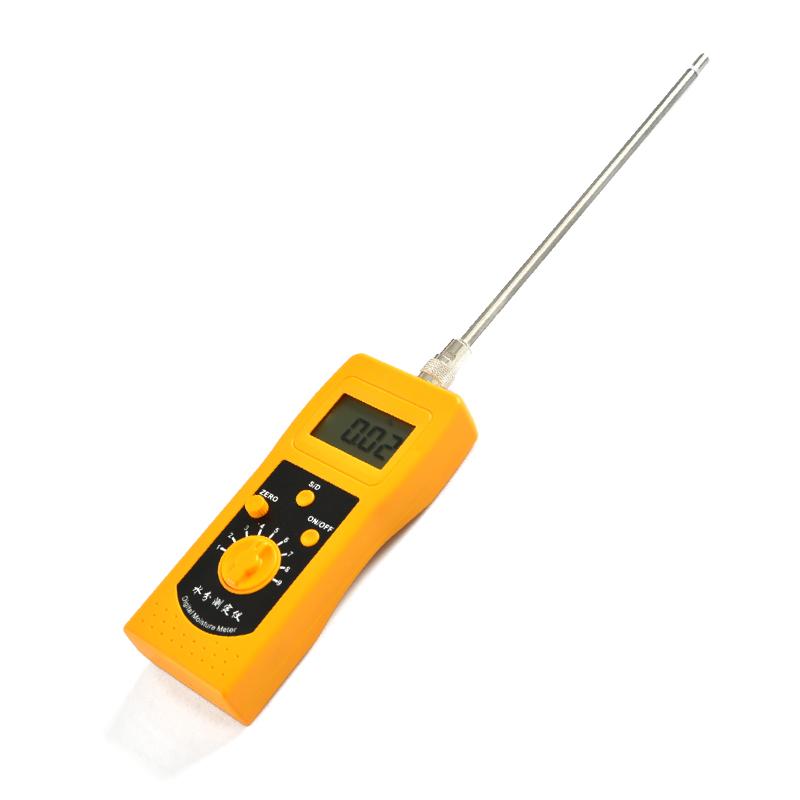

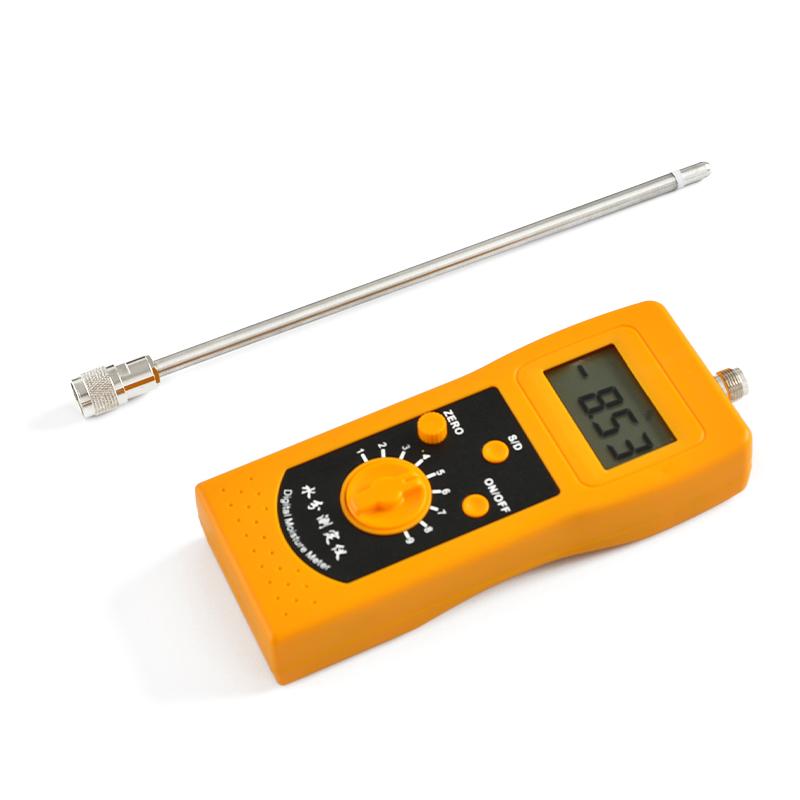

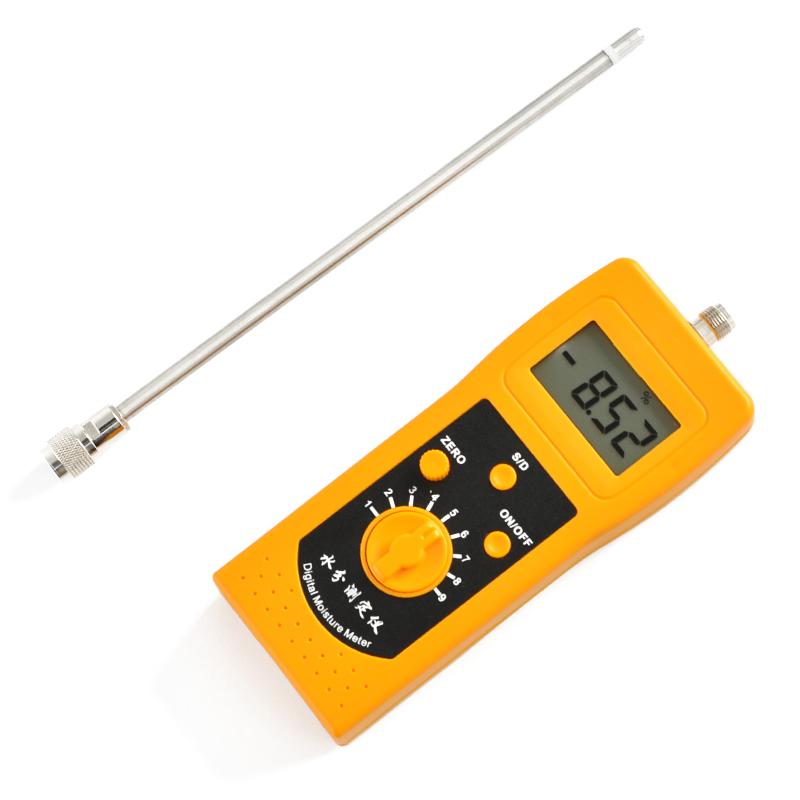

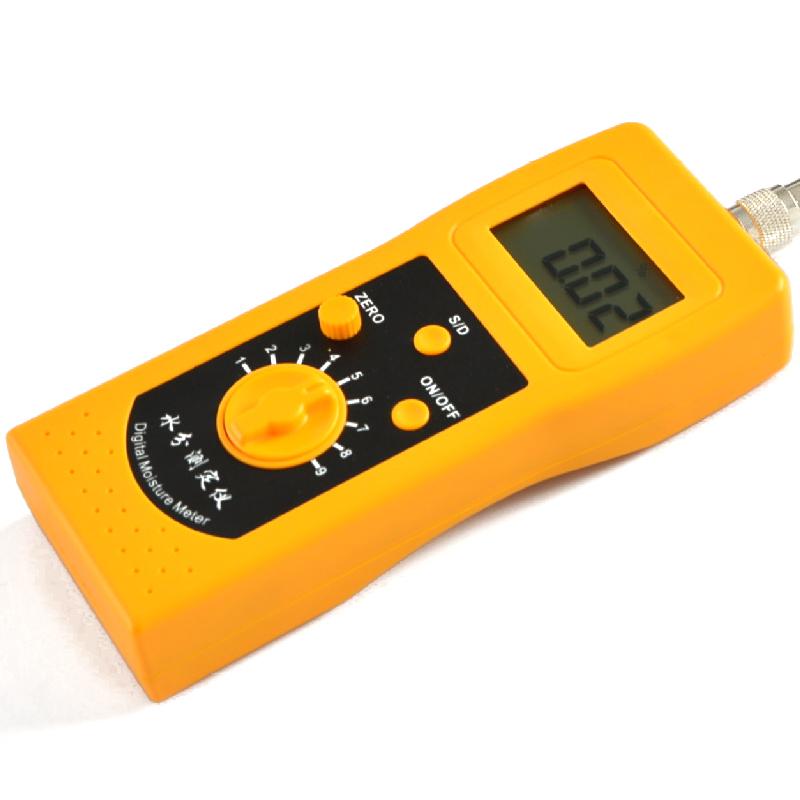

DM300A food raw material moisture meter is a high-performance digitalization moisture measuring instrument launched by SINOGAGE. It adopts the principle of high frequency, integrated design of Sensor and main body, and is equipped with multi-gear measurement of food filling, dumpling noodles, bean paste filling, moon cake filling, chili sauce, sweet potato powder, cake and other food raw material moisture. The instrument has the characteristics of wide measurement range, high accuracy, clear display, rapid measurement, stable performance, small size and light weight, suitable for on-site rapid detection and use.
Features
1. Using international mainstream technology and a variety of imported chips, stable performance and good quality
2. Sensor design with exceptional penetration capability
3. Proprietary Sensor technology provides a wide working interval for inserting measurements and displaying them quickly
4. Multi-gear setting can measure moisture of different substances
5. Backlit LCD display, measurement reading is not affected by rays of light
6. Adopt low-power technology for low power consumption
7. Compact instrument design and compact structure
Principle
The instrument adopts high-frequency electromagnetic wave induction measurement principle, and realizes the detection of food raw material moisture through high-frequency scanning, and the scanning depth can reach 50mm.
Applications
Food stuffing, dumpling noodles, bean paste stuffing, moon cake stuffing, chili sauce, sweet potato flour, cake-like moisture
Standards
International professional technical standards
Steps
1. Select the appropriate measurement gear
2. Insert the Sensor into the sample to be tested
3. Read the measurement results displayed on the backlit LCD screen
Notice
• measurement range: double accuracy 0~ 2%; single accuracy 0~ 90%
• Ambient Temperature: -5~ 60 ℃
• environment humidity: < 85% RH (no condensation)
• Power frequency: 9V (6F22 type laminated battery)
• Avoid use beyond the specified environment conditions
