Overview

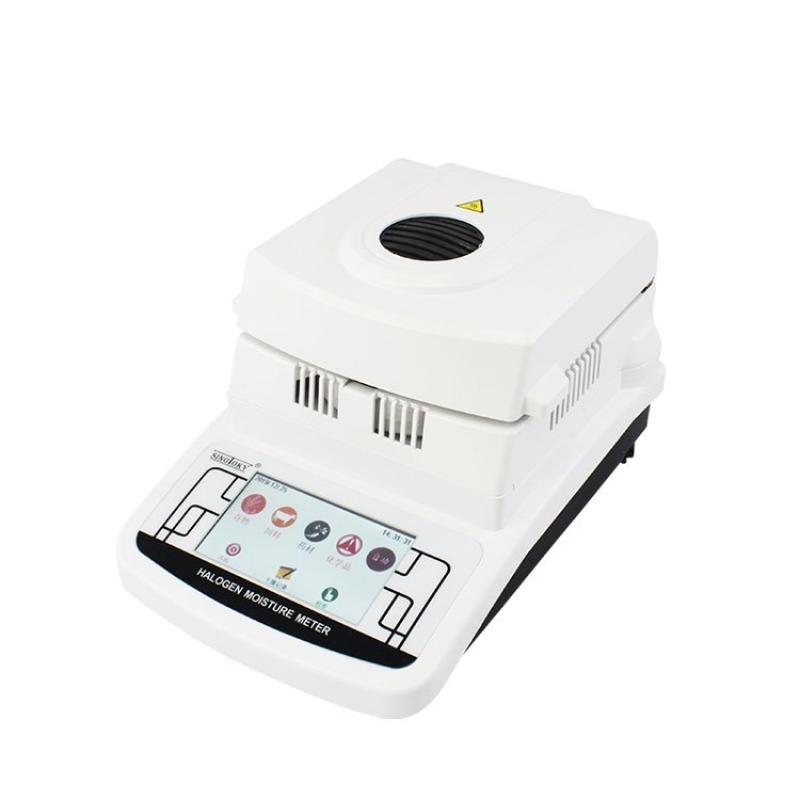

MS105 Halogen moisture meter is a fast moisture meter of SINOGAGE brand. It adopts a color TFT large-screen Touchscreen design and can be widely used in plastics, chemicals, food, grain, feed, seeds, rapeseed, tea, and Spinning & weaving, agriculture, forestry, paper, rubber and other industries. Production and experimental process.
Features
1. Color TFT large-screen Touchscreen, providing rich weighing and moisture display information for easy reading.
2. Can calibrate weight, temperature, clock, with manual, timing, automatic measurement mode, heating end buzzer prompt.
3. The use of high-mass halogen lamps, rapid heating, uniform heating, rapid sample testing, the general sample can be completed in a few minutes.
4. High Accuracy Thermal Insulation Sensor is used to collect data and temperature reliably, which can effectively ensure the authenticity and accuracy of sample data.
5. Built-in R232 output interface, can be connected to computers, printers and other external devices.
Principle
The MS105 Halogen moisture meter heats the sample with a halogen lamp, collects weight and temperature data with a High Accuracy Insulated Sensor, and combines it with a Touchscreen control system for rapid moisture determination. The heating temperature range is from RT + 60 ° C to 200 ° C, with adjustable timing and automatic mode to ensure accurate calculation of sample moisture content.
Applications
Plastics, chemicals, food (surimi, dehydrated vegetables, meat and aquatic processing, noodles, flour, biscuits, mooncakes, etc.), grain, feed, seeds, rapeseed, tea, Spinning & weaving, agriculture and forestry, paper, rubber
Steps
1. Turn on the instrument and use the color TFT Touchscreen to set the parameters.
2. Select the measurement mode (manual, timed or automatic).
3. Place the sample on the pan and start the heating process.
4. After the heating is over, the buzzer prompts to read the results such as moisture and dry weight content.
5. Optionally connect external devices such as computers or printers to output data.
Notice
• Ensure sample weight ≥ 2g to obtain accuracy ≤ 0.5%.
• The heating temperature range is controlled at RT + 60~ 200 ° C to avoid over-limit use.
• Timer Range is set from 0 to 99 minutes, so choose the end method reasonably.
• Clean the pan after use and keep the instrument drying and ventilated.
When connecting external devices, check RS232 interface compatibility.
