Overview

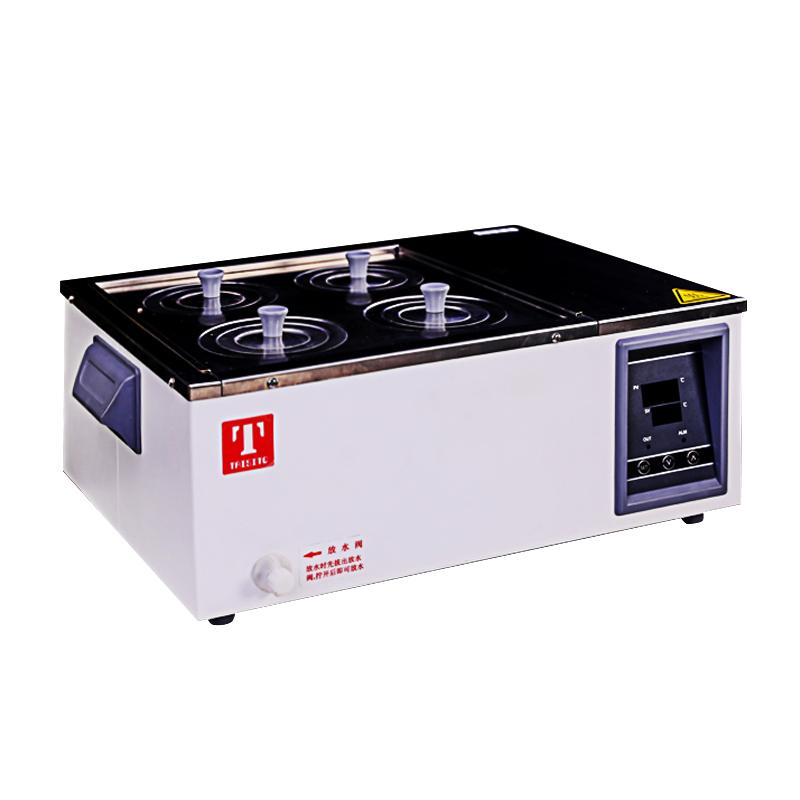

TAISITE SYG-1-1 Electrically-heated thermostatic water bath is a device for precision thermostatic and auxiliary heating, using natural water convection heat transfer method, Temperature range RT + 5~ 100 ℃, suitable for laboratories and other scenes that require precise temperature control.
Features
1. Stainless steel liner, corrosion resistance and easy cleaning
2, PID control technology, precise temperature control, Temperature Fluctuation +/- 0.5 ℃
3. Easy to operate, support fixed-value operation, regular operation and automatic stop function
4. Dedicated function keys to achieve temperature setting
5. Auxiliary menu provides over-rise alarm, deviation correction and menu lock function
6. Has patent number ZL03348684.0
Principle
The device heats the water in the Tank through a stainless steel heating tube, uses natural water convection to achieve heat transfer, and precisely adjusts the temperature through the PID Control system to ensure uniform and stable temperature in the Tank.
Applications
Precision thermostatic, auxiliary heating
Standards
Patent number: ZL03348684.0
Steps
1. Use the touch button to set the desired temperature
2. Select the operation mode: fixed-value operation or regular operation
3. Set the timing time (0 to 999 minutes)
4. Start the device and start working
5. The equipment can automatically stop running according to the settings
Notice
• Power supply voltage AC220V before use
• Note that the maximum load-bearing Tank is 5kg
• Pay attention to the over-rise alarm prompt during use
• Can prevent misoperation through menu lock function
• Regularly check the operating status of the equipment
