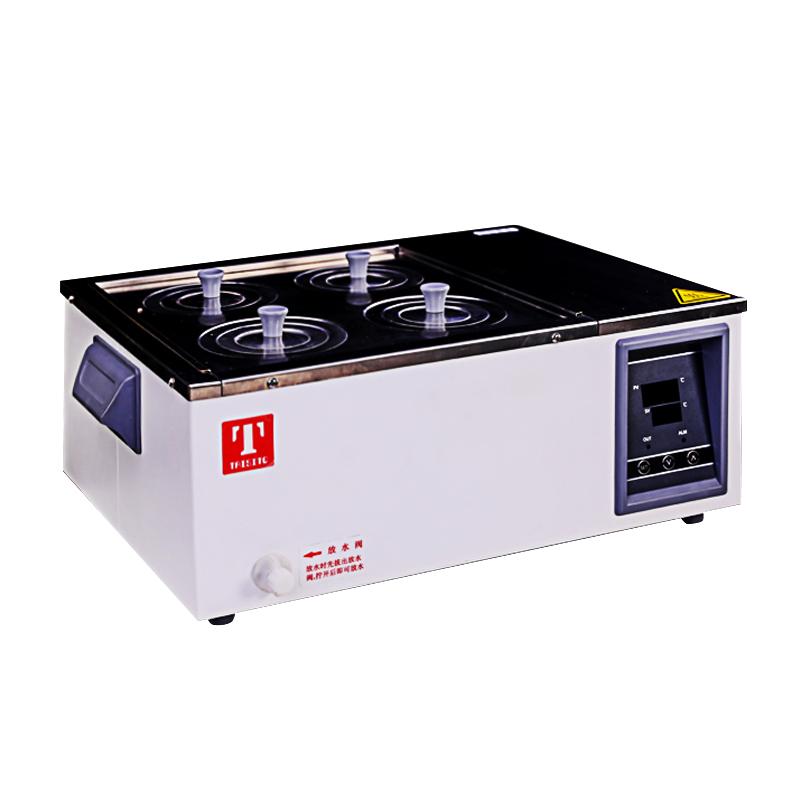

TAISITE SYG-1A-1 Electrically-heated thermostatic water Bath PID temperature control +/- 0.5 ℃ fluctuation stainless steel liner

Name: TAISITE SYG-1A-1 Electrically-heated thermostatic water Bath PID temperature control +/- 0.5 ℃ fluctuation stainless steel liner
Brand: TaiSiTe
SKU: NB029128

Please contact customer service

Using stainless steel heating tube and polyurethane insulation material, Temperature control accuracy of +/- 0.5 ℃, support 0-999 minutes timing and over-rise alarm safety function.

Model

SYG-1A-1

Get Quote

Category : Water Bath

Brand : TaiSiTe

SKU : NB029128

Service :The delivery and service By NBCLab.Com

Overview

TAISITE SYG-1A-1 Electrically-heated thermostatic water bath is a laboratory device for precision thermostatic and auxiliary heating. Stainless steel liner and PID control technology ensure precise and stable temperature control.

Features

1. Stainless steel liner 2. PID control, accurate temperature control 3. Convenient operation, support fixed-value operation, regular operation and automatic stop 4. Dedicated function keys to achieve temperature setting 5. Auxiliary menu provides over-rise alarm, deviation correction and menu lock function 6. Has patent number ZL03348684.0

Principle

Heating power is adjusted precisely by PID control algorithm to keep the temperature in the tank stable at the set value.

Applications

Precision thermostatic, auxiliary heating

Standards

Patent number ZL03348684.0

Steps

1. Use the touch button to set the temperature 2. Select fixed-value operation or timing operation mode 3. The equipment automatically runs until the set time or temperature and then stops

Notice

• Power supply voltage meets AC220V requirements before use • Pay attention to the over-rise alarm function to avoid temperature exceeding the limit • Menu lock function prevents misoperation • Regularly check the temperature sensor and Tank status

number of holes
single hole
Heating mode
Natural water convective heat transfer
Temperature Range
RT+5~100℃
Temperature resolution
0.1℃
Temperature Fluctuation
±0.5℃
Temperature Uniformity
±1.0℃
Tank material
stainless steel
Box material
Cold rolled steel plate, surface resistant painting
heat insulation material
polyurethane
heater
Stainless steel heating tube
Rated power
0.4Kw
Temperature control mode
PID
Temperature setting method
Tap the button to set
Temperature representation
Measuring temperature display: 3-digit digital upper display, setting temperature display: 3-digit digital lower display
Timer Range
0~999min
run function
Fixed value operation, regular operation, automatic stop
Program Mode
optional
Additional features
Deviation correction, menu button lock, power outage compensation, power outage memory
temperature sensor
CU50
safety device
Overrise alarm
Tank Size
168*168*120mm
Dimension
357*220*198mm
packing Size
380*290*240mm
Tank Volume
3.4L
Shelf load bearing
5kg
Shelf layer
1st floor
Power supply Voltage
AC 220V/1.8A 50/60Hz rated current
Net weight
3.5Kg
gross weight
3.9kg

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
