Overview

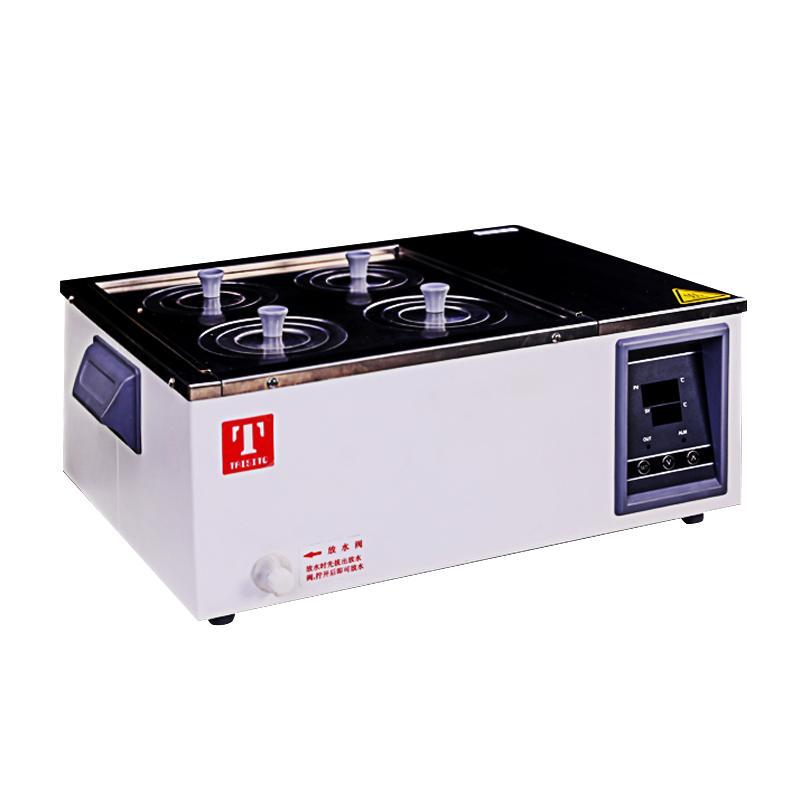

TAISITE SYG-1A-4 Electrically-heated thermostatic water bath is a precision thermostatic and auxiliary heating equipment, using natural water convection heat transfer method, Temperature range RT + 5~ 100 ℃, with precise temperature control and convenient operation function.
Features
1. Stainless steel liner
2. PID control, accurate temperature control
3. Convenient operation, fixed-value operation, regular operation, automatic stop
4. Dedicated function keys to achieve temperature setting
5, auxiliary menu, achieve over-rise alarm, deviation correction, menu lock
6. Patent number: ZL03348684.0
Principle
Through natural water convection heat transfer mode to achieve thermostatic control, PID temperature control technology to ensure temperature stability, stainless steel heating tube to provide uniform heating, CU50 temperature sensor real-time monitoring of temperature changes.
Applications
Precision thermostatic, auxiliary heating
Standards
Patent number: ZL03348684.0
Steps
1. Use the touch button to set the temperature
2. Select fixed-value operation or timing operation mode
3. Set Timer Range 0~ 999 minutes
4. Start the equipment to run automatically
5. The device automatically stops according to the settings
Notice
• Pay attention to the over-rise alarm function to ensure safe operation
• Use the menu lock function to prevent misoperation
• Regularly check temperature sensor accuracy
• Power supply voltage meets AC220V requirements
• Note that Tank bearing capacity does not exceed 5kg
