Overview

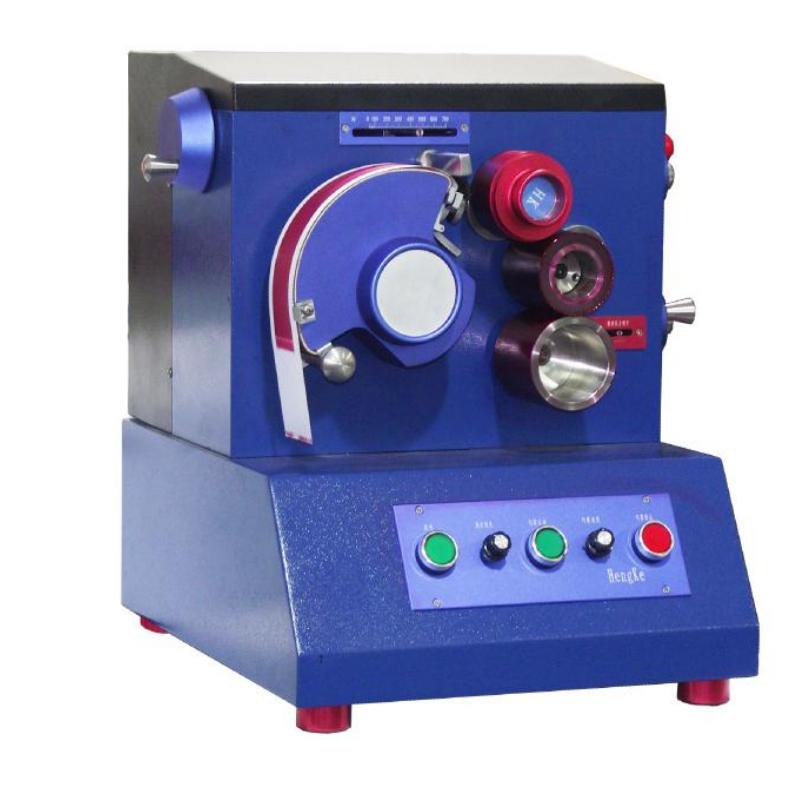

Offset plate inks Spot Color Proofer (separate type) IMT-IGT309A is a proofing equipment designed to imitate the printing press Working Principle, with adjustable pressure and a wide range of substrates. The equipment accurately predicts inks Hue through standard proofing, and determines the inks ratio by comparing the master standard Color, so that the color scheme work can be converted to pre-press work. It is suitable for Encasement printing, papermaking, inks production and scientific research institutions.
Features
1. Support inks Spot Color Proofing, inks transfer rate and ink layer thickness calculation functions
2. Adopt a separate transfer and cleaning system, which can be easily removed for cleaning
3. Mid-section ink transfer method to reduce lateral uniformity deviation
4. Automatic ink leveling function, adjustable ink leveling time
5. Support a variety of color bar width options (25mm, 35mm, 50mm)
6. Suitable for offset plate inks and UV inks
7. Proofing pressure and speed can be adjusted to adapt to different material thicknesses
Principle
The Proofer imitates the printing press Working Principle, distributes inks evenly through a uniform ink system, and transfers inks to the substrate by means of separation and direct transfer. The inks Hue is predicted by standard proofing, and the correct ratio is determined by comparing with the master standard Color to realize the prepress of the color scheme work.
Applications
Encasement printing production, paper production enterprises, inks production enterprises, scientific research institutions
Standards
GB/T 8941、ISO2813、ISO 2469、ISO 9416、GB/T 7973、GB/T 7974、GB/T12911、GB/T7706、ASTM D 6531
Steps
1. Choose the appropriate disc and color bar width according to your needs
2. Adjust the ink leveling time to the desired value
3. Set proofing pressure and speed parameters
4. Use mid-section ink extraction to obtain inks
5. Start the automatic inking and proofing process
6. Compare the proofing results with the master standard Color
7. Determine the correct inks ratio and use it for mass production
8. Use a separate cleaning system to clean the equipment after use
Notice
• Select the appropriate plate and material thickness range according to specific needs
Proofing pressure and speed need to be adjusted according to actual needs
• When cleaning, separate parts should be easily removed for cleaning
• Confirm whether the inks type is suitable for the device before use
• Pay attention to the safe use of the equipment when operating
