Overview

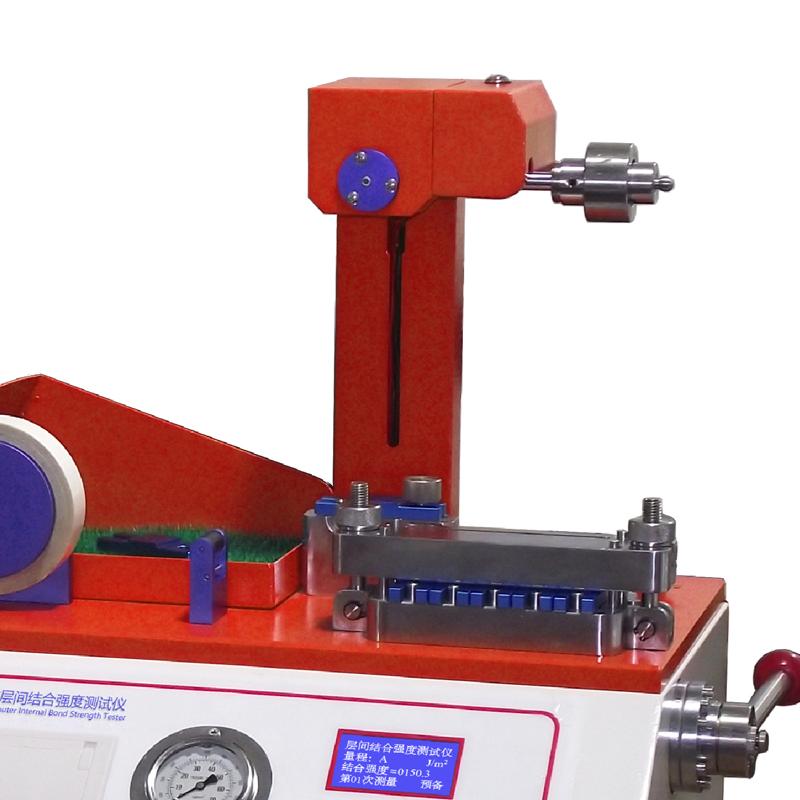

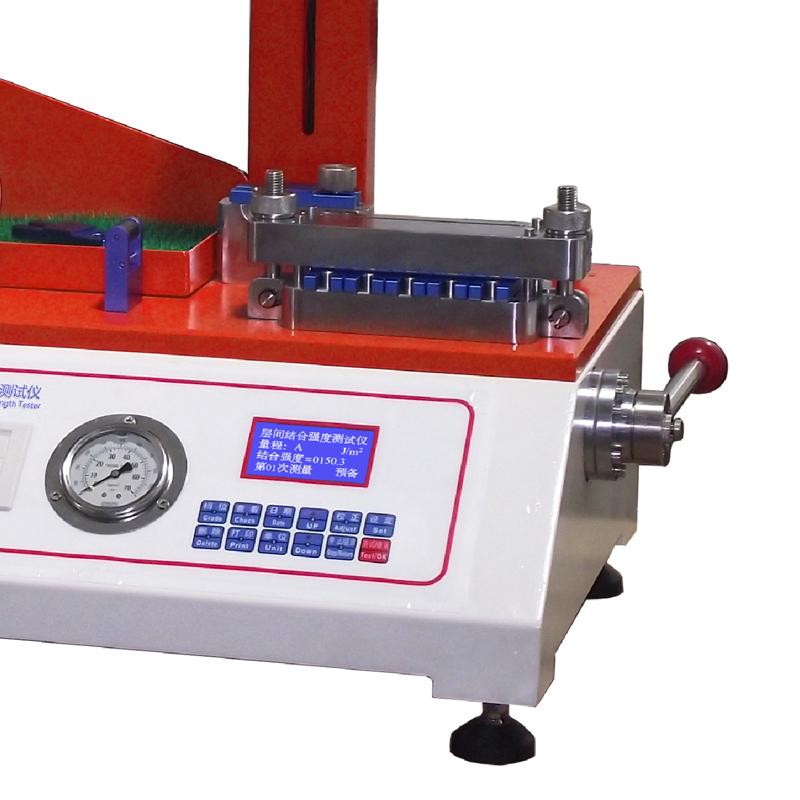

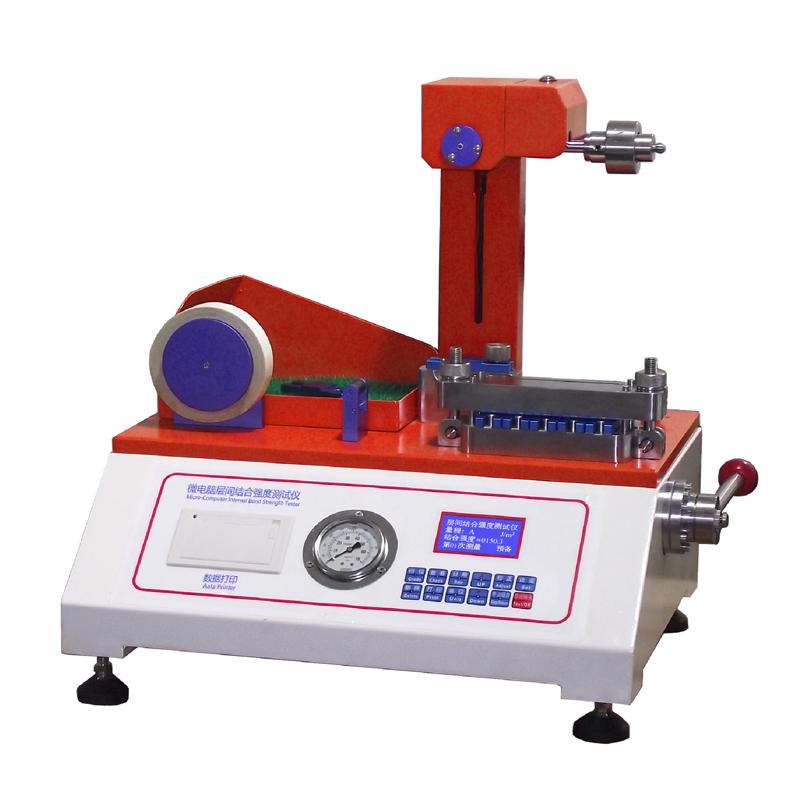

IMT-CJ01 Interlayer bond strength tester is a professional instrument used to detect the Internal Bond Strength or Internal Bond Strength of sheet materials such as paper, Cardboard, paper composite and film composite. The instrument supports a variety of standard tests, with High Accuracy measurement and automated operation.
Features
1. Adopt two gravity overlapping structure to ensure measurement accuracy
2. Fully automatic release mode, easy to operate
3. Equipped with independent refueling and exhaust windows for easy maintenance

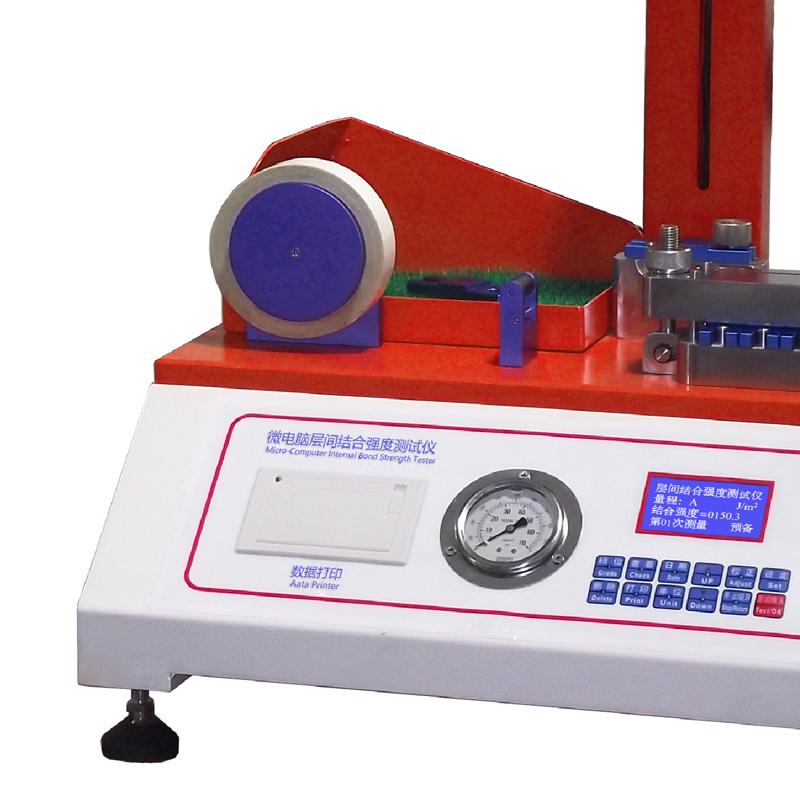

The 4.3.2-inch LCD screen displays test data in real time
5. Optional computer connection software and printout function
6. Support self-calibrating, Improve Test Reliability
7. The sample holding force is adjustable from 0 to 600N, suitable for different materials
Principle
The instrument automatically releases and measures Internal Bond Strength by applying a specific pressure (e.g. 690 +/- 21kPa or 1034 +/- 34kPa) and an Impact angle of 90 °, using double-sided adhesive force (> 486N/m). The oil circuit system ensures pressure stability, and the secondary gravity structure guarantees Measurement accuracy. Results are displayed in J/m ² or lbf/in ² units.
Applications
Paper, Cardboard, paper composite, film composite
Standards
GB/T 26203、ASTM T569 pm-00
Steps
Prepare a 25.4 * 25.4mm sample to ensure that the parallelism is less than 0.1mm
2. Adjust the sample holding force to the required range (0~ 600N)
3. Select the common sample pressure (690 +/- 21kPa or 1034 +/- 34kPa)
4. Use double-sided tape to secure the specimen
5. Start the fully automatic release function for testing
6. Read real-time data through the LCD screen
7. Optional connection to computer software or print output results
Notice
• The thickness of the sample shall not exceed 1.5mm.
• Ensure that the parallelism of the sample is less than 0.1mm to ensure test accuracy
• Regularly check the oil circuit system for refueling and venting through a separate window
Self-calibrate before use to maintain instrument accuracy
• Avoid operating in conditions beyond the Measurement range (A file)
• Double-sided adhesive force should be kept greater than 486N/m
• Pay attention to safety during operation to prevent pinch injuries
