Overview
The AMITTARI ARM-216 custom reflectance instrument is a hiding ratio instrument with 450nm Illuminant added to the original ARM-216 reflectance instrument. It can measure the transparency of various coatings, oils, films, plastic products, organic products, and the reflectance of solid surfaces (such as stereoscopic film screens). It is widely used in mass or standardized inspection and management of products in coatings, pigments, inks, plastics, printing and dyeing, leather, film projection and other industries.
Features
Technical indicators meet the requirements of international standards ISO3906-1980 (E) for reflectance, in line with ISO3906-1980 (E), ISO3905, ISO2814 international standards and GB/T13452.3-92, GB9270-88, GB5211.17-88 national standards.

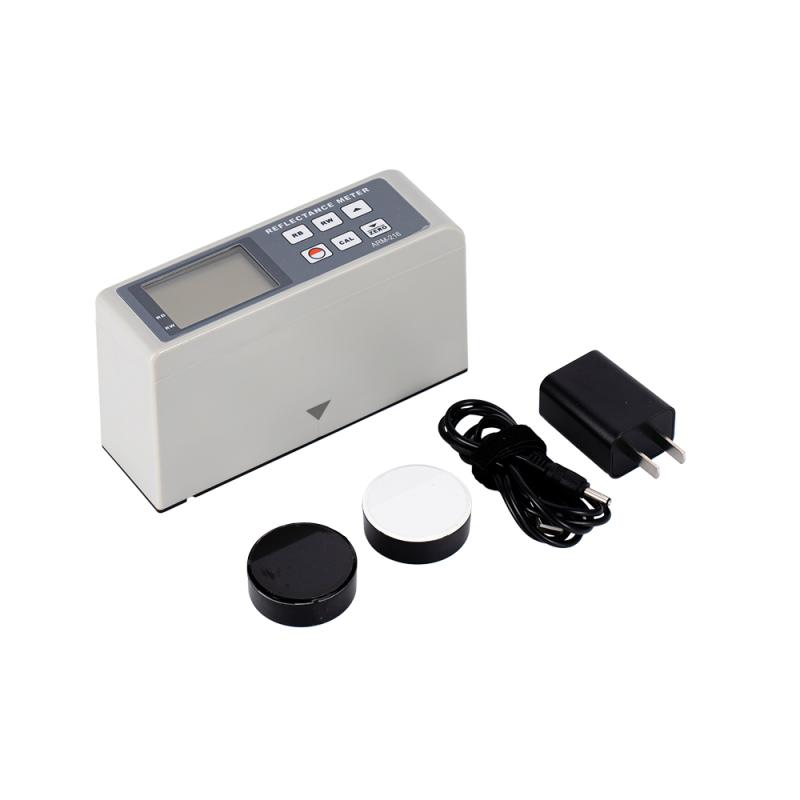

2. The instrument is composed of a main unit, a standard board (one in black and white), and a working ceramic board (one in black and white).
3. When the reflected light of the sample acts on the surface of the Photocell, the photovoltaic cell generates an electrical signal input to the DC amplifier for amplification, and the reading is displayed.
4. Use USB data cable output to communicate with PC.
5. Provide Bluetooth data output selection.
Principle
When the reflected light of the sample acts on the surface of the Photocell, photovoltaic cell generates an electrical signal, which is input to the DC amplifier for amplification and is read and displayed.
Applications
Paints, pigments, inks, plastics, dyeing, leather, film screening
Standards
ISO3906-1980 (E)、ISO3905、ISO2814、GB/T13452.3-92、GB9270-88、GB5211.17-88
Steps
The information does not provide specific operation steps.
Notice
The information did not provide specific precautions.
