Overview

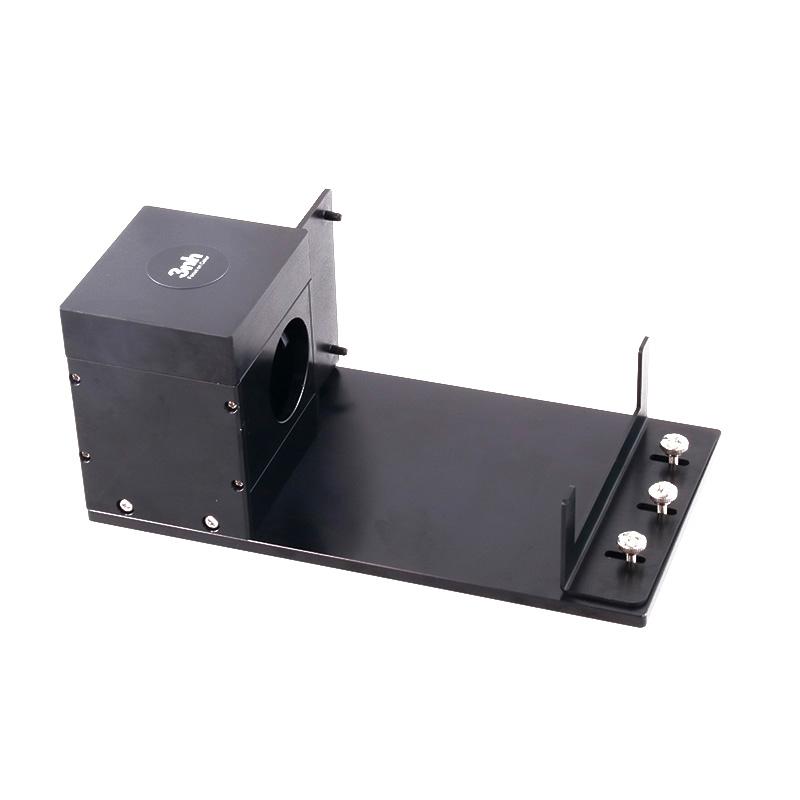

YS Series Multifunctional Test Kit is an Optional accessory of YS Series Colorimeter, which can be used for reflection color measurement of high concentration liquid Reagents, sauces (such as ketchup, coatings), powders (such as coffee) and other samples.
Features
1. Optional accessories specially designed for YS series Colorimeters
2. Support reflection color measurement of high concentration liquid Reagents
3. Support the reflection color measurement of sauces (such as ketchup, paint)
4. Support the reflection color measurement of powder (such as coffee) and other samples
Principle

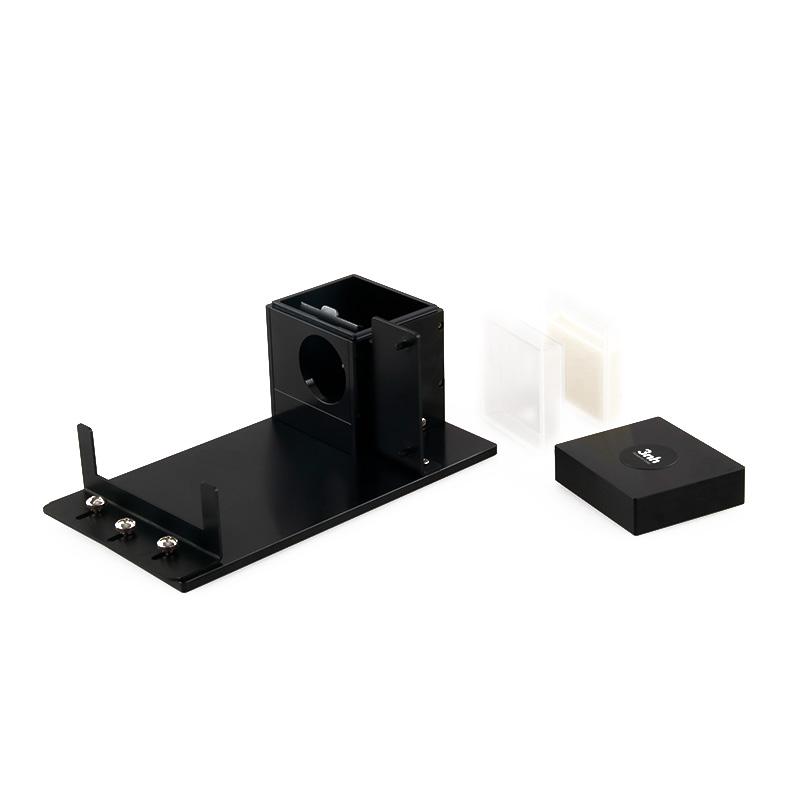

YS multifunctional test kit is used in conjunction with YS series Colorimeter, by loading the sample to be tested into the Cuvette and placing it on the bracket, after ensuring that the interior of the Cuvette is an all-black environment, the color reflection measurement is carried out by the colorimeter.
Steps
1. YS series Colorimeter should be corrected for black and white boards

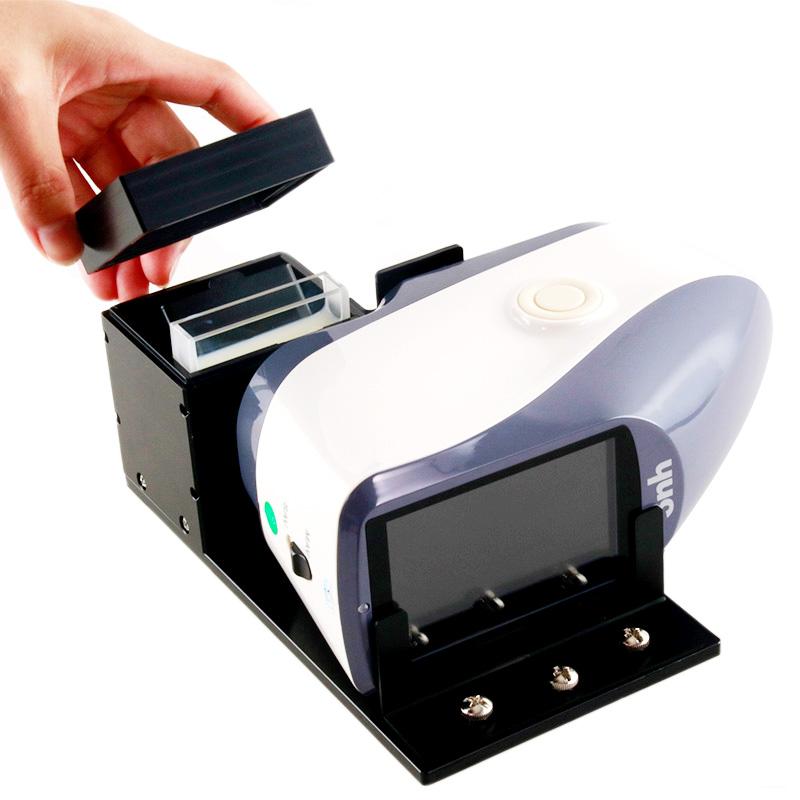

2. Place the YS series colorimeter, connect the measurement port with the measurement port of the bracket, align the base baffle pin with the baseplate reference hole of the colorimeter, and tighten the screws after the push plate is against the colorimeter
3. Put the Cuvette loaded with the sample to be tested into the bracket. The Cuvette is attached to the measurement port of the instrument and pressed by the swirling/spinning platen to ensure that the liquid height is greater than the matching height of the test caliber
4. Cover the cover plate to ensure that the inside of the Cuvette is a fully black environment
5. Use YS series colorimeter for sample reflection color measurement
Notice
• Before use YS Series Colorimeter must be black and white board correction
• Check whether the colorimeter is loose after installation. If it is loose, tighten the screws again.
• The height of the liquid in the Cuvette should be greater than the matching height of the test caliber (the height of the sample reaches more than half a cup)
• The cover must be closed to ensure that the inside of the Cuvette is an all-black environment
