Overview

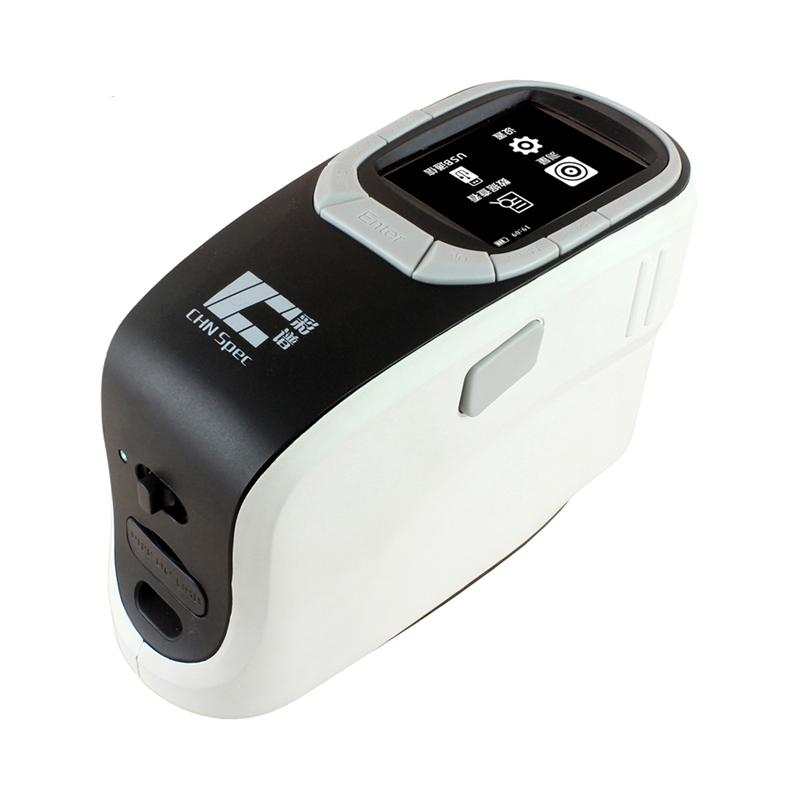

The CHNSPEC CS-600B Colorimeter is a Handheld Colorimeter, available in 4mm and 6mm measurement diameters. It can not only measure color differences but also analyze colors. It has camera viewing function, large display screen intuitive display measurement value, Data storage and personalized parameter setting function. The instrument is a novel Portable Colorimeter, which meets the color needs of various industrial industries and has obtained national first-class metrology authentication. It has superior performance and high cost performance. It is widely used in factory and laboratory field operations to achieve accurate color measurement in quality control of almost all Applications.
Features
1. Composite LED Illuminant
2. Repeatability: Standard Deviation Within 0.05
3. Widely used in laboratories, factories, and construction sites
4. Portable design, large capacity rechargeable lithium battery, long service life, and DC power supply
5. Appearance design novel and beautiful, simple operation
6. With camera viewing function, clearly observe the measurement area to prevent measurement deviation
7. Large storage space, can store 100 sets of master standards, with a maximum of 200 test records under each set of master standards
8. Pre-positioning board setting, more convenient to calibrate, no need for standard blackboard whiteboard
9. Transfer data through the USB interface, which can be operated on the PC software
10. Dual Measurement mode: SCI and SCE mode measurement can be performed simultaneously and the results can be displayed
11. Powerful built-in software, including all necessary color equations, Standard light sources and industry application indicators
12. Bilingual Chinese and English Operating system
Principle
CHNSPEC CS-600B Colorimeter uses d/8 illumination mode (scattering Illuminant, 8 degree observation angle), equipped with dual optical path array Sensor and CLEDs full-band equalized Led Illuminant. The instrument can simultaneously perform SCI (including mirror reflection) and SCE (eliminating mirror reflection) two modes of simultaneous measurement, through Light spectrum analysis technology implementation of accurate color measurement and color difference analysis.
Applications
Laboratory, factory, construction site, color quality control
Standards
National level metrology authentication
Steps
1. Boot and select Operating language
2. Locate the measurement area through the camera viewfinder function
3. Select Measurement mode (SCI or SCE)
4. Perform color measurement
5. View and analyze measurement results
6. Storage of measurement data
7. Transfer data to PC software via USB interface
Notice
• Operating Ambient Temperature should be in the range of 0-45 ℃
• The relative humidity should be kept at 80% or less (at 35 ° C)
• Avoid water condensation
• Storage Ambient Temperature should be in the range of -25~ 55 ℃
• Regularly calibrate instruments to ensure Measurement accuracy
• Powered by a dedicated DC adapter or rechargeable lithium battery
• Ensure that the measurement area is clean and pollution-free before measurement
