Overview

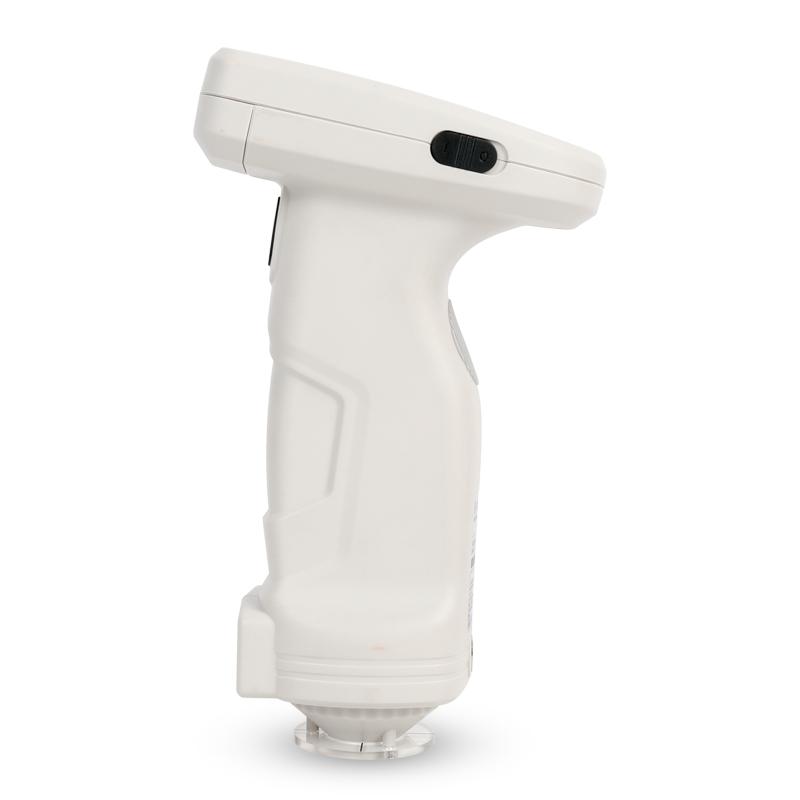

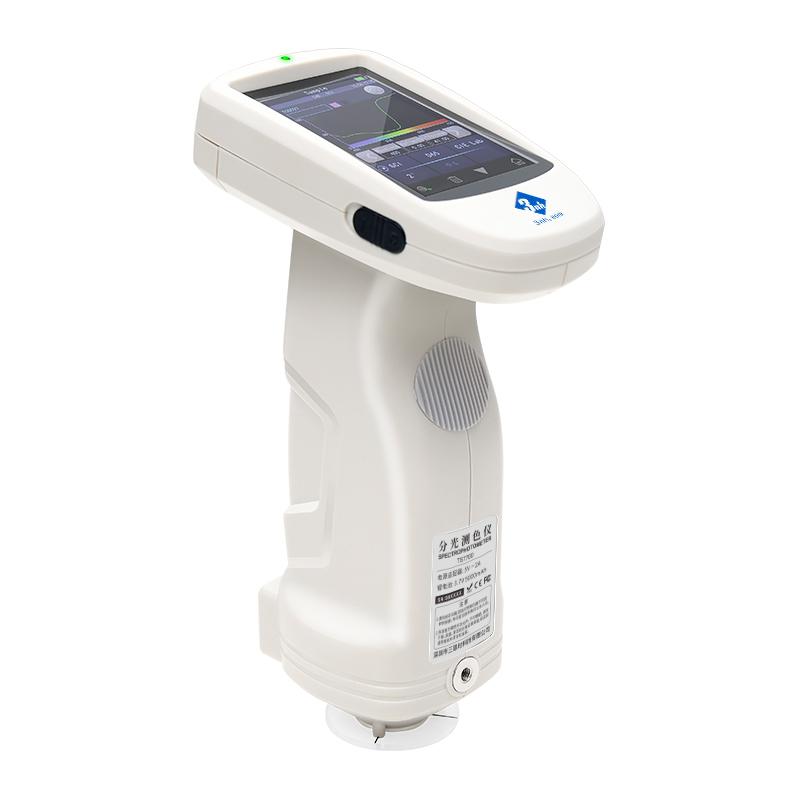

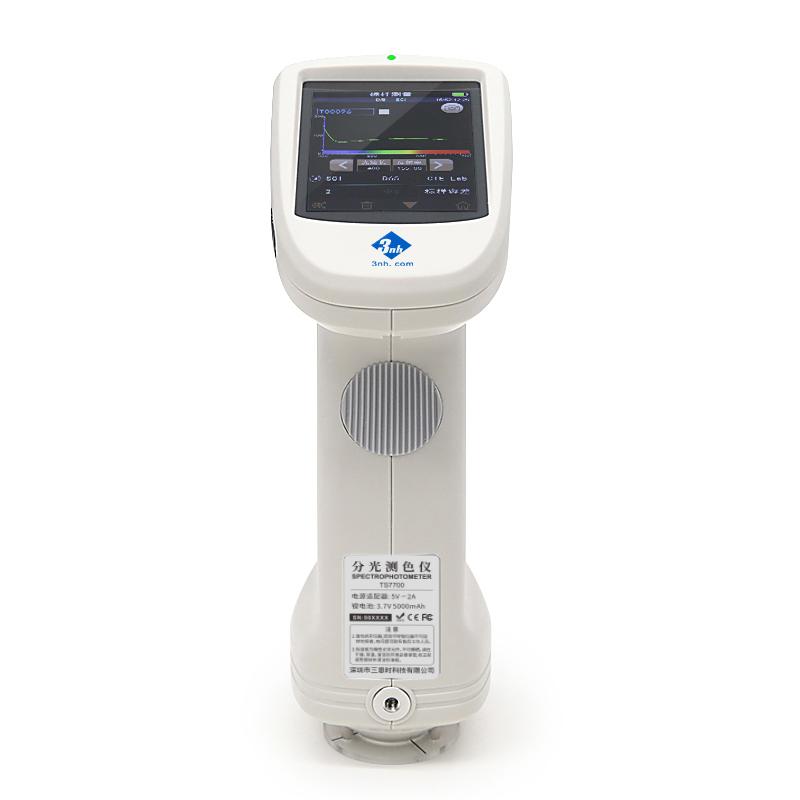

The TS7700 Colorimeter uses a 1000-wire precision blazing grating as the spectroscopic element, a silicon Photocell with a large photosensitive area, a photovoltaic cell array as the detector, and a full Light spectrum LED as the Illuminant. Optical inspection resolution is less than 10nm. Under the lighting conditions of D8 geometrical optics, it can accurately measure the SCI and SCE reflectance data of the sample/fluorescent sample, realize accurate Color transfer and color difference quality control, and is widely used in plastic electronics, paints and other industries.
Features
1. D/8 geometrical optics structure, in line with CIE No.15, GB/T 3978 and other standards
2. High Life Low Power Full Light spectrum LED Illuminant, including UV/UV exclusion
3.The diameter of φ 8/4mm can be switched arbitrarily, and the measurement diameter of the platform/tip nozzle can adapt to multiple samples
4. Dual optical path system, Optical inspection resolution less than 10nm, simultaneous measurement of SCI, SCE Light spectrum
5. Accurate measurement of Light spectrum and Lab data for color scheme and Color transfer
6. High hardware configuration: 3.5-inch TFT true color screen, Capacitive Touchscreen, 1000-wire blazing grating, etc
7. USB/Bluetooth dual communication mode, wide adaptability
8. Super stain-resistant, stable standard whiteboard
9. Large-capacity storage, capable of storing more than 30,000 test data
10.2/10 Standard Observer Angle, Multiple Illuminant Modes for Color measurement
11. Camera view positioning, stable plate platform measurement positioning
12. Powerful expansion of PC-side software
Principle
The instrument uses D/8 geometrical optics, diffuse illumination, 8 ° direction reception, and the measurement of sample reflectance in the visible range through grating spectroscopy and silicon photodiode array detector. The dual-path system acquires SCI and SCE Light spectrum data simultaneously, and combines the full Light spectrum LED Illuminant to achieve High Accuracy Color Analysis and color difference calculation.
Applications

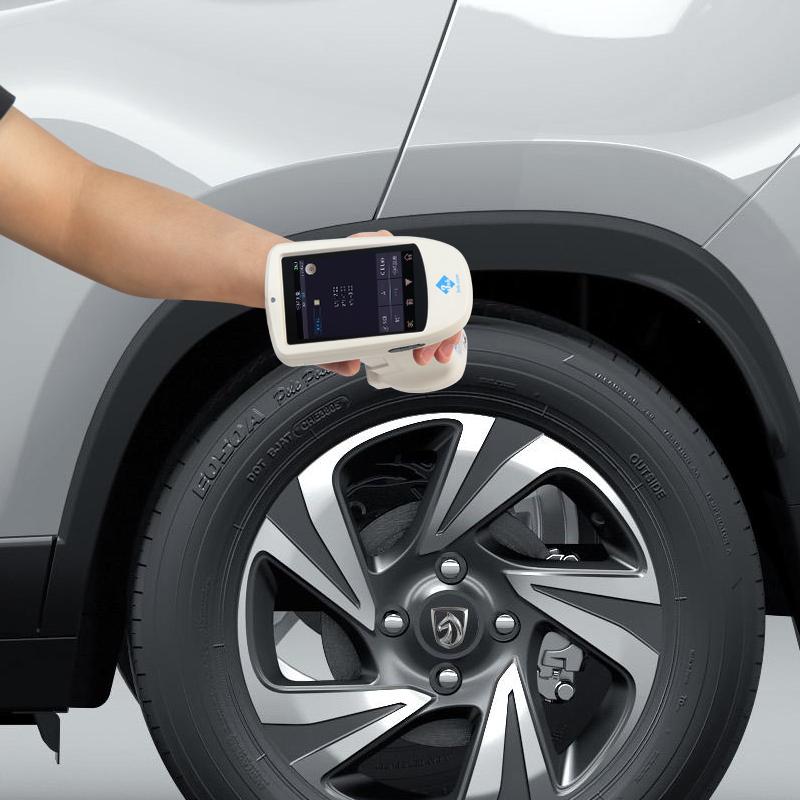

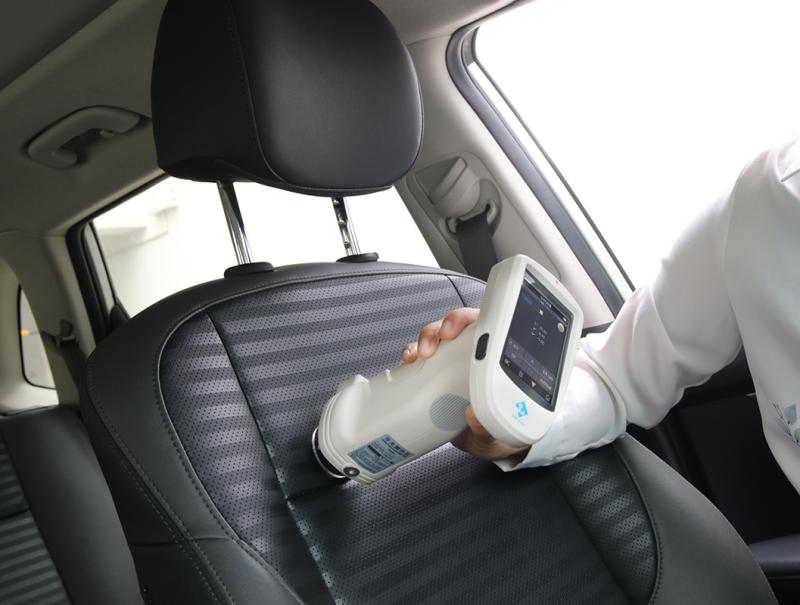

Plastic electronics, paints, Spinning & weaving, printing and dyeing, printing paper products, automobiles, cosmetics, food, scientific research institutions, laboratories
Standards
CIE No.15、GB/T 3978、GB 2893、GB/T 18833、ISO7724/1、ASTM E1164、DIN5033 Teil7
Steps
1. Turn on the power supply of the instrument and select the measurement diameter (φ 8mm or φ 4mm)
2. Position the sample through the camera or stabilizer
3. Measurement mode (single or average measurement) and observer angle
4. Start measurement, the instrument automatically acquires SCI/SCE data

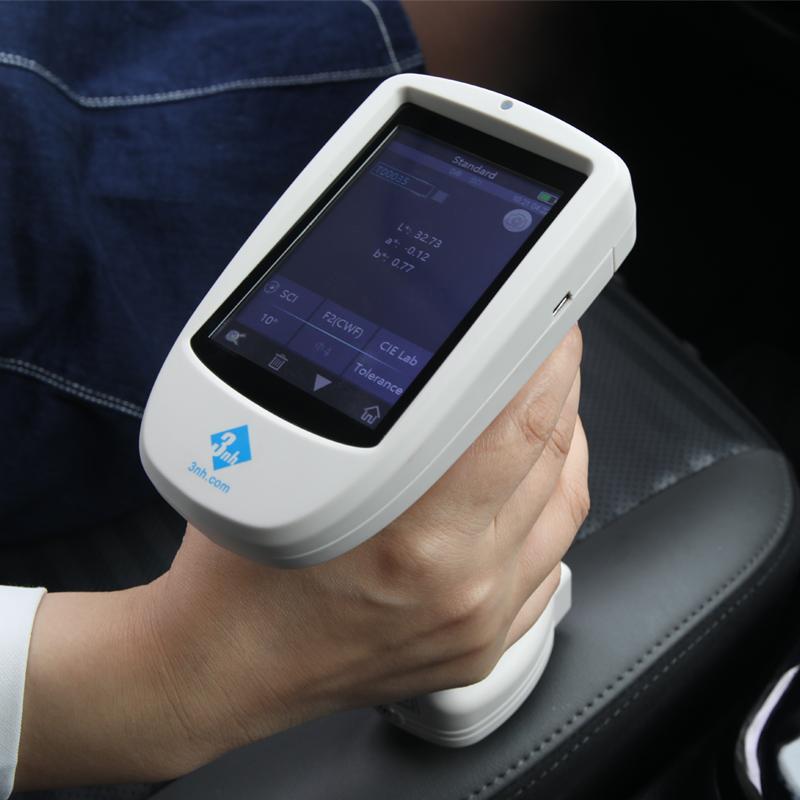

5. View display results, including Light spectrum, chromatic values, color differences, etc
6. Store data or transfer it to PC software via USB/Bluetooth for further analysis
Notice
• Operating Ambient Temperature should be 0~ 40 ℃, Humidity 0~ 85% RH, no condensation
• Storage Ambient Temperature -20~ 50 ℃, Humidity 0~ 85% RH, No condensation
• Avoid use at high altitudes (over 2000m)
• Regularly calibrate instruments to ensure Measurement accuracy
• Clean measurement caliber and standard whiteboard after use to prevent contamination
• Battery life is limited, pay attention to timely charging to maintain normal use
