Overview

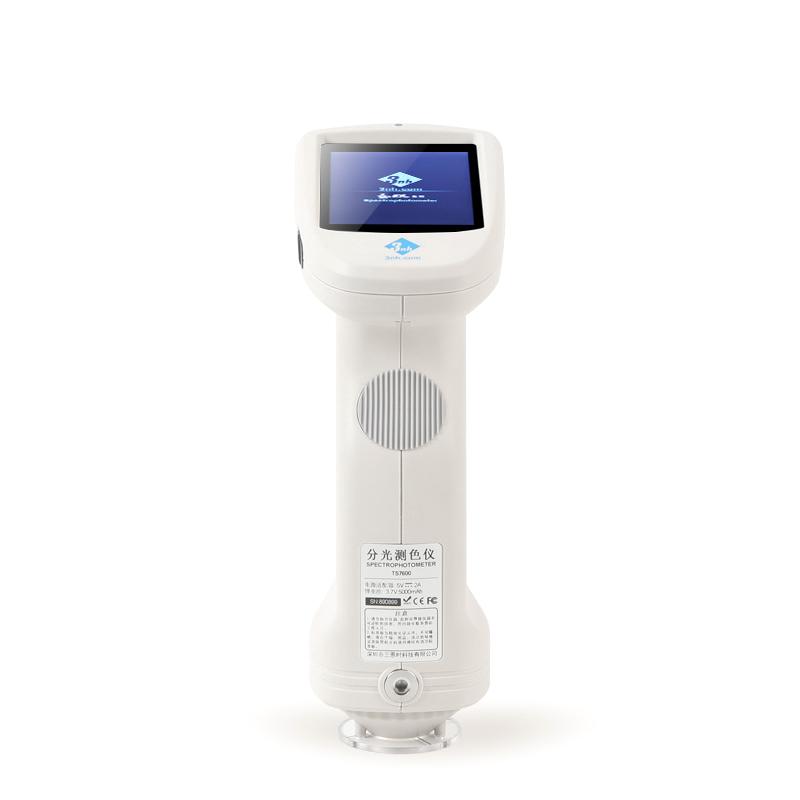

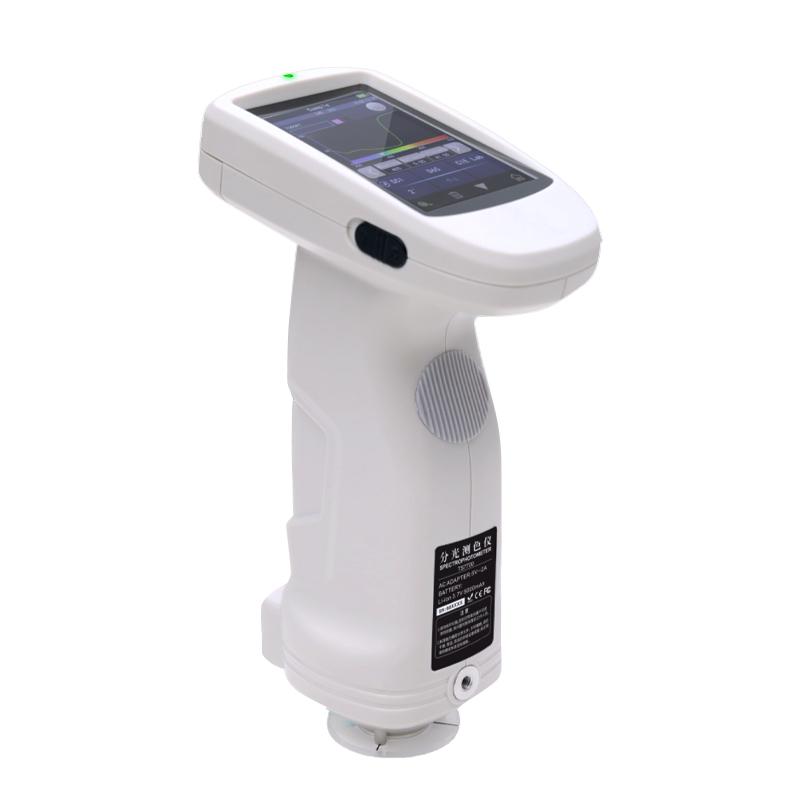

The TS7600 Colorimeter is a professional color measurement equipment using 1000-wire precision blazing gratings and silicon Photocell, photovoltaic cell array detectors. Under the lighting conditions of D8 geometrical optics, it can accurately measure the SCI and SCE reflectance data of samples/fluorescent samples, support a variety of Color space and Color difference formula, and is widely used in Color accurate transfer and color scheme system detection.
Features
1. D/8 geometrical optics conforming to international standards
2. High Life Low Power Full Light spectrum LED Illuminant

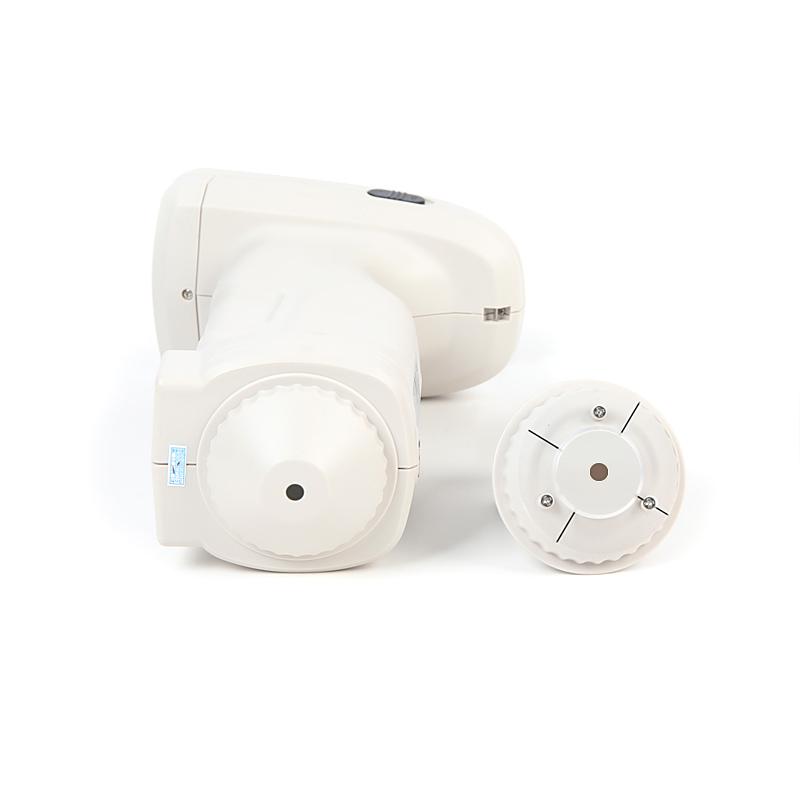

3. Customized single φ 8/4mm diameter, platform/tip nozzle measurement diameter switching is convenient
4. Dual optical path system, Optical inspection resolution in the visible range is less than 10nm, which can simultaneously measure SCI and SCE Light spectrum
5. Accurate measurement data for color scheme and accurate Color transfer

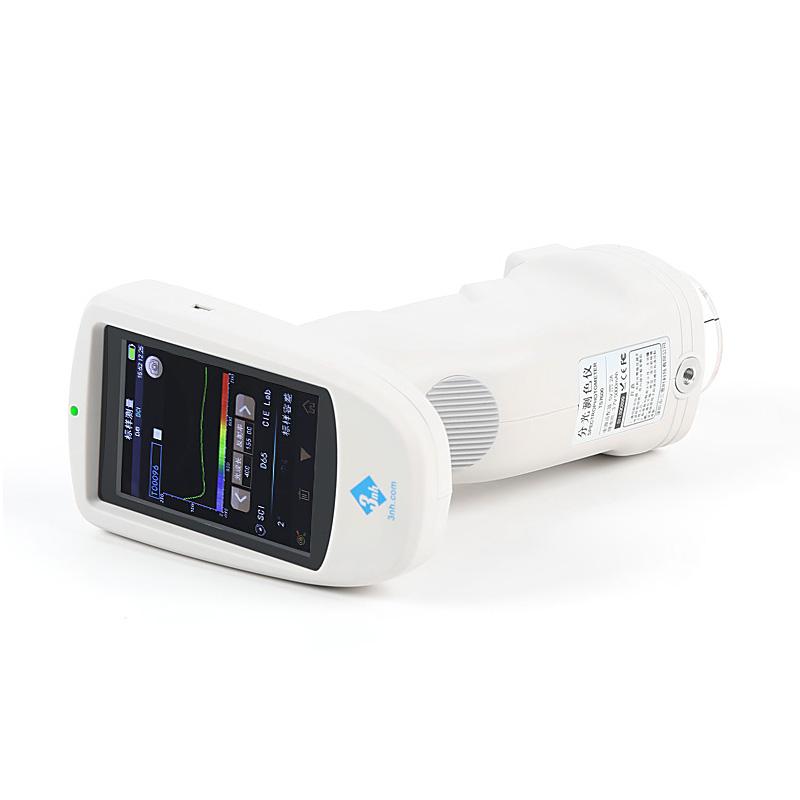

6. High hardware configuration: 3.5-inch TFT true color screen, Capacitive Touchscreen, 1000-wire blazing grating, etc
7. USB communication mode, convenient for function expansion
8. Super stain-resistant, stable standard whiteboard
9. Large-capacity storage space, capable of storing more than 20,000 test data
10.2/10 Standard Observer Angle, Multiple Illuminant Modes and Color Systems
11. Camera view positioning, stable plate platform measurement positioning
12. PC-side software has powerful functional extensions
Principle
Light spectrum signals are received through Silicon Photocell, photovoltaic cell array detector. Under D/8 geometrical optics lighting conditions, SCI and SCE reflectance data of the sample can be measured simultaneously to achieve accurate Color analysis and measurement.
Applications

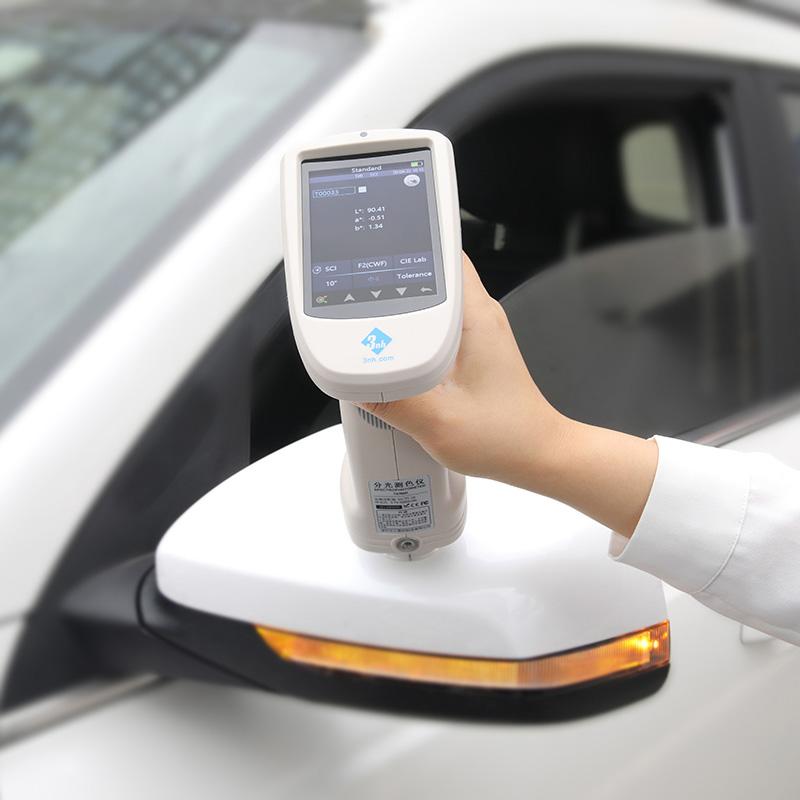

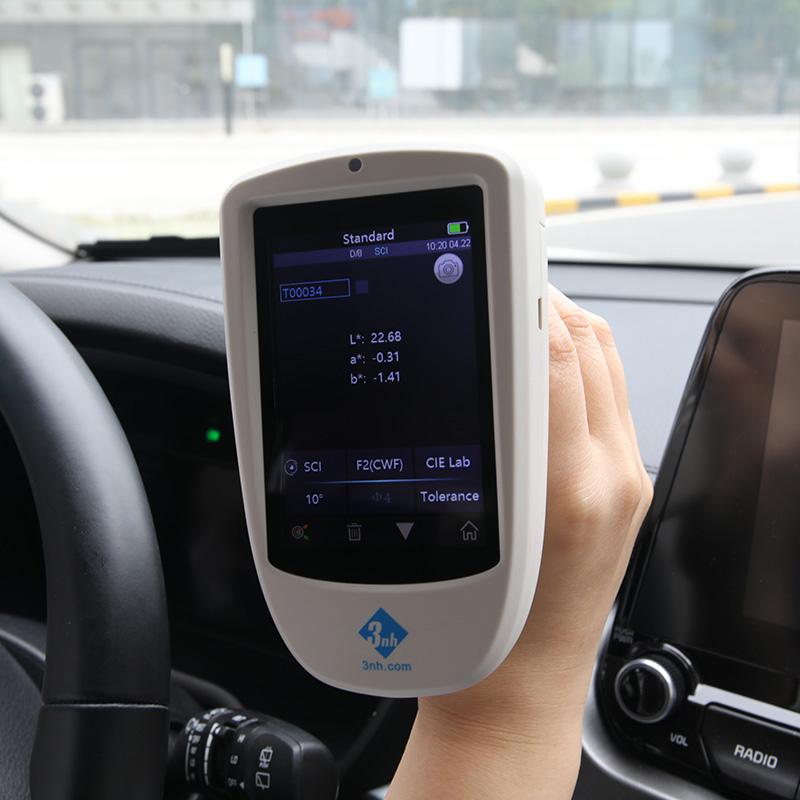

Plastic electronics, paints, Spinning & weaving, printing and dyeing, printing paper products, automobiles, cosmetics, food, scientific research institutions, laboratories
Standards
CIE No.15、GB/T 3978、GB 2893、GB/T 18833、ISO7724/1、ASTM E1164、DIN5033 Teil7
Steps
1. Connect the computer and start the device
2. Select measurement caliber (platform/tip)
3. Sample positioning through camera or stabilizer
4. Measurement mode (single measurement or average measurement)
5. Start measurement and get data
6. Data analysis and management through PC software
Notice
• Operating Ambient Temperature should be kept within the range of 0~ 40 ℃
• The relative humidity should not exceed 85% to avoid condensation
• The altitude of use should be less than 2000 meters
• Storage Ambient Temperature -20~ 50 ℃
• Avoid operating the instrument in a humid environment
• Regularly calibrate instruments to ensure Measurement accuracy
