Overview

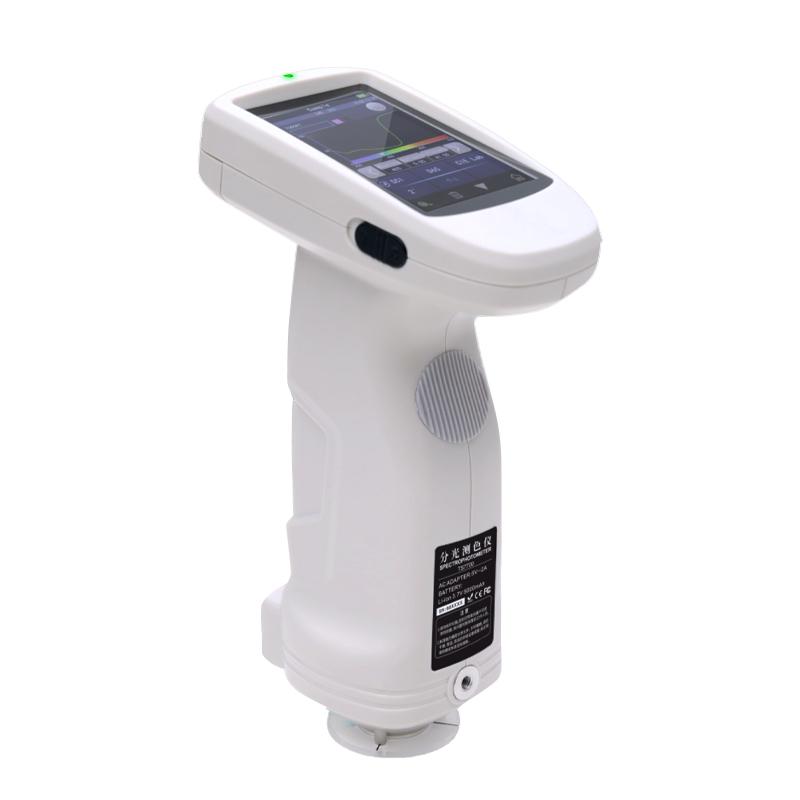

3NH TS7600 (φ 10mm) Colorimeter uses 1000-wire precision blazing grating as spectroscopic element, silicon Photocell, photovoltaic cell array as detector, full Light spectrum LED as Illuminant, Optical inspection resolution is less than 10nm. Under the lighting conditions of D8 geometrical optics, it can accurately measure the SCI and SCE reflectance data of samples/fluorescent samples, support a variety of Color spaces and Color difference formulas, realize Color accurate transfer and accurate color scheme.
Features
D/8 geometrical optics, conforming to CIE No. 15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7 standards
2. High Life Low Power Full Light spectrum LED Illuminant
3. Customized single φ 8/4mm diameter, platform/tip nozzle measurement diameter switching is convenient
4. Dual optical path system, Optical inspection resolution less than 10nm, can simultaneously measure SCI, SCE Light spectrum
5. Accurate measurement of Light spectrum and Lab data, suitable for color scheme and Color transfer
6. High hardware configuration: 3.5 inch TFT true color screen, Capacitive Touchscreen, 1000 wire blazing grating, Silicon Photocell, photovoltaic cell array detector
7. USB communication mode, easy to expand functions
8. Super stain-resistant, stable standard whiteboard
9. Large-capacity storage, capable of storing more than 20,000 test data
10.2/10 Standard Observer Angle, Multiple Illuminant Modes, Watch Color and Chroma
11. Camera view positioning, stable plate platform measurement positioning
12. Powerful PC-side software
Principle
The instrument adopts D/8 geometrical optics structure, diffuse illumination, 8 ° direction reception, full Light spectrum LED Illuminant and UV Illuminant, light spectrum is detected by planar grating splitting, and silicon photodiode array inductors. In the visible light Wavelength range 400~ 700nm, the SCI and SCE reflectance of the sample are measured at 10nm wavelength interval and 10nm Light spectrum half Bandwidth, and Color data is calculated.
Applications
Plastic electronics, paints, Spinning & weaving, printing and dyeing, printing paper products, automobiles, cosmetics, food, scientific research institutions, laboratories
Standards
CIE No.15、GB/T 3978、GB 2893、GB/T 18833、ISO7724-1、ASTM E1164、DIN5033 Teil7
Steps
1. Connect the instrument to the computer (optional)
2. Select measurement caliber (platform or tip)
3. Use the camera or stabilizer to locate the sample
4. Measurement mode (single or average measurement)
5. Start measurement, get Light spectrum and chroma data
6. Analyze data or store results through software
Notice
• Operating Ambient Temperature should be 0~ 40 ℃, Humidity 0~ 85% RH, no condensation
• Storage Ambient Temperature should be -20~ 50 ℃, Humidity 0~ 85% RH, no condensation
• The altitude should be less than 2000m
• Regularly calibrate instruments to ensure Measurement accuracy
• Avoid strong vibration or impact on the instrument
• Clean measurement caliber and standard whiteboard after use
