Overview

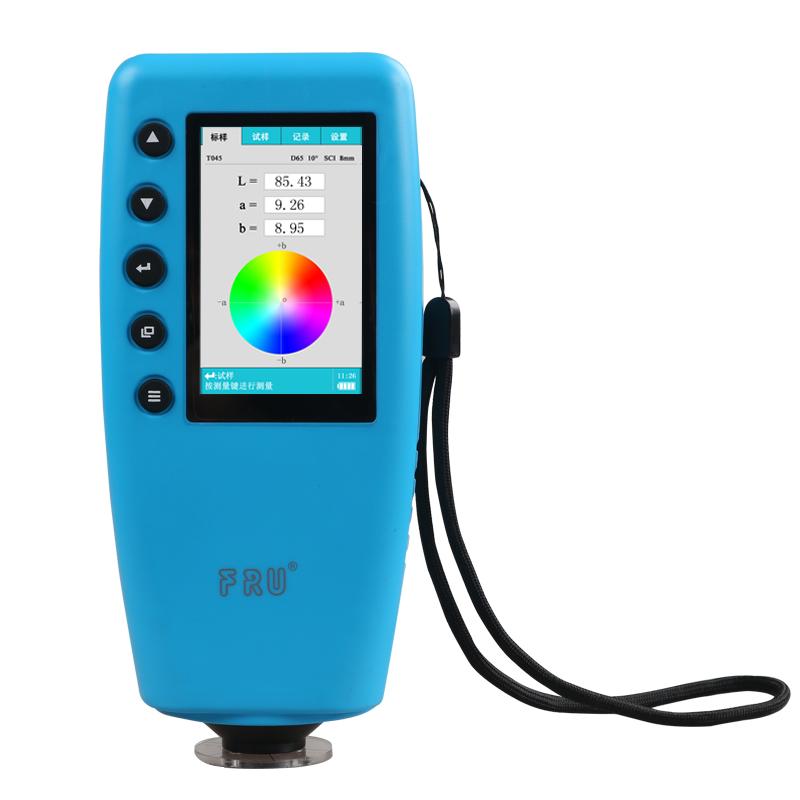

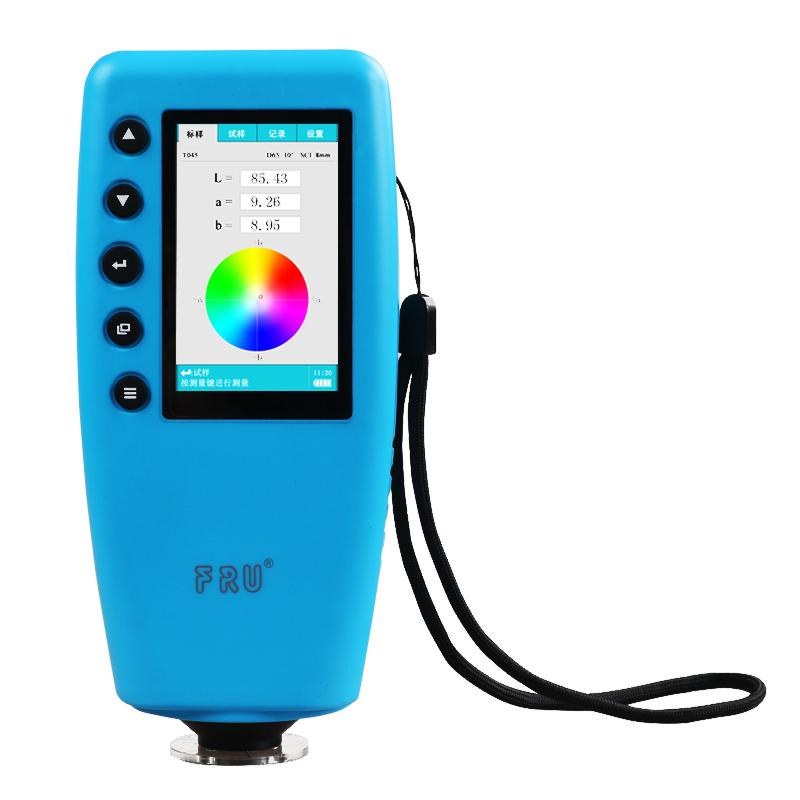

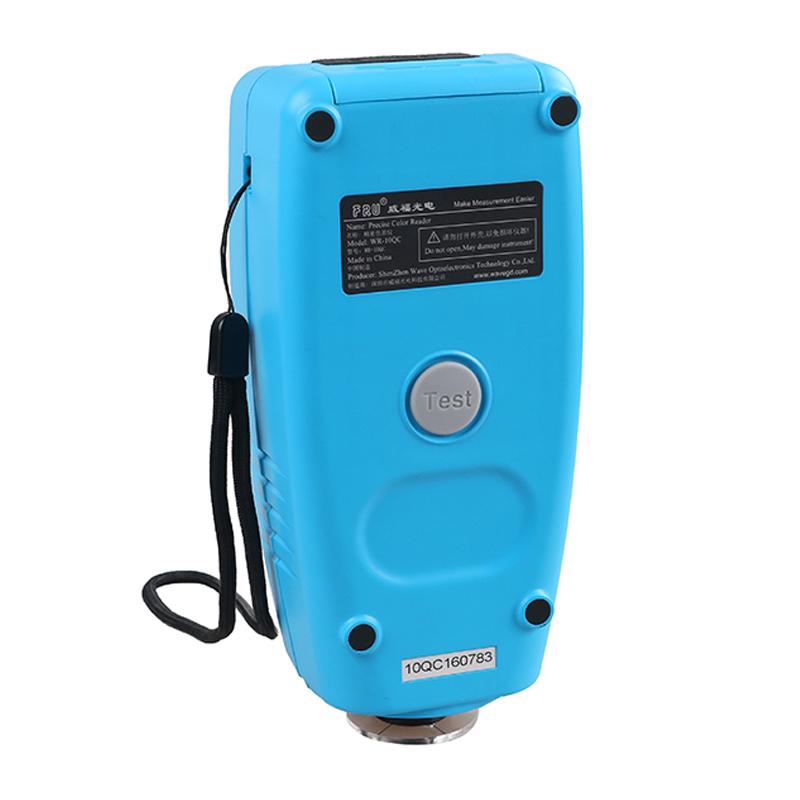

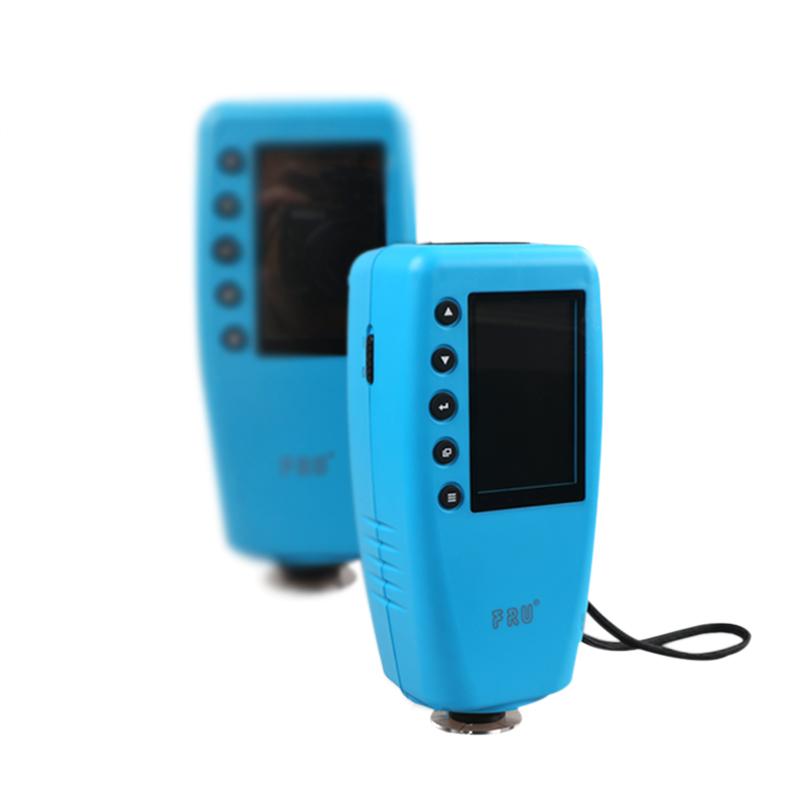

WR10QC portable color difference meter is an economical and cost-effective instrument developed by IWAVE Optoelectronics. It is widely used in plastics, electronics, paints, printing, wood, Spinning & weaving, food and other industries. It can accurately measure and control product quality for a variety of Colors. Universal 4mm measurement caliber adapts to most measurement needs and is ideal for production line inspection and mobile measurement.
Features
1. Automatic calibration: Innovative built-in whiteboard boot Automatic calibration for fast calibrating and boot measurement
2. Accurate and stable: using a unique integrating sphere light path design to eliminate system stray light
3. Smaller and lighter: innovative portable design, 350g body is small and convenient, anytime, anywhere Color measurement
4. Stronger battery life: using low-power design, it can be measured more than 5,000 times when fully charged
5. True color display: 2.8-inch TFT display, more comprehensive color display
6. Dual positioning: accurate positioning block positioning and rice frame positioning
7, Easy to use: Intuitive Graphical Operating interface, Detailed operation tips

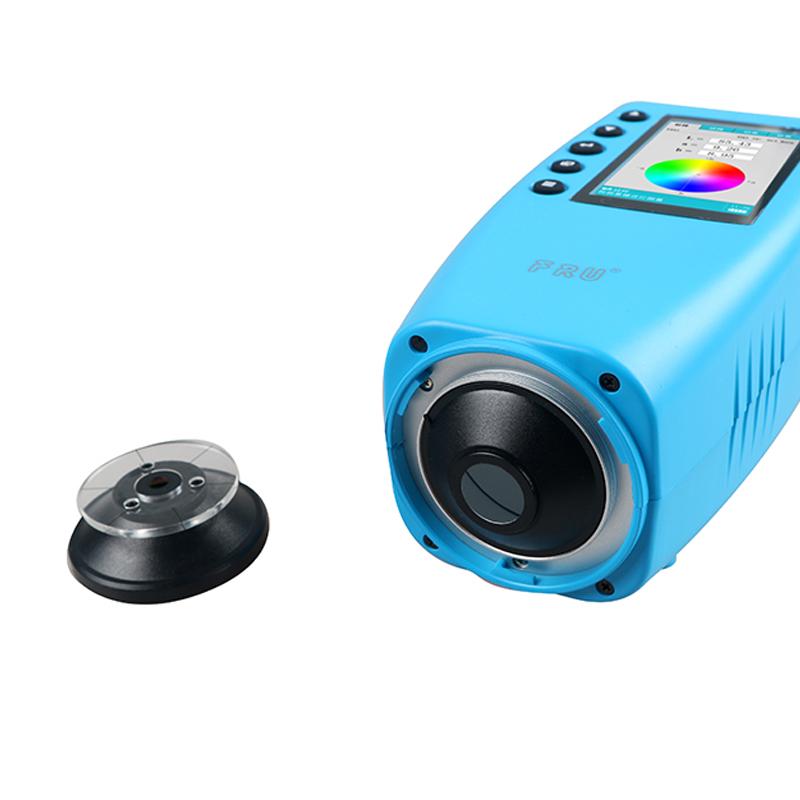

8, 4mm measurement diameter: suitable for a wider range of measurement scenarios, such as small surface, curved surface, flat surface
9. Trusted certification: CE safety certification, Rosh Environmental certification, SCM/CNAS metrology authentication
Principle
Color measurement is carried out through the optical channel of the measurement port. Measurement light source is D65. Measurement time is about 1.0 seconds. L value can be measured in the range of 0~ 100. The integrated ball optical path design ensures accurate and stable measurement.
Applications
Plastics, electronics, paints, printing, wood, Spinning & weaving, food
Standards
CE safety certification, Rosh Environmental certification, SCM/CNAS metrology authentication
Steps
1. Press the switch button to turn on the instrument
2. Use the up and down keys to move the cursor position or adjust the value
3. Use the page feed key to switch tabs
4. Use the confirm button to confirm or activate the selected item, and quickly switch between master standard measurement and sample measurement
5. Press the measurement button for measurement
6. Use the save button to save the settings
7. The printer can be connected to print measurement data through the print interface
Notice
• Operating Ambient Temperature should be in the range of 0~ 40 ° C (32~ 104 ° F)
• Operating environment relative humidity should be less than 85%, no condensation
• Storage Ambient Temperature should be in the range of -20~ 50 ° C (-4~ 122 ° F)
Storage environment relative humidity should be less than 85%, no condensation
• Use of Dedicated Lithium Batteries and Dedicated Power Adapters
Illuminant life is about 5 years or more than 1.60 million tests
