Overview

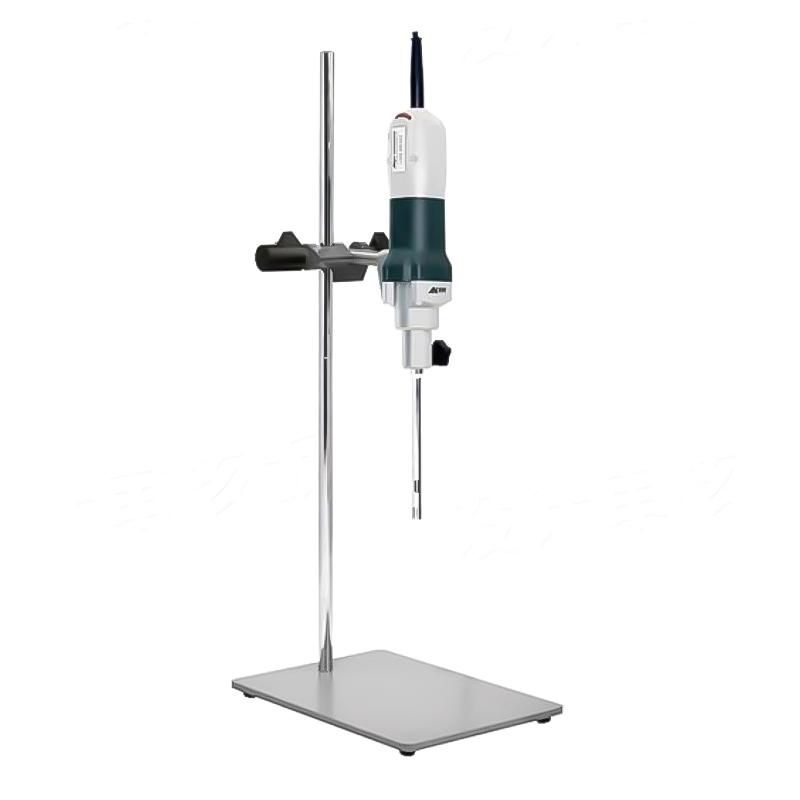

The ANGNI AD18 high-speed dispersion Mulser is driven by a miniature high-power high-speed motor imported from Germany, which is suitable for stirring and mixing low to medium and high viscosity liquids in the laboratory, dispersing homogeneous granular materials, tissue cell crushing, etc. in the liquid medium. The machine is composed of a high-speed motor, a dispersed homogeneous working head and a machine base. The driving host adopts an engineering plastic and a die-casting aluminum alloy body for stable operation. The working head is refined from stainless steel, which has a wide range of experimental applications. Rotation speed can be adjusted to ensure effective and controllable experimental operation.
Features
1. Adopt miniature high-power high-speed motors imported from Germany
2. The drive main unit is made of engineering plastic and die-casting aluminum alloy, providing stable operation
3. The working head is made of stainless steel and has a wide range of experimental applications
4. Rotation speed adjustable control to ensure effective and controllable experimental operation
5. With restart protection function
6. Adapt to a variety of working head specifications (8G, 10G, 12G, 18G, 24G)
Principle
The dispersed homogeneous head is driven by a high-speed motor to perform the triple effects of extrusion, strong Impact and depressurized expansion on the experimental medium in the liquid medium to achieve material refinement and uniform mixing, and prevent or reduce delamination.
Applications
Tissue dispersion in biotechnology, sample preparation, enzyme processing in the food industry, industry, cosmetic industry, paints industry, Petrochemicals, etc
Standards
Rated voltage AC220V, rated Frequency 50/60HZ, input Power 710W, output power 430W, rated torque 12.1 N.cm, Duty Cycle S1 (continuous), operation Control mode speed control turntable, Speed range 13000~ 34000rpm, speed regulation mode 6 gears, restart protection function Yes, approved torque 12.0 N.cm, working head material SS 316L stainless steel, suitable working head 8G; 10G; 12G; 18G; 24G, Permissible Ambient Temperature ≤ 40 ℃, allowable relative humidity ≤ 80%, Dimension 215 * 310 * 720mm, machine weight 8kg, working head specification 10G, standard Processing capacity 20~ 100mL, maximum processing viscosity 5000cp, rotor maximum linear speed 11m/s, maximum immersion liquid height 130mm, working head specification 10mm, working head length 182mm, maximum operating temperature 120 ° C, working head material SS 316L, bearing material PTFE, minimum immersion liquid height 25mm
Steps
1. Select the appropriate working head according to the experimental requirements
2. Rotation speed setting
3. Immerse the working head into the liquid medium to ensure that the immersion height is between 25mm and 130mm
4. Start the device for decentralized emulsification
5. Turn off the device after the experiment is completed
Notice
• Only suitable for liquid material experiments with viscosity below 0.2Pa.s and temperature below 80 ° C
• The height of the working head immersed in the liquid should be controlled within the range of 25mm to 130mm
• Ambient Temperature must not exceed 40 ° C, relative humidity must not exceed 80%
Make sure the voltage meets the requirements of AC220V before use
• Note that the working head material is SS 316L stainless steel, and the bearing material is PTFE.
• Avoid overload operation and ensure that it is used within the rated parameters
