Overview

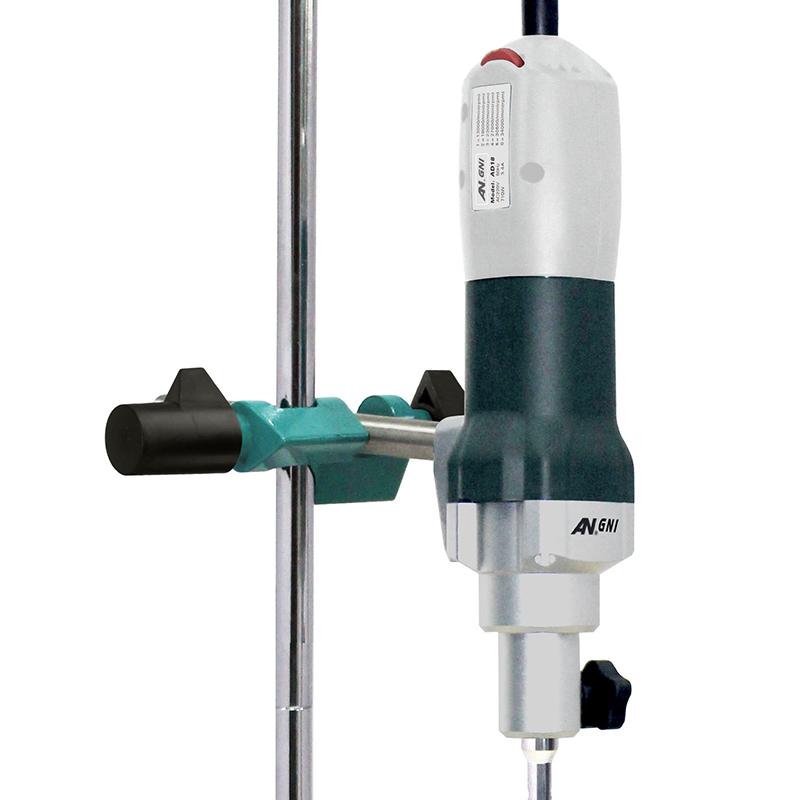

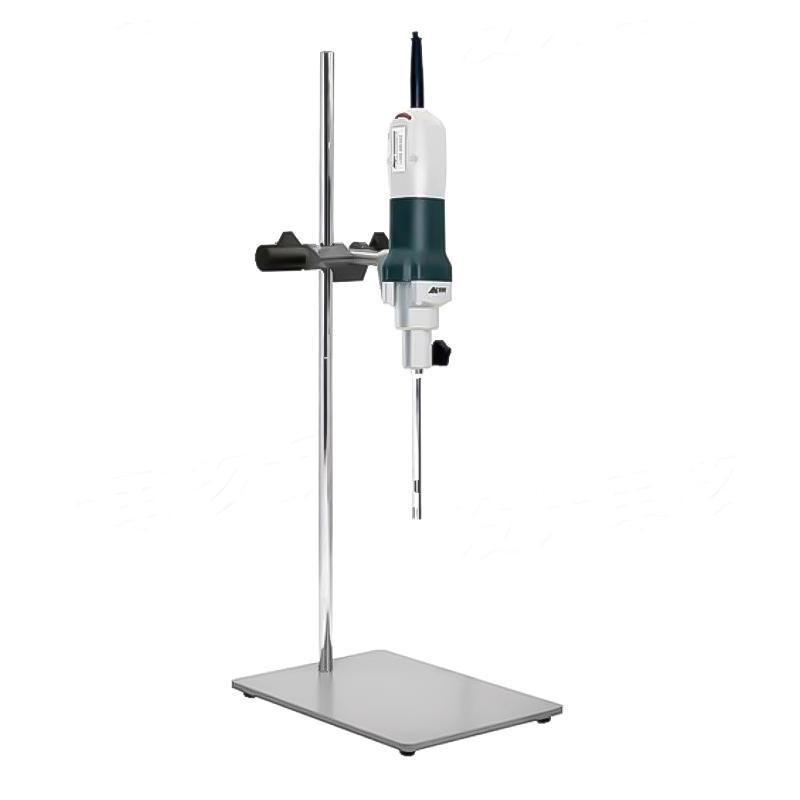

The ANGNI AD18 high-speed dispersion Mulser is driven by a miniature high-power high-speed motor imported from Germany, which is suitable for stirring and mixing low to medium and high viscosity liquids in the laboratory, dispersing homogeneous granular materials, tissue cell crushing, etc. in the liquid medium. The machine is composed of a high-speed motor, a dispersed homogeneous working head and a machine base. The driving host adopts a good engineering plastic and a die-casting aluminum alloy body, and the running state is stable. The working head is refined with good stainless steel, and the experimental application range is wide. The running Rotation speed can be adjusted to meet the needs of the experimental Rotation speed to be corrected at any time to ensure the effective control of the experimental operation.
Features
1. Adopt miniature high-power high-speed motors imported from Germany
2. The drive main engine adopts good engineering plastic and die-casting aluminum alloy body, which runs stably
3. The working head is made of good stainless steel and has a wide range of applications
4. Rotation speed adjustable control to ensure effective and controllable experimental operation
5. With restart protection function
6. Adapt to a variety of working heads (8G, 10G, 12G, 18G, 24G)
Principle
In the liquid medium, the material is dispersed and mixed by the dispersion homogeneous working head, which can make the experimental medium refined by the triple action of extrusion, strong Impact and loss of pressure expansion in the material liquid, and mix with each other more uniformly to prevent or reduce delamination with the material liquid.
Applications
Tissue dispersion, sample preparation, enzyme processing in the food industry, industrial, cosmetic industry, paints industry and Petrochemicals in the field of biotechnology
Standards
Rated voltage AC220V, Rated Frequency 50/60HZ, Duty Cycle S1 (continuous)
Steps
1. Select the appropriate working head specification
2. Rotation speed setting
3. Immerse the working head into the liquid medium (minimum immersion height 35mm, maximum immersion height 150mm)
4. Start the device for decentralized emulsification
5. Rotation speed can be adjusted at any time according to experimental needs
6. Turn off the device after the operation is completed
Notice
* Suitable for liquid materials with a viscosity below 0.2Pa.s
The liquid temperature must be lower than 80 ° C
* The maximum operating temperature of the working head is 120 ° C
* Maximum processing viscosity 5000cp
* Permissible Ambient Temperature ≤ 40 ℃
* Allowable relative humidity ≤ 80%
* Note that the working head is immersed in the liquid height range (35-150mm)
* Confirm that the header specification matches the Processing capacity before use
