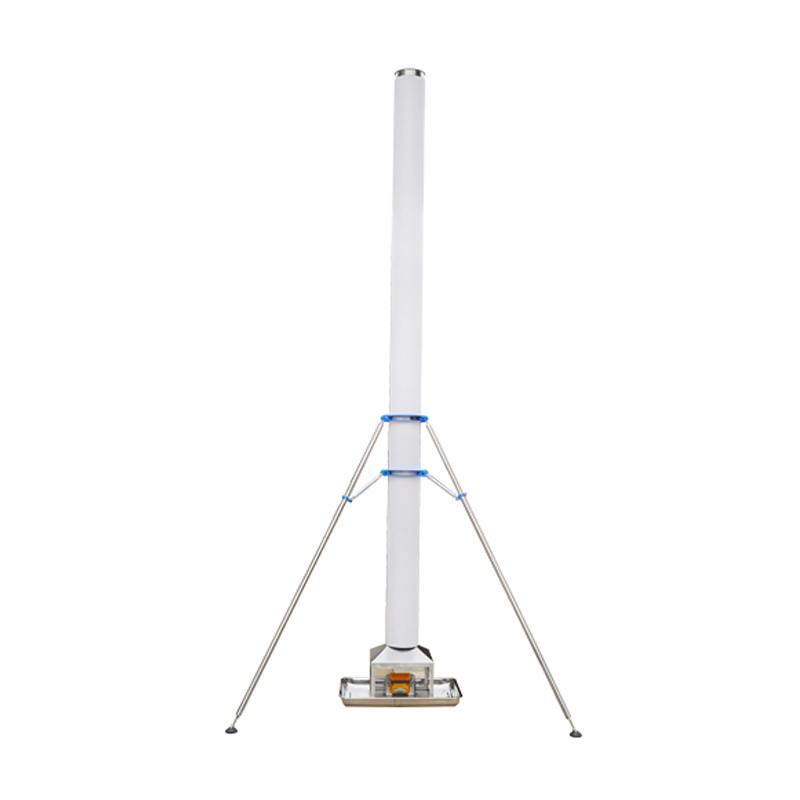

Tiandi Spark ZTT-930M Protrusion road sign abrasion performance Tester, Impact performance testing equipment

Name: Tiandi Spark ZTT-930M Protrusion road sign abrasion performance Tester, Impact performance testing equipment
Brand: Tiandi Spark
SKU: NB029511
Price: 769.0 USD
Availability: InStock

$ 769.00Ex works

The 2850mm sand guide tube and 850μm filtrate net are used to control the falling sand, the calibration funnel can adjust the uniformity of the sand volume, and the sample holder can freely adjust the height and horizontal direction to ensure the Test accuracy and Reliability.

Model

ZTT-930M

Get Quote

Category : Other Instruments

Brand : Tiandi Spark

SKU : NB029511

Service :The delivery and service By NBCLab.Com

Overview

ZTT-930M protruding road sign abrasion performance tester is designed and produced by Beijing Tiandi Spark Technology Development Co., Ltd. for the production, mass supervision, engineering construction and supervision of unit measurement of protruding road sign anti-impact performance. It has the characteristics of reasonable structure, simple operation, wide applicability, high measurement accuracy, measurement safety and Reliability.

Features

1. Reasonable structure 2. Easy to operate 3. Wide applicability 4. Measurement accuracy 5. Reliability and safety of measurement

Principle

The instrument guides the sand to fall through the sand guide tube, restricts the sand falling through the filtrate net Flow velocity, ensures that the sand vertically impacts the raised road sign sample by correcting the funnel, the sample holder firmly holds the sample and adjusts the position, and the collector collects the sand outside the corrected funnel, thereby completing the measurement of the abrasion resistance of the raised road sign.

Standards

GB/T24725-2009 "Raised Road Sign"

Sand guide pipe
It can be composed of solid-walled plastic pipes with smooth inner walls with an inner longitude of not less than 150mm, a length of 2850mm, and the non-verticality of the sand guide pipe is not greater than 0.2 °.
Correction funnel
The upper mouth Size of the corrected funnel is 120 * 40mm, the height is 100mm, and the 4-sided slope angle is 45 °
Filter net
Standard mesh with a mesh Size greater than 850 μm
collector
A 300 * 500mm tray can be used for other containers
