XIONGFA XFMD-3205L Liquid Density Meter Wireless touch 7 inch color screen split measurement

Name: XIONGFA XFMD-3205L Liquid Density Meter Wireless touch 7 inch color screen split measurement
Brand: XIONGFA
SKU: NB029532
Price: 538.0 USD
Availability: InStock

$ 538.00Ex works

7 inch industrial flat panel Touchscreen to achieve split control, core components imported to ensure Stability, density Measurement range and accuracy of 0.001g/cm ³, support a variety of liquid types and concentration unit conversion, built-in 6000mAh battery to ensure continuous work.

Model

Get Quote

Category : Densitometer

Brand : XIONGFA

SKU : NB029532

Service :The delivery and service By NBCLab.Com

Overview

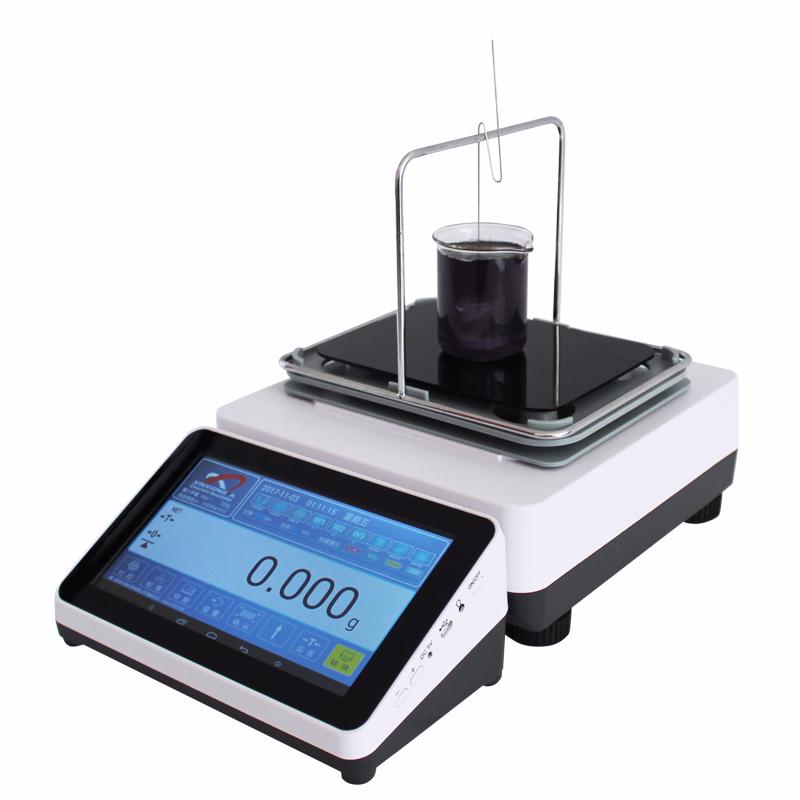

The XIONGFA XFMD-3205L Liquid Density Meter is a wireless touch density measurement device with a 7-inch integrated touch color screen and a split structure for remote control. The Density Meter is based on the Archimedes principle and combines modern electronic technology to instantly measure any liquid density, regardless of the liquid type. It has the characteristics of simple, accurate, stable and reliable measurement.

Features

1. Independent research and development of APP system intelligent software and WiFi split transmission technology patents 2. The core components of the host are imported from Germany and the United States 3.7-Inch industrial tablet PC Touchscreen, full-color large-screen display 4. Full-screen touch operation, support precise operation with gloves 5. Metro color scheme user interface, environmentally friendly color design 6.Split structure design to avoid liquid leakage damage 7. Built-in date, time and 6000MA battery to prevent power outages 8. Multi-purpose machine, built-in multiple density test modes, can be used for Analytical Balance

Principle

The Archimedes principle combined with modern electronic technology is used to calculate the density value by measuring the buoyancy change of the standard weight in the liquid, which is one of the international general liquid density Measuring methods.

Applications

Fine Chemicals, Chemical Solutions, Modern Energy, Petroleum Fuels, Chemical Reagents, paints, asphalt, inks, Resin, chemical oils, edible oils, beverages and other flowability liquids, viscous liquids, volatile liquids, corrosion liquids, high temperature liquids, suspended liquids, emulsification liquids, acidic liquids, alkaline liquids, saline liquids

Standards

GB/T 611、GB/T11540、GB/T12206、GB/T5518

Steps

1. Put the measurement cup containing the sample on the measurement placement plate, deduct the weight of the hook, and measure the standard Nominal Mass 2. Hang the standard weight with a hook and completely immerse it in the liquid to be tested, showing the density value

Notice

The measurement cup is easy to clean, repeability • Can be used with other measurement cups • Volatile, corrosion, viscosity, strong acid and strong alkaline liquids need to buy related accessories • Equipped with special windproof and dust cover, easy to combine, sturdy and durable

Weighing Range
0.005~300g
Density readability
0.001g/cm³
Density Range
Density > 1, < 1 can be tested
Measurement mode
At the same time, it has 3 sets of liquid Measurement modes, which can be used with different standard weights
The result shows
Density value, Baume degree, concentration, sugar content, API degree, Tewodel degree
Measurement principle
Archimedes principle
Measurement time
About 5 seconds
parameter setting
Solid density setting, density upper and lower limit setting
Correction method
Single key correction, automatic detection
Correction method of measurement results
Correction of distillation water
Interface
Standard RS-232 interface

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
