Overview

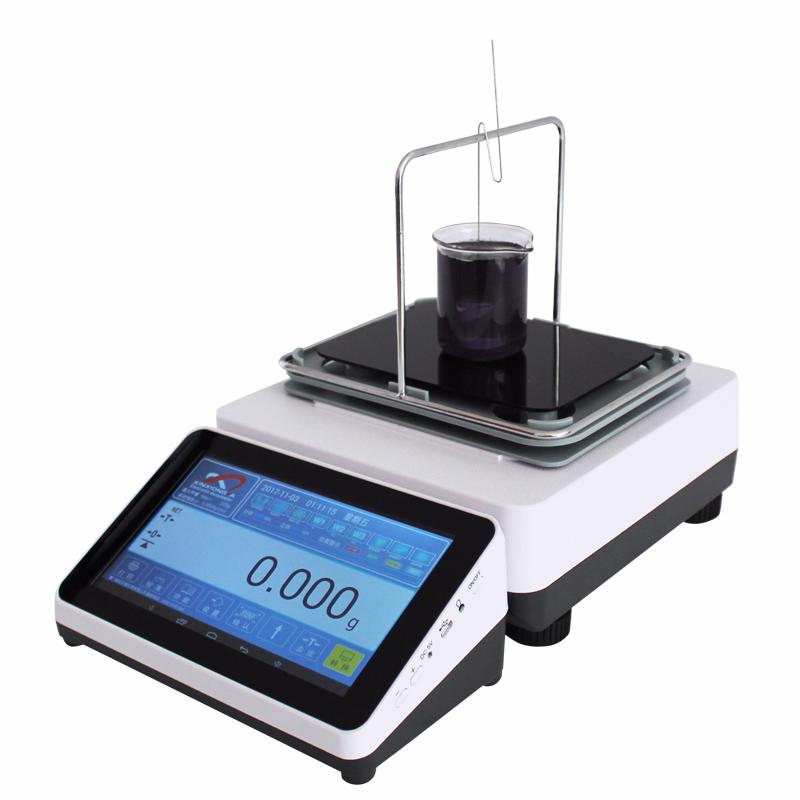

XIONGFA XFMD-1201G Liquid Density Meter is a wireless touch density measuring instrument, equipped with a 7-inch integrated touch display color screen, using a split structure to achieve long-distance control. The Density Meter can instantly measure the density of any liquid, regardless of the liquid type. Combining the principle of Archimedes and modern electronic technology, it has the characteristics of simple, accurate, stable and reliable measurement. As an upgraded product, it solves the common problems of instability, inaccurate data, and dead in the market, improving Measurement accuracy and operation convenience.
Features
1. Global independent research and development application APP system intelligent software weighing technology patent, application WiFi to achieve split transmission weighing data technology patent
2. The core components of the host are all imported components from Germany and the United States
3.7-Inch industrial tablet PC Touchscreen, full-color large-screen display, easy to read
4. Full-screen touch operation, accurate operation even with multiple pairs of gloves
5. The user interface adopts Metro color scheme, environmentally friendly color, long-term work without fatigue
6.Split structure design to avoid button impact measurement and liquid damage
7. Built-in date, time and 6000mAh battery to prevent power outages
8. Multi-purpose machine, built-in multiple density test modes, can be used for Analytical Balance
Principle
The Liquid Density Meter uses the Archimedes principle combined with modern electronic technology to calculate the density value by measuring the buoyancy change of the standard weight in the liquid. The measurement process is performed dynamically, and the liquid formulation changes can be updated at any time, ensuring High Accuracy and Stability.
Applications
Fine Chemicals, Chemical Solutions, Modern Energy, Petroleum Fuels, Chemical Reagents, paints, asphalt, inks, Resin, chemical oils, edible oils, beverages and other flowability liquids, viscous liquids, volatile liquids, corrosion liquids, high temperature liquids, suspended liquids, emulsification liquids, acidic liquids, alkaline liquids, saline liquids
Standards
GB/T 611、GB/T 11540、GB/T 12206、GB/T 5518
Steps
① Put the measurement cup containing the sample on the measurement placement board, deduct the weight of the hook, and measure the standard Nominal Mass
② Hang the standard weight with a hook and completely immerse it in the liquid to be tested, showing the density value
Notice
- The measurement cup is easy to clean, can be used with repeability, and can also be used with other measurement cups
- Volatile, corrosion, viscosity, strong acid and alkaline liquids need to buy relevant accessories for rapid measurement
- Equipped with a special windproof and dust cover, easy to combine, sturdy and durable
- Easy sampling, samples only need 50ml or less, high temperature density measurement
- Results can be verified by distillation to ensure accuracy
