Overview

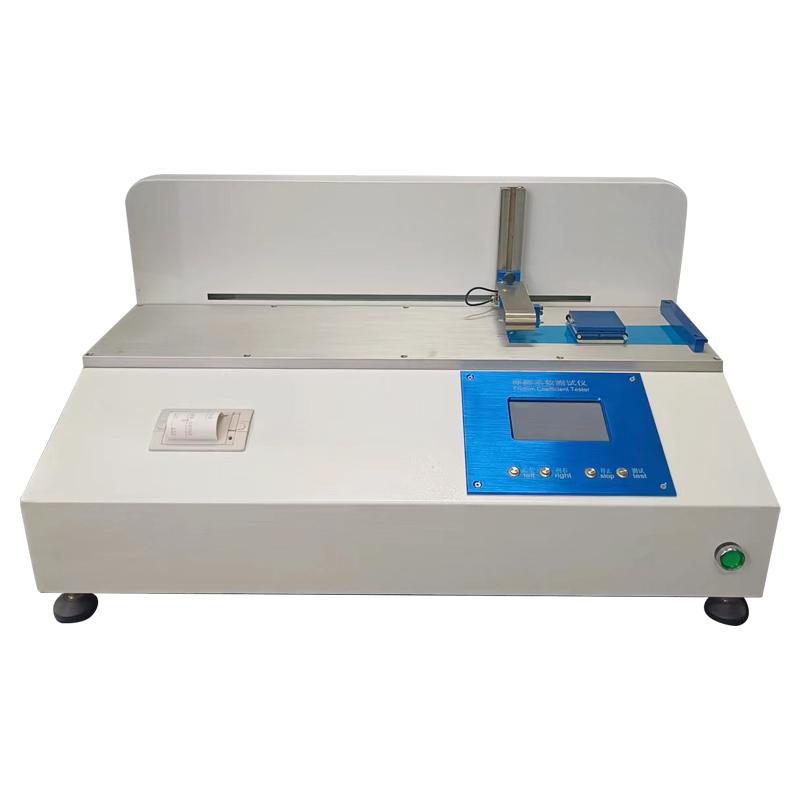

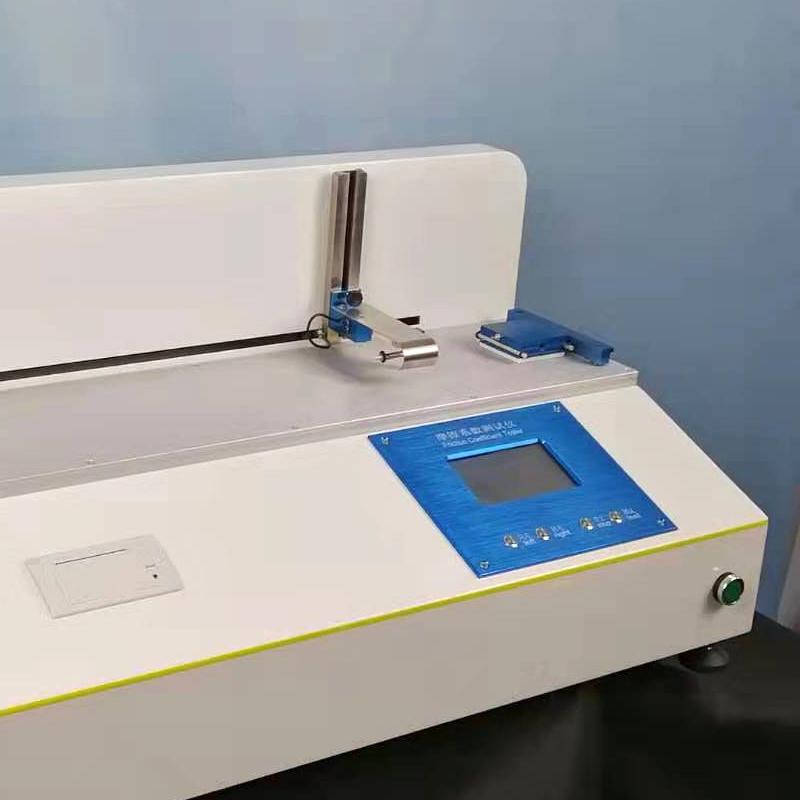

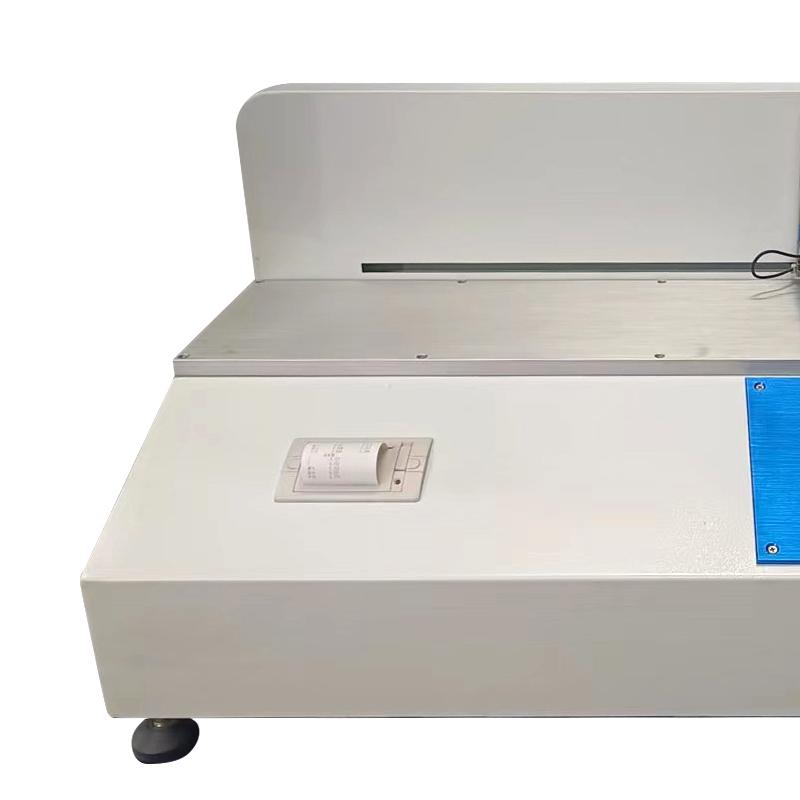

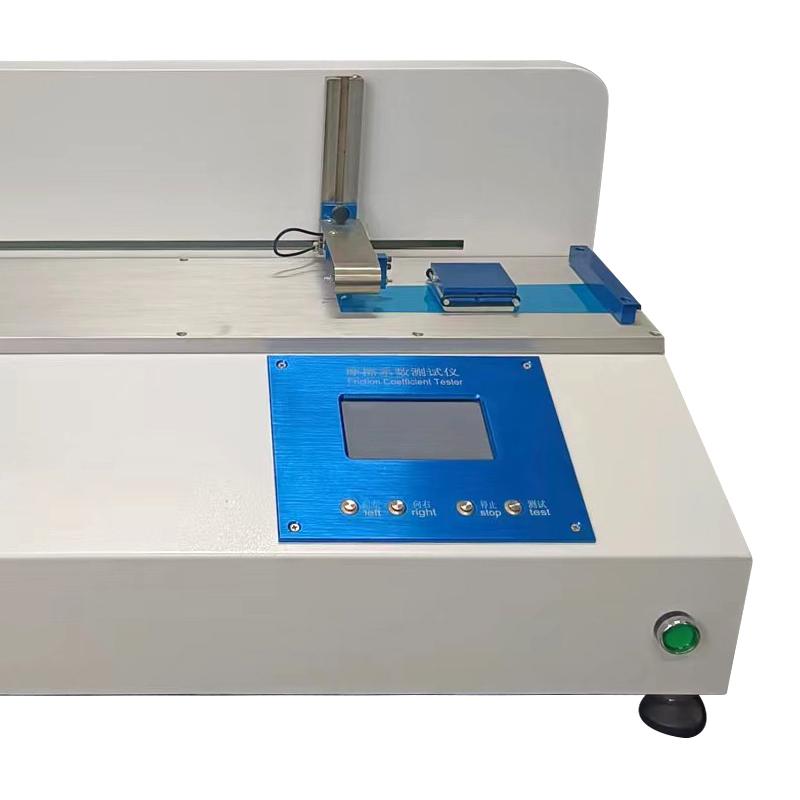

LD-MCY Coefficient of Friction Tester is a professional equipment of JINGHUAYIQI brand, mainly used for the measurement of Plastic film and sheet (or other similar materials), Static COF of paper and Kinetic COF when sliding.
Features
1. Adopt stepper motor, with low noise and accurate control
2. Adopt color large-screen touch LCD display to display various data in real time
3. Simple parameter setting, convenient and reliable testing
4. Directly obtain measurement results, including average and Standard Deviation
5. Degree of automation: data processing and motion control, automatic reset and overload protection
6. Data communication: The instrument is equipped with a standard serial RS232 interface, which can provide data communication for the host computer comprehensive reporting system
Principle
The instrument drives the slider to move on the surface of the sample by stepper motor, measures Static COF and Kinetic COF, uses High Accuracy Force Measurement System to collect data in real time, and displays and processes the results through Touchscreen.
Standards
GB10006-88、ISO8295、TAPPI T816
Steps
1. Turn on the power supply and turn it on.
2. Set test parameters, such as slider traverse speed
3. Place the sample on the work surface
4. Start the test, the instrument runs automatically and collects data
5. View and record measurement results, including Average and Standard Deviation
6. After the test is completed, the instrument can be automatically reset
