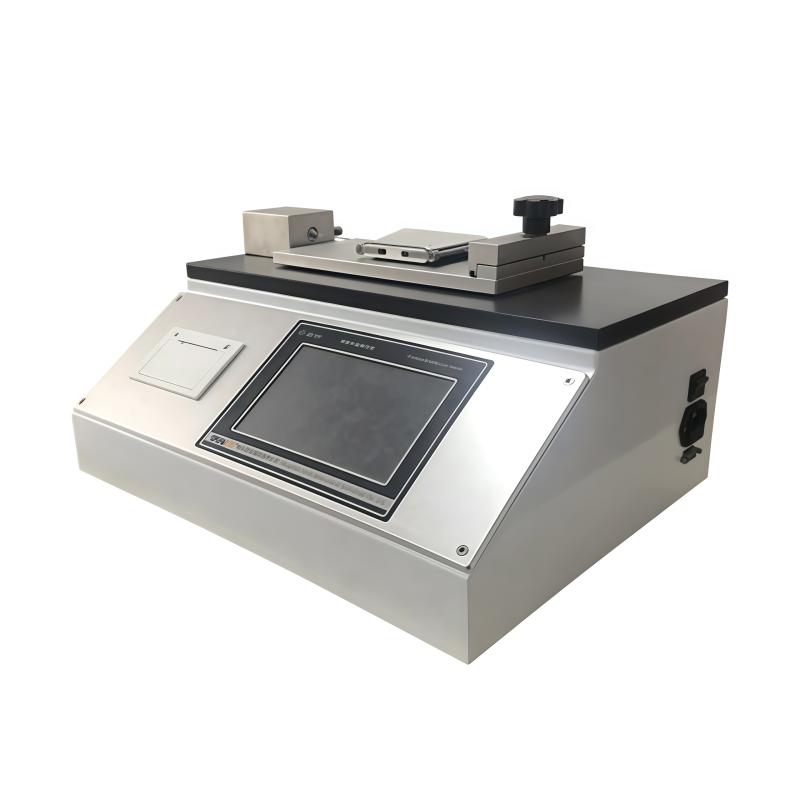

YANTE YT-MC05 Coefficient of Friction Tester, Film Sheet Kinetic COF measurement instrument

Name: YANTE YT-MC05 Coefficient of Friction Tester, Film Sheet Kinetic COF measurement instrument
Brand: YanTe
SKU: NB029627
Price: 2976.0 USD
Availability: InStock

$ 2976.00Ex works

Force range 0.050~ 10N, resolution 0.001N, using ARM processor and 7-inch color Touchscreen, real-time display of test data and Linear dispersion, closed-loop servo motor drive to ensure accurate displacement, smooth operation.

Model

YT-MC05

Get Quote

Category : Coefficient of Friction Tester

Brand : YanTe

SKU : NB029627

Service :The delivery and service By NBCLab.Com

Overview

The Coefficient of Friction meter YT-MC05 is used for the measurement of Static COF and Kinetic COF of Plastic films and sheets, which can intuitively understand the smoothness and opening of the film, and display the distribution of the smoothing agent through Linear dispersion. By measuring the smoothness of the material, the production mass process indicators such as the opening of the Encasement bag and the Encasement speed of the Encasement machine can be controlled and adjusted to meet the requirements of product use.

Features

1. The instrument is equipped with an ARM processor and a 7-inch large-screen color touch display. 2. With test data memory function, high-speed thermal printer, print output, fully automatic test function. 3. With test data statistical processing function, real-time display of test data and Linear dispersion. 4. Closed-loop servo motors drive precision ball screws to ensure accurate displacement, smooth operation, and low noise. 5. Standard RS232 Computer Communication interface.

Principle

The instrument evaluates the smoothness and opening of materials by measuring the Static COF and Kinetic COF of Plastic films and sheets. Linear dispersion is used to display the distribution of the smoothing agent to control the process indicators such as the opening of the Encasement bag and the speed of the Encasement machine.

Applications

Plastic film, sheet

Standards

GB10006-1988

Steps

1. Prepare samples and instruments. 2. Set the test parameters. 3. Start the test, and the instrument automatically completes the measurement. 4. View data and Linear dispersion in real time. 5. Use the printer to output the results.

Notice

• Power supply voltage in the range of AC100-240V. • Check the size and mass of the slider before use. • Keep the work surface clean to avoid affecting Measurement accuracy. • Regularly calibrate instruments to ensure measurement accuracy. • Pay attention to the compatibility of optional accessories such as non-standard sliders and interfaces.

Slider Size
63*63mm
Slider mass
200g
Test bench Size
200*455mm
Measurement accuracy
±0.5%
Slider motion speed
100±10mm/min
Slider Travel
100mm
Dimension
455*330*220mm
Net weight of instrument
25kg
power supply
AC100-240V 50/60Hz 50W
Optional accessories
500G non-standard slider, RS232 or USB 2.0 interface and microcomputer software
execution standard
GB10006-1988

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
