Overview

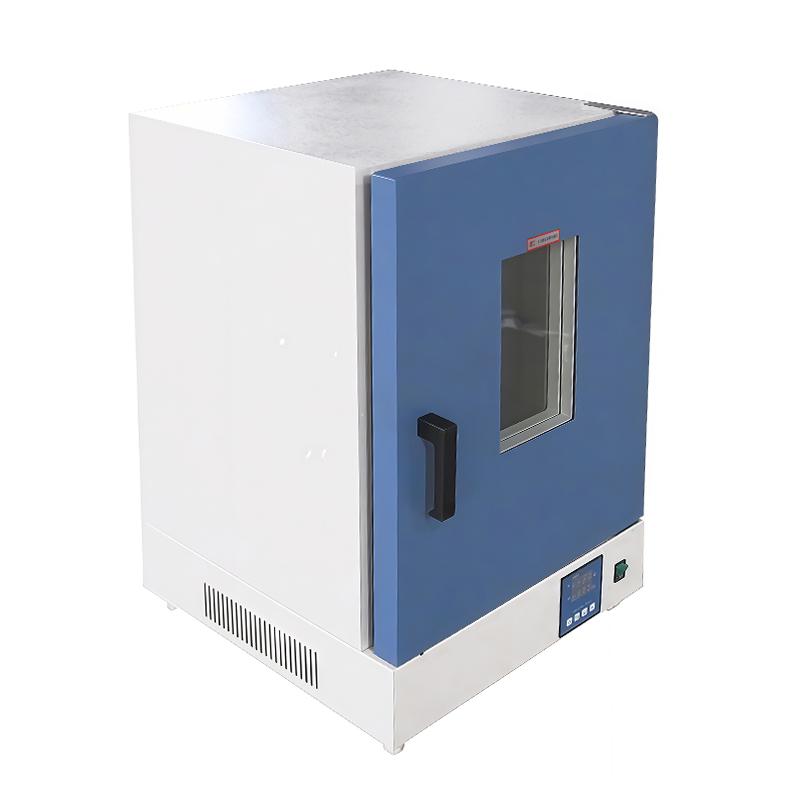

BOZHEN DGG-9076A vertical blast drying oven is suitable for R & D institutions, Universities & colleges, laboratories, ** institutions, etc. for drying, baking, sterilizing and disinfection, and can also be used for general thermostatic tests. The equipment adopts digital microcomputer temperature controller, which has the characteristics of accurate and reliable temperature control and high Temperature Uniformity.
Features
1, using digital microcomputer temperature controller, accurate and reliable control, accuracy of 0.1 ℃
2. With timing function, temperature control protection function and fan stop switch
3, optional smart programmable LCD controller (ten, fifteen, thirty optional)
4. The liner is made of mirror stainless steel plate argon arc welding
5. The shell is sprayed with good steel plate material, resulting in a beautiful and novel appearance
6, with a large area of double-decked tempered Glass observation window
7, hot air circulation system using imported original fans and professional air duct design
8. Vertical and vertical forced convection to ensure uniform temperature in the working room
9. Optional independent temperature limit alarm system
10. The insulation system is filled with ultra-fine fiberglass, which effectively reduces high temperature conduction
Principle
The drying oven precisely controls the heating system through a digital microcomputer temperature controller, and the hot air circulation system is composed of imported original fans and professional air ducts. It adopts a vertical vertical forced convection method to circulate hot air inside the studio to ensure uniform temperature distribution and realize functions such as thermostatic drying and baking.
Applications
R & D institutions, Universities & colleges, laboratories, institutions, drying, baking, sterilizing, thermostatic testing
Steps
1. Turn on the power supply and set the required temperature parameters
2. Select the timing function as required
3. Start the device and observe the temperature change
4. Monitor the working room conditions through the observation window
5. After use, turn off the equipment according to the prescribed procedures
Notice
• Operating Environment Temperature should be in the range of 5 ℃~ 40 ℃
• Operating Environment Humidity should be ≤ 85% R.H.
• Note that the maximum Power of the device is 1600W, make sure the power supply matches
• Check whether the fan is running normally before use
• Note that the maximum capacity of the studio is 72L, do not overload it
• Regularly check the insulation system and Temperature control accuracy
• If high temperature operation is required, it is recommended to choose an independent temperature limit alarm system
