Overview

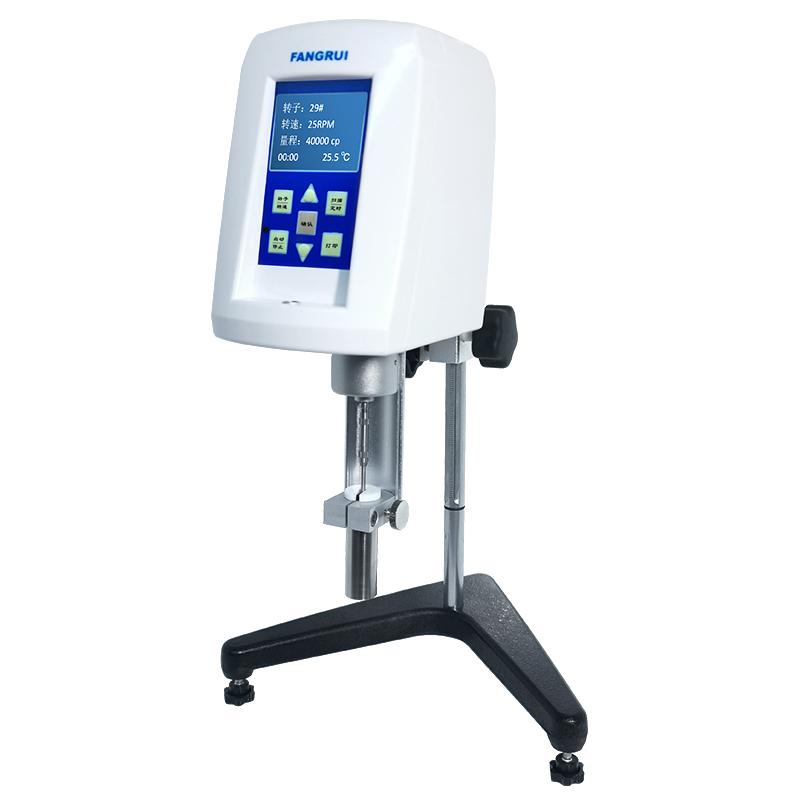

The FANGRUI RV-SSR digital rotational viscometer adopts a coaxial cylindrical structure and uses a small sample adapter. The sample volume required for each measurement is only 7ml-13ml (21ml for No. 0 rotor). Optional with circulating thermostatic water jacket and Thermostatic bath to control the temperature of the sample. Easy to operate, accurate measurement, very suitable for viscosity measurement of precious and small samples.
Features
1. The front design of the horizontal bubble, the level can be adjusted by sitting, and the operation is convenient
2. With timing measurement function
3. Adopt coaxial cylindrical structure
4. Measurement accuracy to two decimal places
5. Easy and reliable operation
6. Use a small number of sample adapters, and the amount of sample required for testing is minimal
7. Equipped with two RS232 interfaces, it can directly connect to micro thermal printers and computers
Principle
Coaxial cylinder structure, through the rotor in the sample swirl/spin measurement of fluid viscosity, optional thermostatic water jacket with Thermostatic bath to achieve sample temperature control.
Applications
Oil, paints, coatings, Stock, Spinning & weaving, Food, Adhesive, Cosmetics and other fluid viscosity detection and control
Standards
Measurement error +/- 2% (Newton liquid), repeability error +/- 1% (Newton liquid)
Steps
Step 1 Adjust the instrument level
2. Choose the right rotor
3. Add an appropriate amount of sample
4. Rotation speed parameter
5. Initiate measurement
6. Read and record data
7. Can be connected to a printer or computer through RS232 interface to output results
Notice
• Ensure the level of the instrument before measurement
• Select the appropriate rotor according to the sample viscosity range
• Note that the sample volume is controlled within the specified range
• Make sure the interfaces match when connecting external devices
• Regularly clean and maintain equipment
