Overview

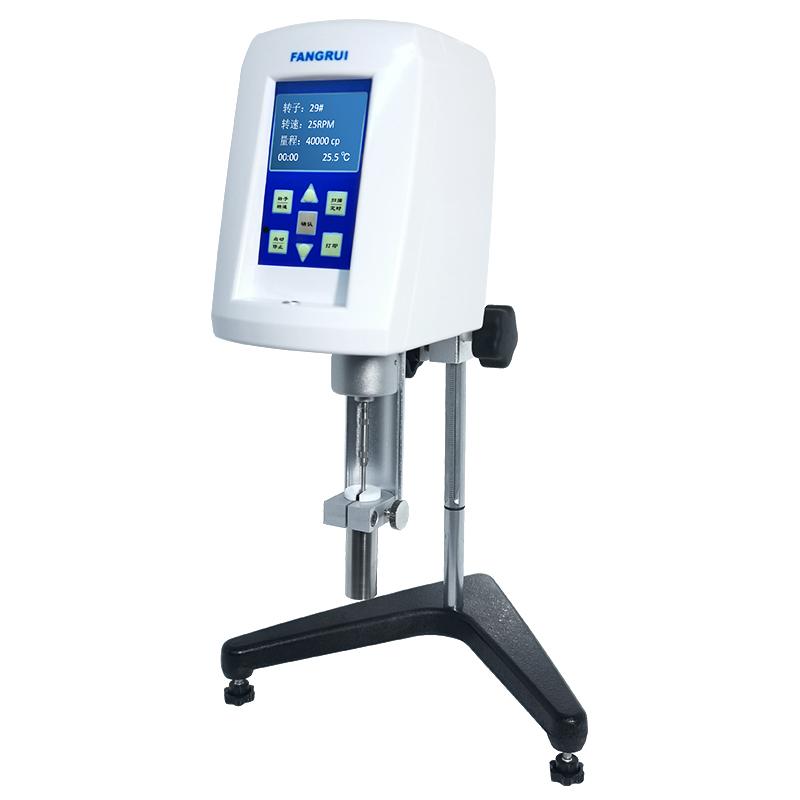

FANGRUI HA-SSR Viscometer adopts coaxial cylinder structure, with small sample adapter, each measurement only needs 7ml-13ml sample (No. 0 rotor is 21ml), optional with circulating thermostatic water jacket, with Thermostatic bath to control the temperature of the sample. Easy to operate, accurate measurement, especially suitable for precious, small sample viscosity detection.
Features
1. The front design of the horizontal bubble, the level can be adjusted by sitting, and the operation is convenient
2. With timing measurement function
3. Adopt coaxial cylindrical structure
4. Measurement accuracy to two decimal places
5. Easy and reliable operation
6. Use a small number of sample adapters, and the amount of sample required for testing is minimal
7. Equipped with two RS232 interfaces, it can directly connect to micro thermal printers and computers
Principle
The Viscometer uses a coaxial cylinder structure to measure viscosity values by the resistance of the rotor as it swirls/spins in the sample, and a small sample adapter for micro sample detection.
Applications
Oil, paints, coatings, Stock, Spinning & weaving, Food, Adhesive, Cosmetics and other fluid viscosity detection and control
Steps
Step 1 Adjust the instrument level
2. Choose the right rotor and Rotation speed
3. Add an appropriate amount of sample
4. Initiate measurement
5. Read and record viscosity data
6. Can be connected to a printer or computer through RS232 interface to output data
Notice
• measurement error of +/- 2% (Newtonian liquid)
• Sexual repeability error of +/- 1% (Newton fluid)
• Different rotors correspond to different sample volumes and Measurement ranges
• No. 0 rotor is an option, specially designed for low viscosity fluids
• Optional thermostatic water jacket for temperature control
• Instrument Dimensions 300 × 300 × 450mm
