Overview

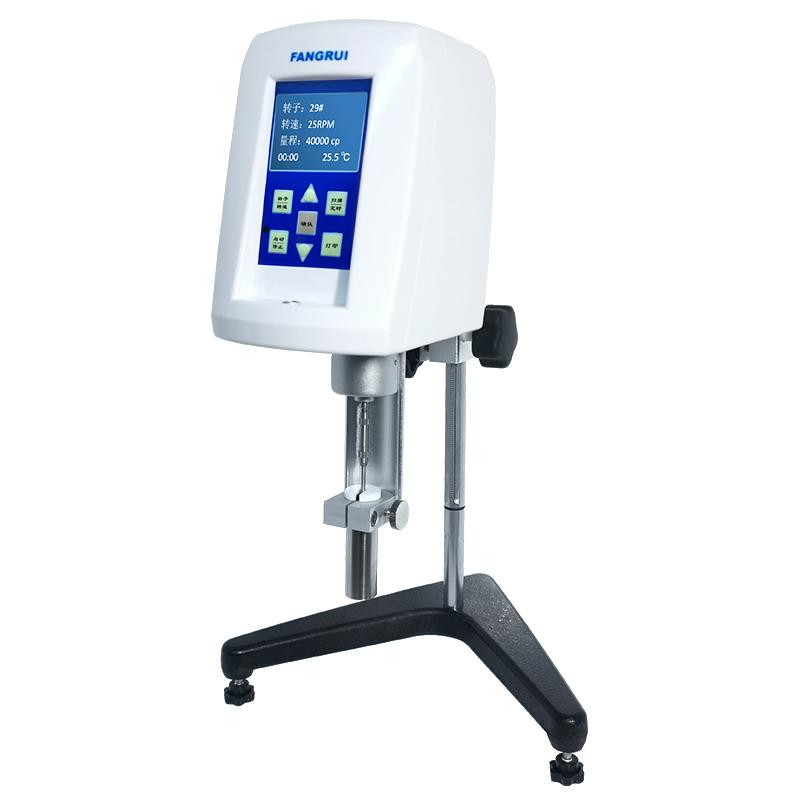

FANGRUI HB-SSR Viscometer adopts coaxial cylinder structure, with small sample adapter, only 7ml-13ml sample volume (21ml for No. 0 rotor), optional with circulating thermostatic water jacket for temperature control. Easy to operate, accurate measurement, especially suitable for viscosity detection of precious and small samples.
Features
1. The front design of the horizontal bubble, the level can be adjusted by sitting, and the operation is convenient
2. With timing measurement function
3. Adopt coaxial cylindrical structure
4. Measurement accuracy to two decimal places
5. Easy and reliable operation
6. Use a small number of sample adapters, with minimal sample volume required
7. Equipped with two RS232 interfaces, it can directly connect to micro thermal printers and computers
Principle
The Viscometer uses a coaxial cylinder structure for measurement of fluid resistance at a specific Rotation speed, a small sample adapter for micro sample viscosity detection, and an optional thermostatic water jacket with Thermostatic bath for precise temperature control of the sample.
Applications
Grease, paints, coatings, Stock, Spinning & weaving, Food, Adhesives, Cosmetics
Standards
Measurement error +/- 2% (Newton liquid), repeability error +/- 1% (Newton liquid)
Steps
Step 1 Adjust the instrument level
2. Choose the right rotor and Rotation speed
3. Add 7ml-13ml sample (No. 0 rotor 21ml)
4. Initiate measurement
Step 5 Read viscosity values
6. Can be connected to a printer or computer through RS232 interface to output data
Notice
• Ensure the level of the instrument before measurement
• Choose the appropriate rotor and Rotation speed according to the sample viscosity range
• The sample volume should be controlled within the specified range
• Use the standard RS232 interface when connecting external devices
• Thermostatic bath is required when using thermostatic function
