Overview

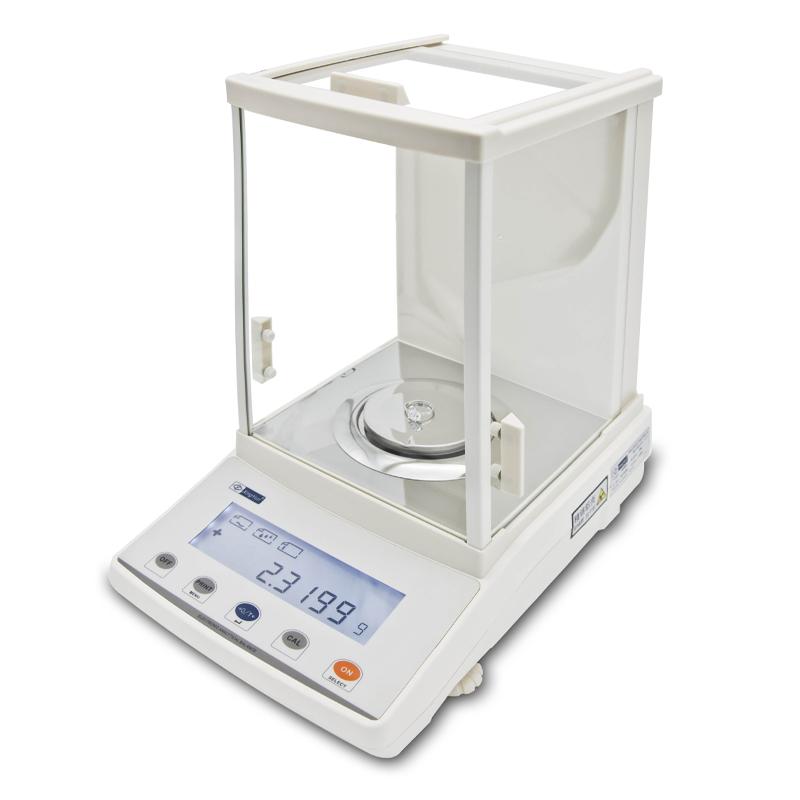

XINGYUN FA1004N Analytical Electronic Balance is a High Accuracy weighing device with an electromagnetic force equilibrating Sensor, fully automatic time-triggered internal calibrating and one-button Adjustment. The product case is made of specially cast aluminum, which provides excellent anti-static and anti-interference capabilities. It is equipped with an oversized LCD backlit display and three-door Glass Draft Shield for easy operation and visual transparency.
Features
1. Automatic time trigger internal calibrating, optional Auto Internal Cal time, support one-click calibrating
2. New generation electromagnetic force equilibrating Sensor, weighing fast and stable
3. Specially made and cast aluminum shell to comprehensively enhance anti-static and anti-interference capabilities
4. Five-button operation, large LCD backlight display, man-machine dialogue interface, easy to operate
5. Three-door Glass Draft Shield, large operating space, visual transparency, easy operation
Principle
FA1004N Analytical Electronic Balance uses electromagnetic force equilibrating Sensor technology to achieve accurate weighing through the equilibrating of electromagnetic force and gravity. The fully automatic time-triggered internal calibrating system ensures measurement accuracy, and the Sensor responds quickly and stably outputs weight data.
Applications
Laboratory, scientific research, pharmaceutical, chemical, education, mass testing
Standards
Class I accuracy class
Steps
1. Place the Balance on the horizontal stabilizing surface and adjust the level through the horizontal indicator
2. Connect the power cord and turn on the power.
3. Select Auto Internal Cal time as needed or press one button to calibrate to calibrate
4. Place the sample on the pan for weighing
5. Operating interface to select units (e.g. g, oz, ct) and adjust Sensitivity and speed
6. Read LCD liquid crystal display results
Notice
• Operating temperature range is 17.5 ℃~ 22.5 ℃, exceeding may affect accuracy
• Avoid use in strong static or electromagnetic interference environments
• Balance before weighing. Stabilization time should not exceed 3 seconds
Periodically calibrated internally to maintain accuracy
• Clean pan and Draft Shield after use to prevent contamination
• Pay attention to shock-proof during transportation and storage, Net weight 6.5kg, gross weight 10.0kg
