Overview

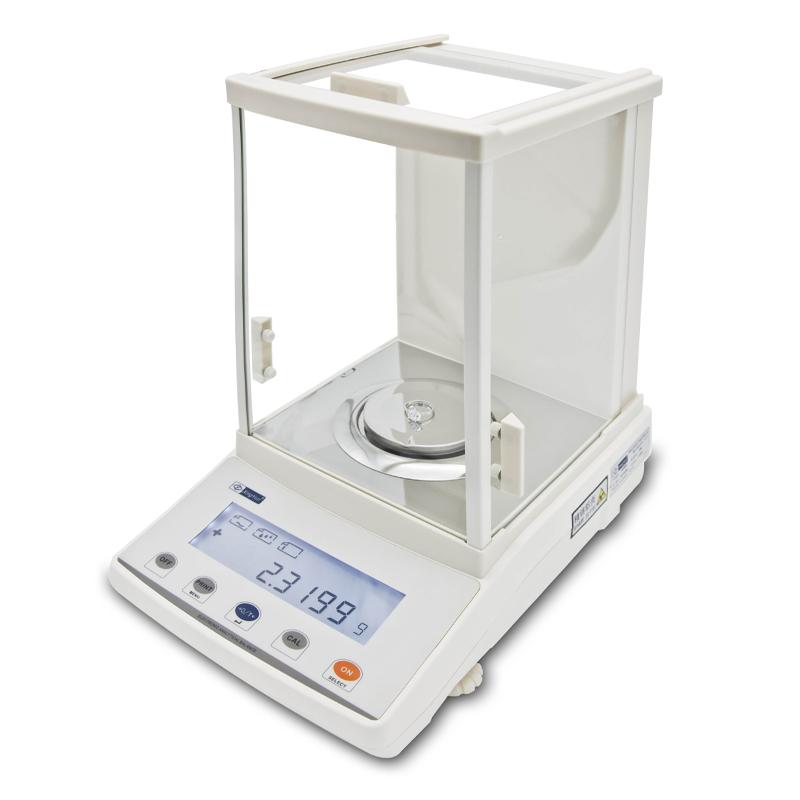

XINGYUN FA1204N Analysis Electronic Balance is a High Accuracy weighing device with Capacity 120g, accuracy class I, Minimum Weight 0.0001g. It uses full Auto Internal Cal technology and supports one-click calibrating to ensure the accuracy of weighing results. Stability and ease of use are emphasized in the product design, suitable for precision weighing environments such as laboratories.
Features
1. Automatic time trigger internal calibrating, optional Auto Internal Cal time, support one-click calibrating
2. New generation electromagnetic force equilibrating Sensor, weighing fast and stable
3. Specially made and cast aluminum shell to comprehensively enhance Balance's anti-static and anti-interference capabilities
4. Five-button operation, large LCD backlight display, man-machine dialogue interface, making Balance weighing operation easier
5. Three-door Glass Draft Shield, large operating space, visual transparency, easy operation
Principle
The FA1204N Analytical Electronic Balance uses electromagnetic force equilibrated Sensor technology to achieve accurate weighing by equilibrating electromagnetic force and sample gravity. When the sample is placed on the pan, the Sensor detects the change in gravity and converts it into an electrical signal, which is processed internally to display the weight reading on the LCD screen. Fully automatic time-triggered Adjustment ensures accuracy Stability in long-term use.
Applications
Laboratories, scientific research institutions, pharmaceutical industry, chemical industry, educational institutions
Standards
Accuracy class ⅰ
Steps
1. Place the Balance on the horizontal stabilizing table and adjust the level through the horizontal indicator
2. Turn on the power and wait for the Balance initialization to complete.
3. Use the five-button operation panel to set the required parameters, such as unit conversion (g, oz, ct, etc.)
4. Select automatic time trigger calibrating or one-click Automatic calibration function as needed
5. Place the sample on the φ 80mm pan for weighing
6. Read the weight data displayed on the LCD screen
7. Optional printer output data or use RS232 interface to connect external devices
Notice
• Operating temperature range is 17.5 ℃~ 22.5 ℃, beyond this range may affect the accuracy
• Avoid use in strong electromagnetic interference environments
• Balance is fully preheated and stable before weighing
Periodically calibrated to ensure measurement accuracy
• Use a soft dry cloth when cleaning to avoid liquids from entering the equipment
• Handle with care during mobile days to avoid violent vibrations
• It is recommended to disconnect the power supply when not in use for a long time
