Overview

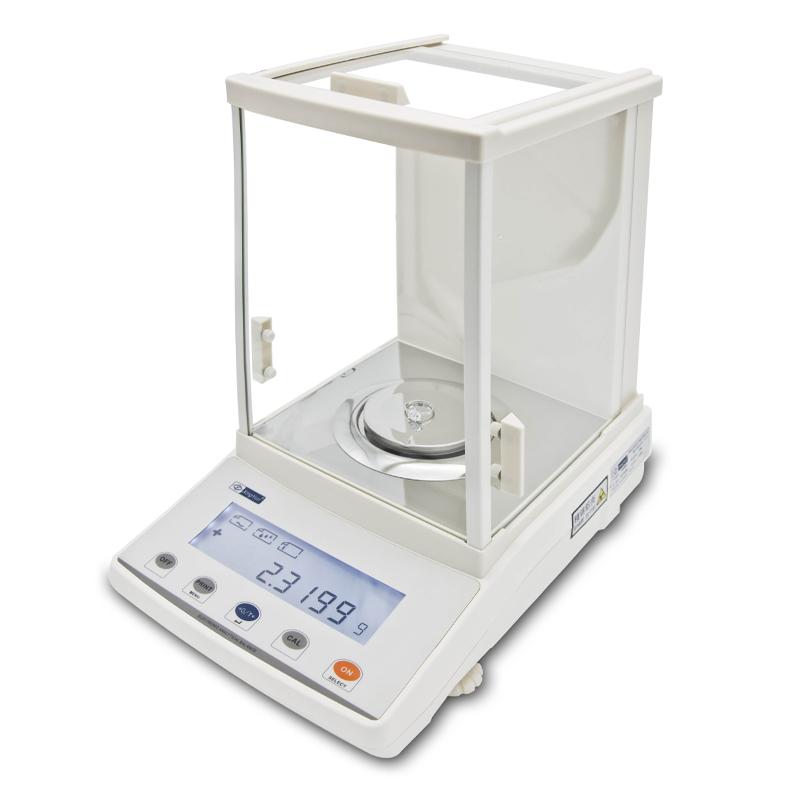

XINGYUN FA2204N Analytical Electronic Balance is a High Accuracy weighing device with Capacity 220g, accuracy class I, Minimum Weight 0.0001g. It uses a full Auto Internal Cal and electromagnetic force equilibrating Sensor to ensure fast and stable weighing, suitable for accurate weighing scenarios such as laboratories.
Features
1. Fully automatic time trigger internal calibrate, optional Auto Internal Cal time, support one-click calibrate.
2. A new generation of electromagnetic force equilibrating Sensor, weighing fast and stable.
3. Specially made and cast aluminum shell to comprehensively enhance anti-static and anti-interference capabilities.
4. Five-button operation, large LCD backlight display, man-machine dialogue interface, easy to operate.
5. Three-door Glass Draft Shield, large operating space, visual transparency, easy to operate.
Principle
FA2204N Analysis Electronic Balance is based on an electromagnetic force equilibrated Sensor, which equilibrates electromagnetic force with object gravity for accurate mass measurement. A fully automatic time-triggered internal calibrating mechanism ensures weighing accuracy, combined with LCD display and Sensitivity adjustment, for fast and stable weighing results.
Applications
Laboratory, scientific research, industrial weighing, quality control, education
Standards
Accuracy class ⅰ
Steps
1. Place the Balance on the horizontal stabilizing surface and adjust the level through the horizontal indicator.
2. Connect the power cord and turn on the power.
3. Use the 5-key Operating interface to set parameters, such as unit conversion (g, oz, ct, etc.).
4. Optional Auto Internal Cal time or Automatic calibration for calibrating.
5. Place the sample on the pan and wait for the Stabilization time ≤ 3 seconds to read the display results.
6. Optional printer or lower hook weighing for expansion operation.
Notice
• Operating temperature range is 17.5 ° C to 22.5 ° C to ensure use in a suitable environment.
• Avoid operating near strong static electricity or interference sources to maintain anti-static and anti-interference performance.
• Balance level before calibrating and use the specified test weight (202g).
• When weighing, the sample must not exceed Capacity 220g to prevent overload damage.
• Regularly check repeatability error +/- 0.0002g and Linearity +/- 0.0003g to ensure accuracy.
• Pay attention to Packaging Dimensions 470X320X490mm when transporting and storing to avoid collisions.
• Optional accessories If the printer needs to be connected correctly, Communication interface RS232 can be customized USB and other interfaces.
