Overview

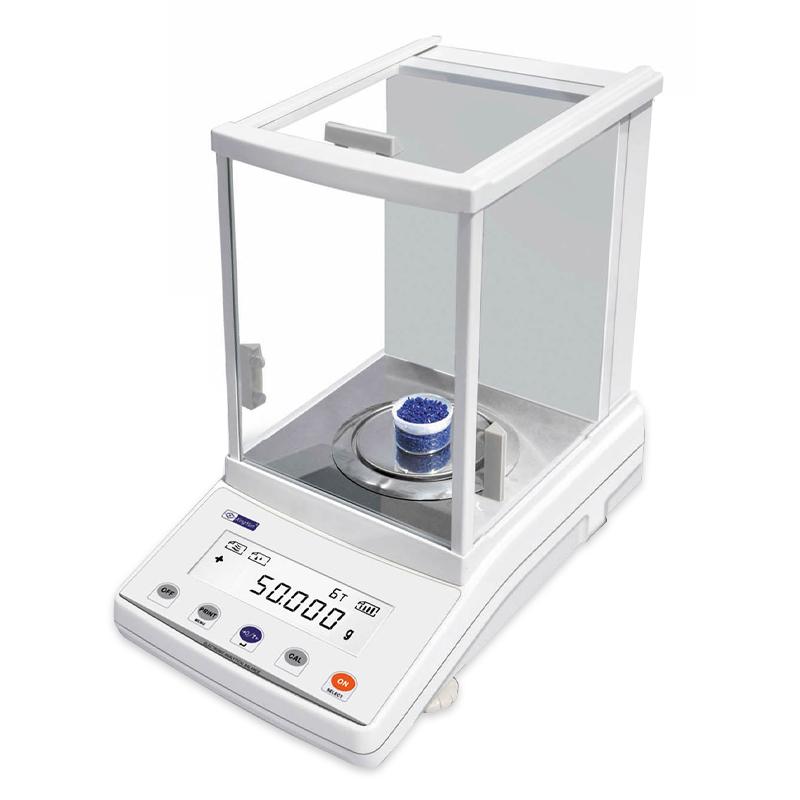

XINGYUN JA203N Analytical Electronic Balance is a High Accuracy weighing device with a Capacity of 200g and a reading accuracy of 0.001g. It uses a new generation of electromagnetic force equilibrating Sensor and a special precision cast aluminum shell, with fully automatic time-triggered internal calibrating and one-button Adjustment to ensure fast and stable weighing and strong anti-interference ability.
Features
1. Automatic time trigger internal calibrating, optional Auto Internal Cal time, support one-click calibrating
2. New generation electromagnetic force equilibrating Sensor, weighing fast and stable
3. Specially made and cast aluminum shell to comprehensively enhance anti-static and anti-interference capabilities
4. Five-button operation, large LCD backlight display, man-machine dialogue interface, easy to operate
5. Three-door Glass Draft Shield, large operating space, visual transparency, easy operation
6. Configure LCD liquid crystal display, level indicator, Sensitivity adjustment, speed adjustment, full scale peeling, overload & fault alarm, counting function, unit conversion, down-hanging weighing (optional), RS232 interface
Principle
Using electromagnetic force equilibrating Sensor technology, accurate weighing is achieved by equilibrating electromagnetic force and sample gravity. With fully automatic time-triggered Adjustment, the internal calibrating mechanism can be triggered regularly or manually to ensure measurement accuracy.
Applications
Laboratory, scientific research, industry, pharmaceuticals, education, jewelry, food, chemical industry
Steps
1. Turn on the power and wait for Balance to initialize
2. Use Level Indicator to Adjust Balance to Level
3. Select Automatic calibration or One-click Adjustment as needed
4. Place the sample on the pan for weighing
5. Select the desired Measurement unit through the unit conversion key
6. Read the measurement results on the LCD display
Notice
• Ambient Temperature should be kept within 5-35 ℃
• Avoid overloading to prevent damage to the Sensor
• Periodically calibrated to ensure Measurement accuracy
• Keep the pan clean to avoid affecting the weighing result
• Make sure Balance is level before use
• Pay attention to the correct use of Draft Shield to reduce airflow interference
