Overview

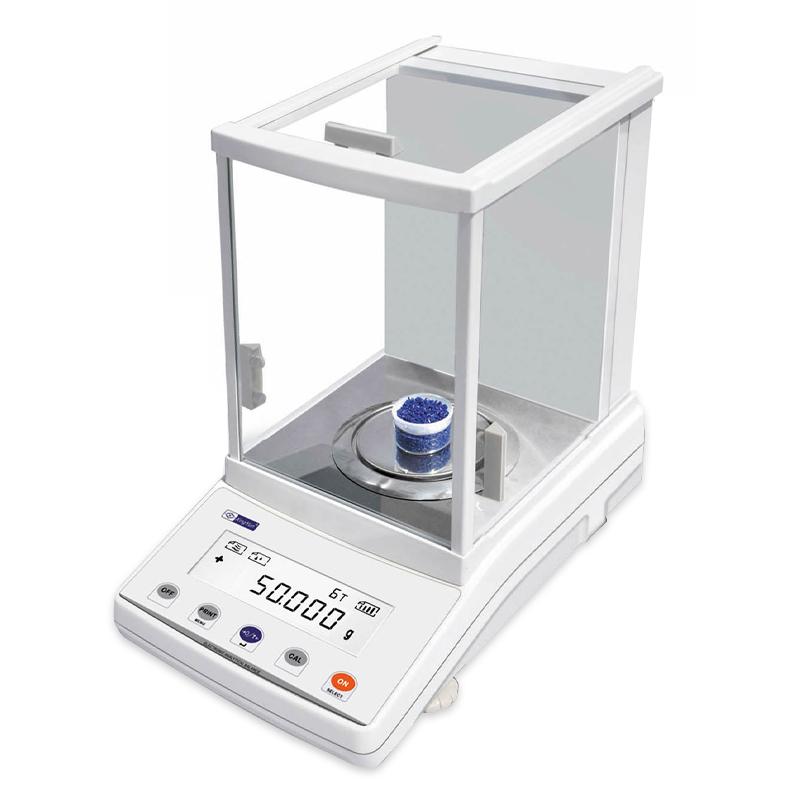

XINGYUN JA603N Analytical Electronic Balance is a High Accuracy weighing device with a Capacity of 600g and a reading accuracy of 0.001g. It uses a new generation of electromagnetic force equilibrating Sensor to ensure fast and stable weighing, and is equipped with fully automatic time-triggered internal calibration and one-click Adjustment for easy operation.
Features
1. Fully automatic time trigger internal calibrating, optional Auto Internal Cal time, support one-click calibrating;
2. New generation electromagnetic force equilibrating Sensor, weighing fast and stable;
3. Specially made and cast aluminum shell to comprehensively enhance anti-static and anti-interference capabilities;
4. Five-button operation, large LCD backlight display, man-machine dialogue interface, easy to operate;
5. Three-door Glass Draft Shield, large operating space, visual transparency, easy to operate.
Principle
The analysis Electronic Balance works based on the principle of electromagnetic force equilibrating Sensor, and realizes accurate weighing through electromagnetic force and gravity equilibrating. The fully automatic time-triggered internal calibrating mechanism automatically adjusts the Balance accuracy to ensure the measurement Stability.
Applications
Laboratory, industrial weighing, quality control, educational research
Steps
1. Balance the horizontal position and check the horizontal indicator.
2. Boot preheating, choose Automatic calibration or one-click calibrating as needed;
3. Place the sample on the pan and wait for the Stabilization time ≤ 3s;
4. Read the LCD display results, and perform unit conversion or counting functions.
5. Clean the pan after use, shut down and save.
Notice
- Avoid use in environments with temperatures below 5 ° C or above 35 ° C;
- Prevent overloading to avoid triggering an alarm or damaging the Sensor;
- Periodically calibrated to ensure accuracy;
- Keep Draft Shield clean to avoid affecting vision and operation.
- When using the following options for hanging and weighing, it needs to be installed correctly.
