Overview

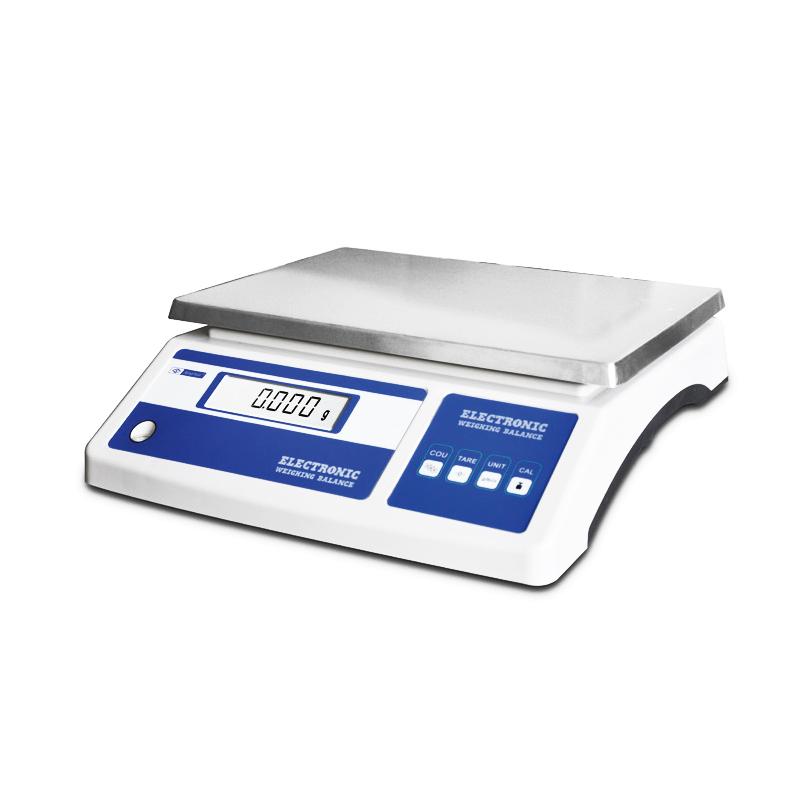

XINGYUN XY15MB precision electronic platform Balance is a High Accuracy weighing device, using large size stainless steel countertop, stable structure, fast and stable weighing. Equipped with LCD liquid crystal display and four-button operation, it supports weighing, counting, peeling and other functions. Built-in battery ensures use in a power-free environment.
Features
1. Large size stainless steel countertop, beautiful and generous, fast and stable weighing
2. Unique base design, stable structure, ensuring stable weighing
3. High Accuracy Sensor, accurate weighing without drift
4. LCD liquid crystal display, with four-button operation, easy to display and intuitive weighing
5. Configure the battery to ensure that it can be used without connecting the power supply.
6. Front level indicator, four horizontal adjustment feet, easier to adjust the level
Principle
High Accuracy Sensor converts the weight into an electrical signal, and displays the weighing result on the LCD screen after internal processing. External calibrating is supported to ensure accuracy, and built-in battery provides power supply.
Applications
Industrial Weighing, Laboratory measurement, Commercial Measurement, Warehouse Management
Standards
Externally calibrated
Steps
1. Place the scale body in the horizontal position and adjust the horizontal foot to center the horizontal indicator
2. Boot Preheating, Ensure Ambient Temperature Within 5-25 ℃
3. Externally calibrated (if required)
4. Place items to be weighed on the pan
5. Read the weight data on the LCD display
6. Use peeling, counting and other functions (if required)
7. Shut down or enter standby state
Notice
• Make sure the level is adjusted correctly before use
• Operating Ambient Temperature 5-25 ℃
• Avoid exceeding 16kg Capacity
Periodically calibrated to ensure accuracy
• Avoid Severe Impacts and Vibration
• Keep the scale surface clean and drying
