Overview

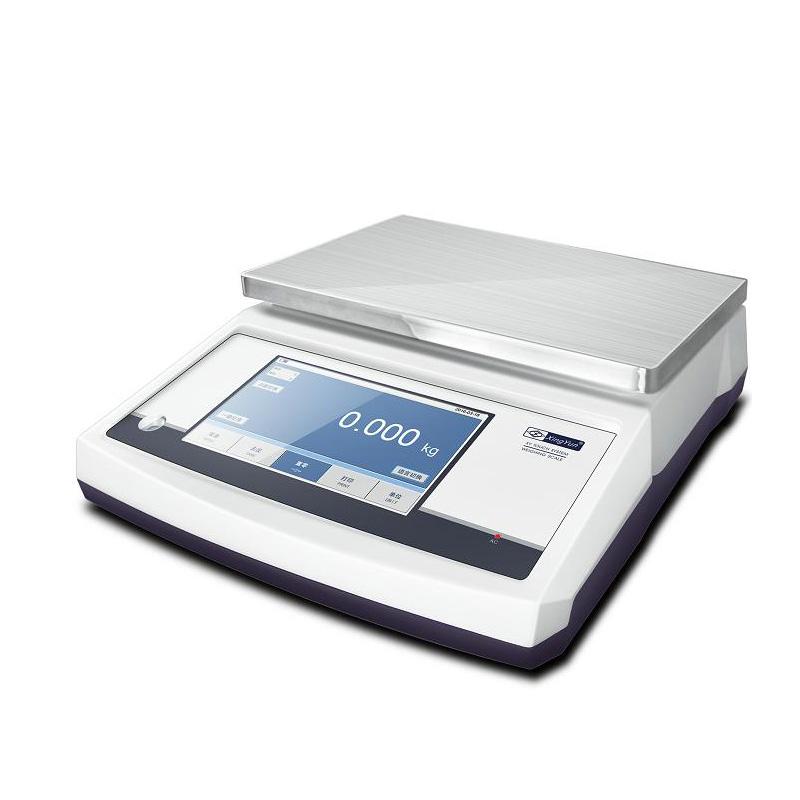

XINGYUN XY10MTA precision electronic table scale is a High Accuracy weighing equipment, equipped with 7-inch high definition full-color touch display, supports a variety of weighing modes and function expansion, suitable for industrial, laboratory and other scenarios.
Features
1.7 inch high definition full color touch display
2. Auto Internal Cal (optional)
3. Custom range accuracy
4. USB input and output
5. Support weighing, density, counting, label printing, percentage, hanging weighing and other functions
Principle
The electronic table scale detects the weight signal through the Sensor, converts it into a digital signal through the internal processing unit, displays the result on the 7-inch high definition touch screen, and supports data output and parameter import.
Applications
Industrial Weighing, Laboratory measurement, quality control, Encasement, Retail Measurement
Steps
1. Connect the power supply (220V 50HZ/110V 60HZ input, 12V output)
2. Turn on the device and wait for stabilization (Stabilization time ≤ 4 seconds)
3. Use the touch screen to select the weighing mode (e.g. g, oz, ct)
4. Place items on the pan for weighing
5. Output data or import parameters through USB interface
6. Optional Auto Internal Cal function
Notice
• Operating Environment Temperature between 5 ° C and 35 ° C
• Avoid overloading, Capacity is 10kg
• Ensure that the power input meets the specifications (220V 50HZ/110V 60HZ)
Periodically check repeatability errors, linearity, Sensitivity drift and quadrangle errors to be within +/- 3d
• Optional Internal Adjustment needs to follow the instructions
• Packaging Dimensions are 415 × 165 × 430mm, pay attention to shock-proof during transportation
