Overview

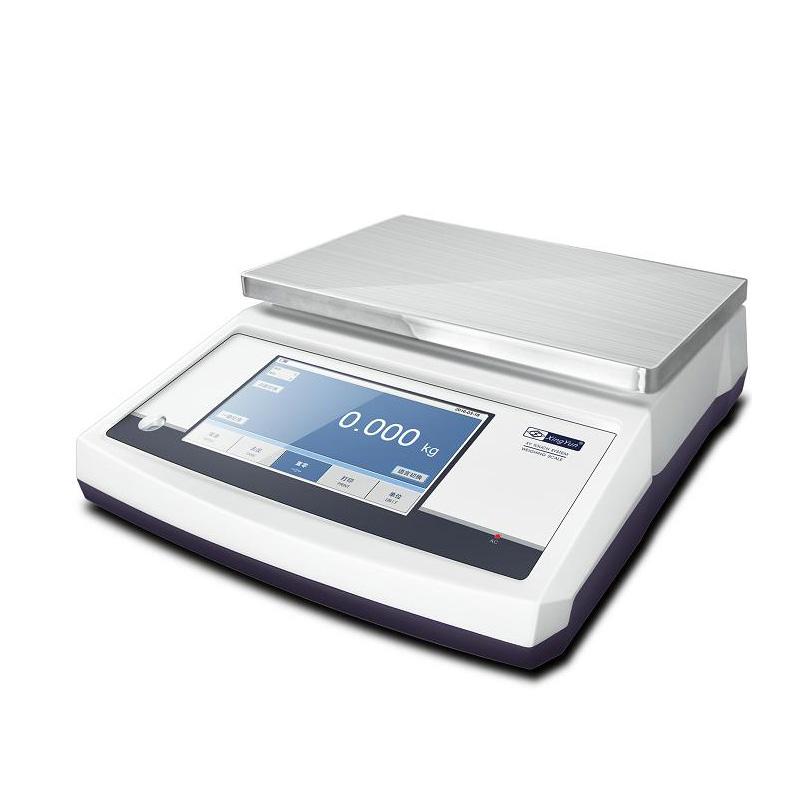

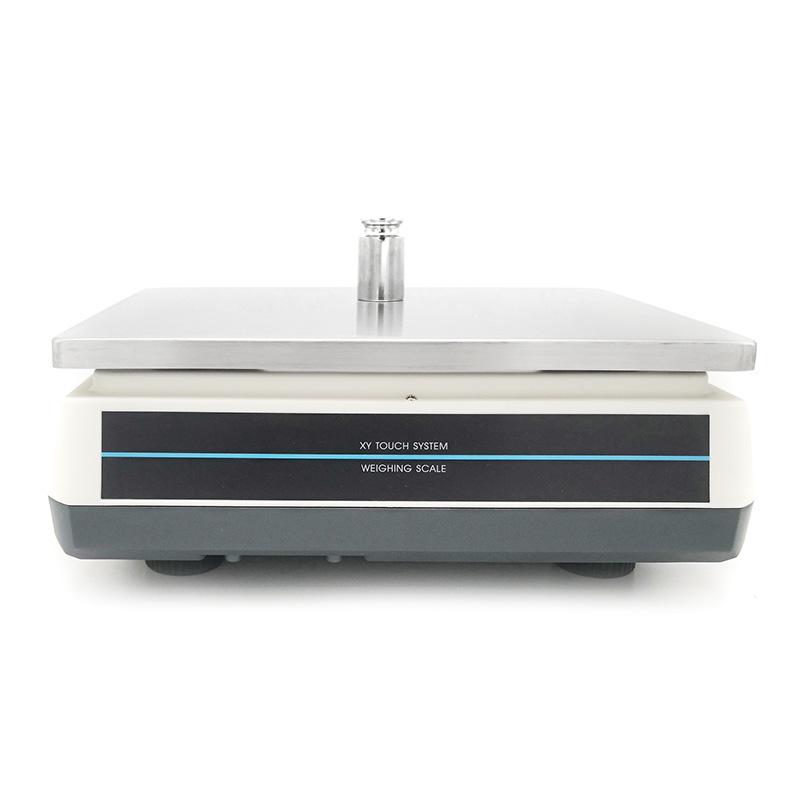

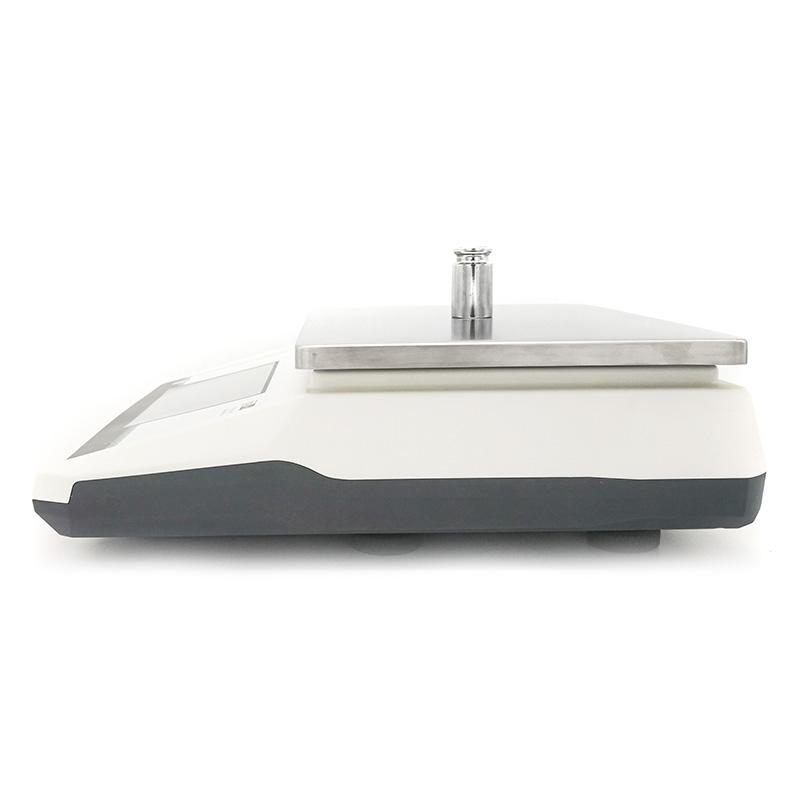

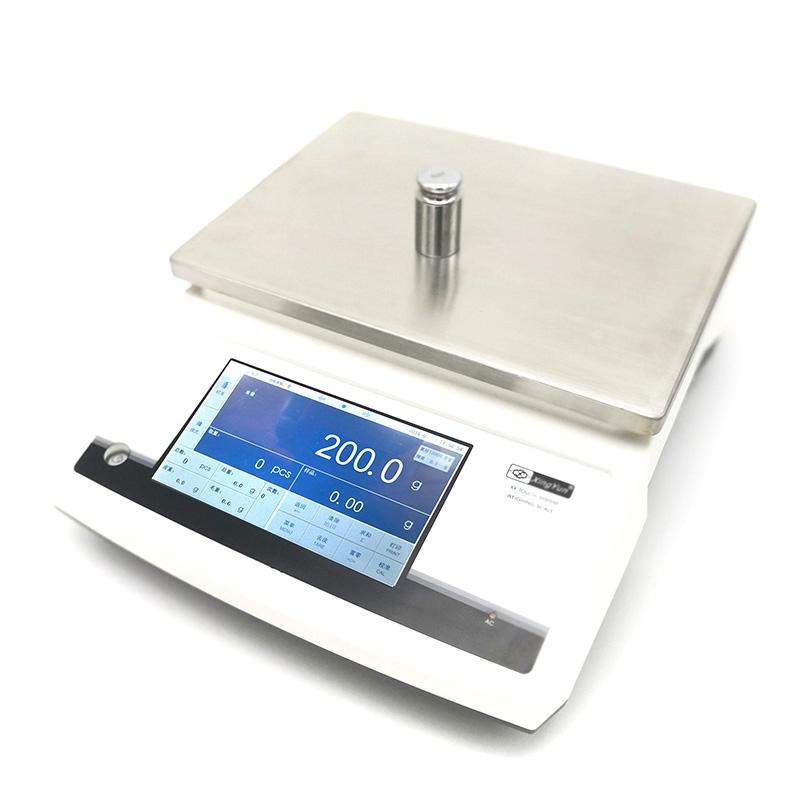

XINGYUN XY10MTB precision electronic table scale is a High Accuracy weighing equipment with a Capacity of 10kg and a Readability of 0.1g. Equipped with a 7-inch high definition full-color touch display, it supports a variety of weighing modes and function expansions, and is suitable for precision weighing scenarios such as laboratories and industries.
Features
1.7 inch high definition full color touch display
2. Auto Internal Cal (optional)
3. Custom range accuracy
4. USB input and output
5. Support weighing, density, counting, label printing, percentage, hanging weighing and other functions
Principle
The electronic table scale converts the weight into an electrical signal through the weighing Sensor, and displays the result on the high definition display screen after processing by the internal processor. It supports automatic time trigger calibrating to ensure weighing accuracy, and realizes data input and output through USB and other interfaces.
Applications
Laboratory, industrial weighing, quality control, material counting, density measurement, percentage analysis
Standards
Repeatability error +/- 3d, Linearity +/- 3d, Stabilization time ≤ 4s, Sensitivity drift +/- 3d, quadrangle error +/- 3d
Steps
1. Connect power supply (Input: 220V 50HZ/110V 60HZ; Output: 12V)
2. Turn on the device and wait for stabilization (Stabilization time ≤ 4s)
3. Select the weighing mode through the touch screen (such as g, oz, ct, etc.)
Step 4 Place items for weighing
5. Use the USB interface to export data or import parameters
6. Optional Auto Internal Cal function for regular calibrating
Notice
• Operating Environment Temperature should be kept within 5 ℃ -35 ℃
• Ensure that the power input meets the specifications (220V 50HZ/110V 60HZ)
• Avoid overloading, Capacity is 10kg
• Regularly check whether repeatability errors, Linearity and other parameters meet the standards
• Optional Internal Adjustment needs to follow the instructions
• Ensure a stable USB connection when exporting data
