Overview

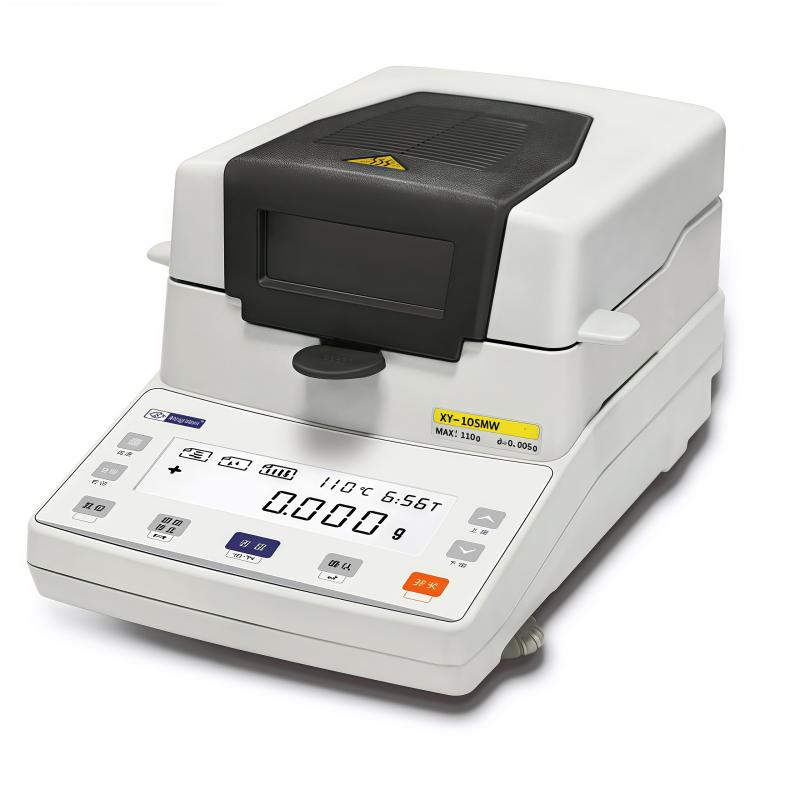

Halogen fast moisture meter is a new type of fast moisture detection instrument. Its annular halogen heater ensures that the sample is uniformly heated during the high temperature test process, so that the surface of the sample is not easily damaged, and it dries quickly. During the drying process, the moisture meter continuously measures and displays the lost Moisture content% of the sample immediately. After the drying procedure is completed, the final measured Moisture content value is locked and displayed. Compared with the international oven heating method, its detection result has good conformity and is fungible, and the detection efficiency is much higher than that of the oven method. Generally, the sample can be measured in only 4-5 minutes. The instrument is easy to operate, accurate in testing, and the display part is equipped with a large LCD screen. The display value is clearly visible, and data such as moisture value, sample initial value, final value, measurement time, temperature initial value, and temperature final value can be displayed respectively. It also has the function of connecting with a computer and a printer.
Features
1. halogen lamp/HBM Sensor
2. Precision cast aluminum shell/multi-layer stainless steel heating chamber
3. High definition LCD screen (white backlight, black font)
4. Temperature/time adjustable
5. Moisture content/drying allowance percentage
6. Historical data printing
7. Optional: Aluminum Box, Printer, Grinder
Principle
The halogen rapid moisture meter uniformly heats the sample through the annular halogen heater, so that the sample is rapidly dried. During the drying process, the instrument continuously measures and instantly displays the percentage of Moisture content lost in the sample. After the drying procedure is completed, the final measured Moisture content value is locked and displayed.
Applications
Moisture content testing and data printing of raw materials, intermediates and finished products in grain, feed, seeds, dehydrated vegetables, chemical industry, tea, food, meat, agriculture and forestry, papermaking, rubber, plastic, Spinning & weaving and other industries
Steps
1. Prepare the sample and place it on the pan
2. Set temperature and time parameters
3. Start the heating drying procedure
4. Instrument automatic measurement and display Moisture content change
5. Moisture content is locked and displayed after drying
6. Optional connection to computer or printer for data output
Notice
• Ensure Ambient Temperature within 5~ 35 ℃ before use
• Connect the power supply correctly, paying attention to the voltage requirements (220V +/- 15% 50HZ or 110V +/- 15% 60HZ)
• Avoid exceeding the Capacity when placing the sample 110g
• Avoid touching the heating compartment during the heating process to prevent burns
• Periodic external calibrating to ensure Measurement accuracy
• Keep the instrument clean to avoid dust and contaminants affecting the measurement results
