Overview

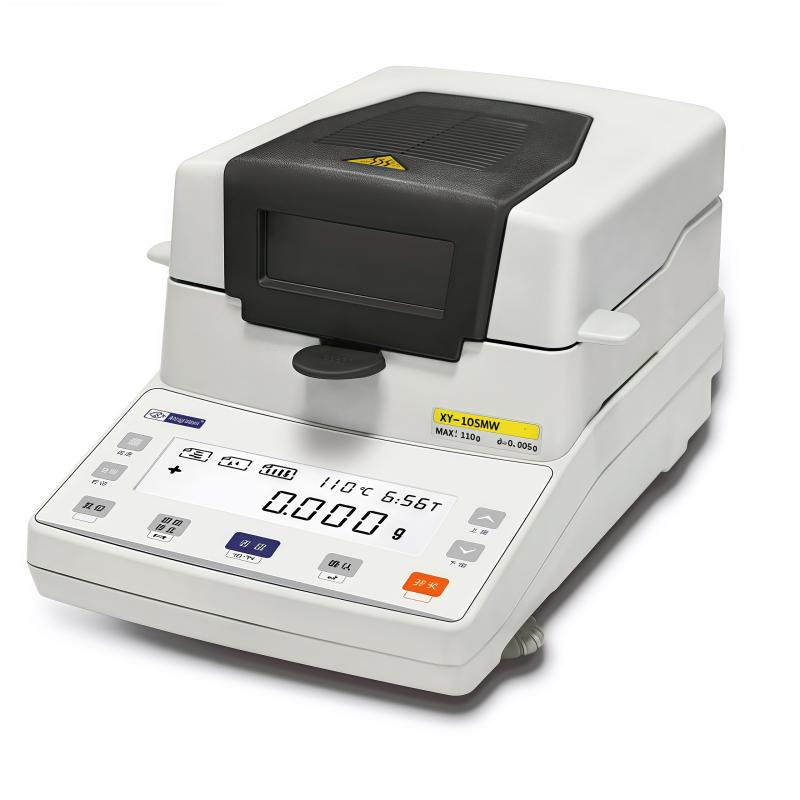

Halogen Fast Moisture Measurement Instrument XY-105MW is a new type of fast moisture detection instrument. It uses a ring halogen heater to ensure that the sample is uniformly heated, rapidly drying and the surface is not easily damaged. Continuous measurement and immediate display of Moisture content% during the drying process, and lock the final measured value after completion. Compared with the international oven heating method, the detection results are consistent and replaceable, and the efficiency is higher. Generally, the sample can be completed in only 4-5 minutes. The instrument is easy to operate and accurate in testing. It is equipped with a large LCD screen to clearly display the moisture value, sample initial value, final value, measurement time, temperature initial value, temperature final value and other data. It also supports connection with computers and printers.
Features
1. Using halogen lamp and HBM Sensor
2. Cast aluminum shell and multi-layer stainless steel heating chamber
3. High definition LCD screen (white backlight, black font)
4. Temperature and time adjustable
5. Display moisture content and drying allowance percentage
6. Support historical data printing
7. Optional aluminum case, printer, Grinder
Principle
The instrument heats the sample at high temperature through a ring halogen heater to ensure uniform heating and rapid drying. During the drying process, the Moisture content of the sample is continuously measured and the percentage is displayed instantly. After the drying procedure is completed, the final Moisture content value is locked and displayed.
Applications
Moisture content testing and data printing of raw materials, intermediates and finished products in grain, feed, seeds, dehydrated vegetables, chemical industry, tea, food, meat, agriculture and forestry, papermaking, rubber, plastic, Spinning & weaving and other industries
Steps
1. Prepare the sample and place it on the pan
2. Set the required temperature and time parameters
3. Start the heating program, the instrument automatically measures Moisture content
4. After drying, read the moisture value displayed on lock
5. Optional connection computer or printer for data output
Notice
• Ensure that the Ambient Temperature is used within the range of 5~ 35 ° C
• Power supply voltage check before use (220V +/- 15% 50HZ or 110V +/- 15% 60HZ)
• To avoid damage to the sample during heating, pay attention to uniform heating
• Periodic external calibrating to ensure Measurement accuracy
• Pay attention to address restrictions when storing data (up to 15)
• Optional Accessories such as aluminum cases, printers, and Grinders need to be configured according to actual needs
