Overview

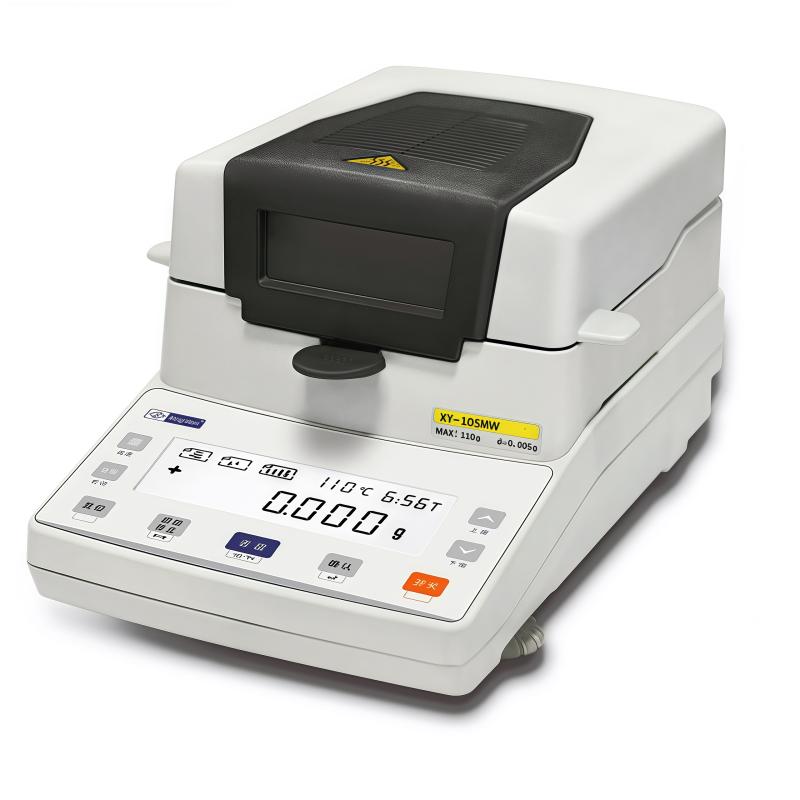

Halogen fast moisture meter is a new type of fast moisture detection instrument. Its annular halogen heater ensures that the sample is uniformly heated during the high temperature test process, so that the surface of the sample is not easily damaged, and it dries quickly. During the drying process, the moisture meter continuously measures and displays the lost Moisture content% of the sample immediately. After the drying procedure is completed, the final measured Moisture content value is locked and displayed. Compared with the international oven heating method, its detection result has good conformity and is fungible, and the detection efficiency is much higher than that of the oven method. Generally, the sample can be measured in only 4-5 minutes. The instrument is easy to operate, accurate in testing, and the display part is equipped with a large LCD screen. The display value is clearly visible, and data such as moisture value, sample initial value, final value, measurement time, temperature initial value, and temperature final value can be displayed respectively. It also has the function of connecting with a computer and a printer.
Features
1. halogen lamp/HBM Sensor
2. Precision cast aluminum shell/multi-layer stainless steel heating chamber
3. High definition LCD screen (white backlight, black font)
4. Temperature/time adjustable
5. Moisture content/drying allowance percentage
6. Historical data printing
7. Optional: Aluminum Box, Printer, Grinder
Principle

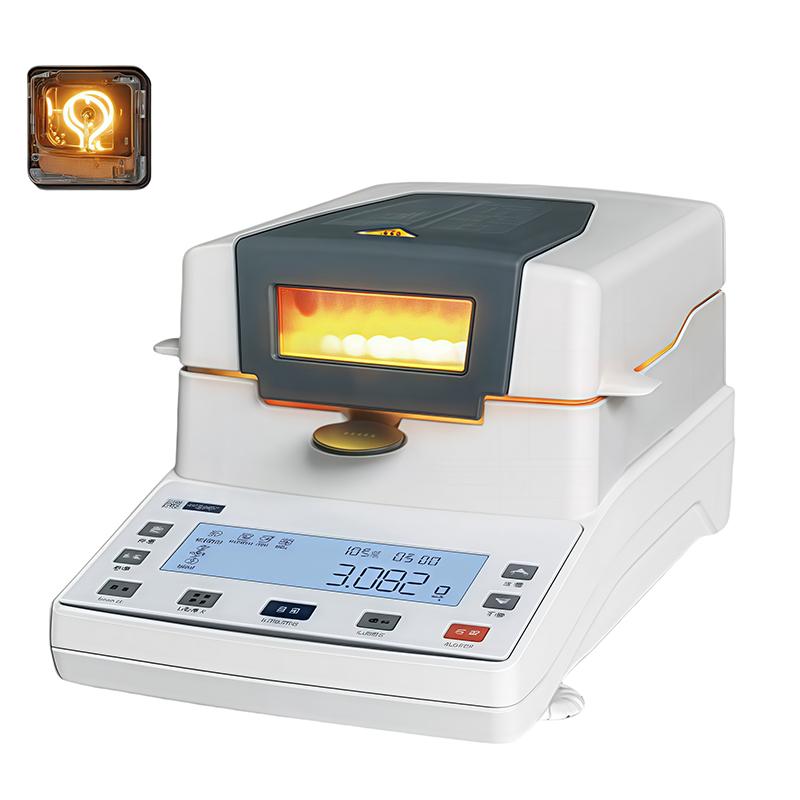

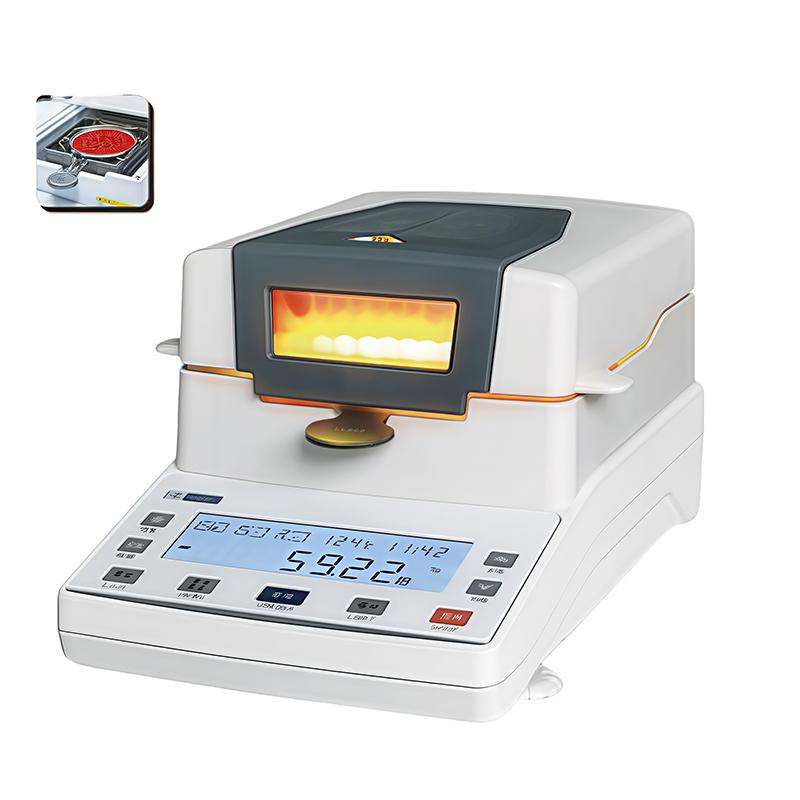

The annular halogen heater ensures that the sample is uniformly heated during the high temperature test process, making the surface of the sample not easily damaged and drying quickly. During the drying process, the moisture meter continuously measures and instantly displays the Moisture content% of the sample lost. After the drying procedure is completed, the final measured Moisture content value is locked and displayed.
Applications
Moisture content testing and data printing of raw materials, intermediates and finished products in grain, feed, seeds, dehydrated vegetables, chemical industry, tea, food, meat, agriculture and forestry, papermaking, rubber, plastic, Spinning & weaving and other industries
Steps
1. Set temperature and time parameters
2. Place the sample for heat drying
3. Instrument continuous measurement and display Moisture content
4. Lock and display the final moisture value after drying

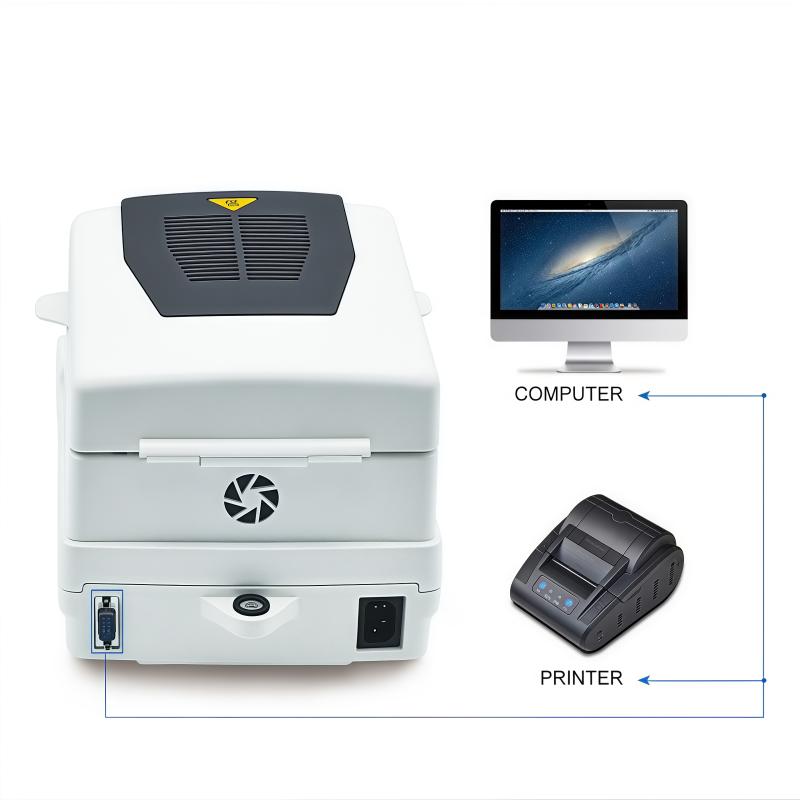

5. Optional connection to computer or printer for data output
Notice
Please read the instructions carefully before use
- Power supply voltage compliance (220V +/- 15% 50HZ/110V +/- 15% 60HZ)
- Operating Ambient Temperature should be kept within the range of 5~ 35 ℃
- Avoid excess sample, Capacity value is 110g
- Periodically calibrated for Measurement accuracy
- Power of heating part is 400W, pay attention to safety when using
