Overview

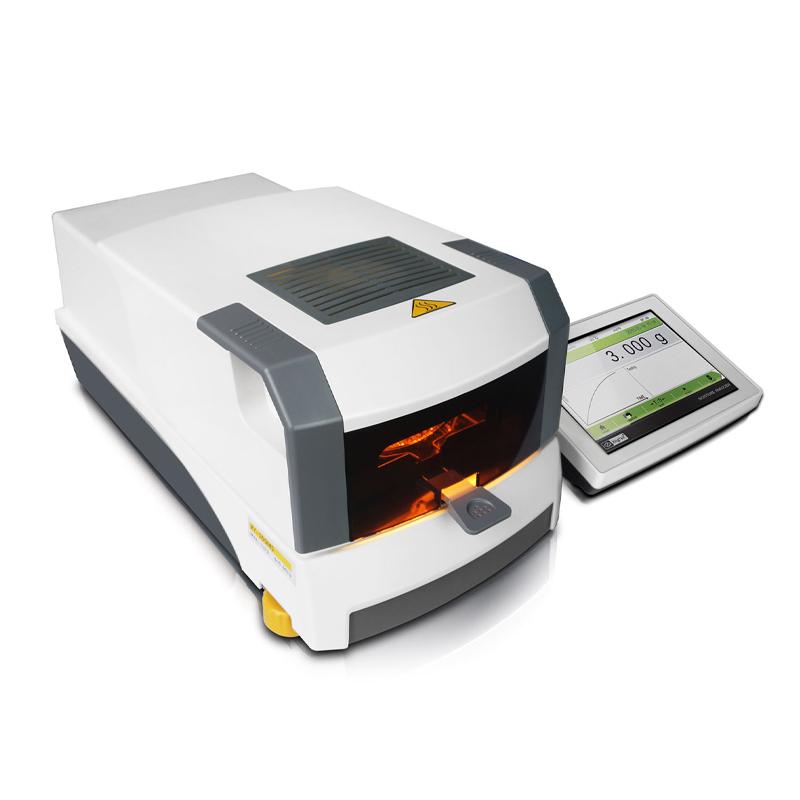

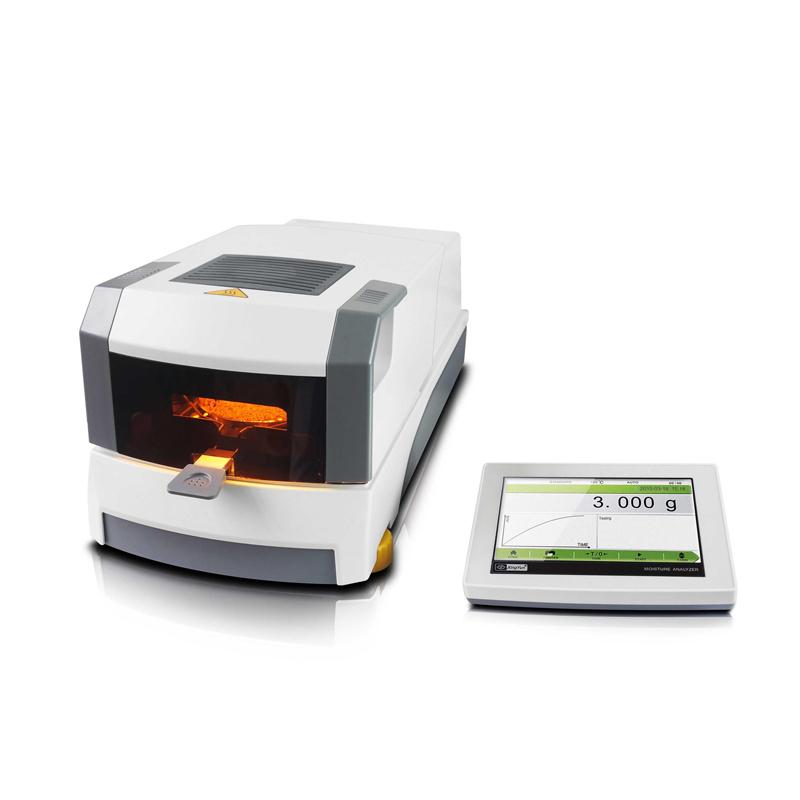

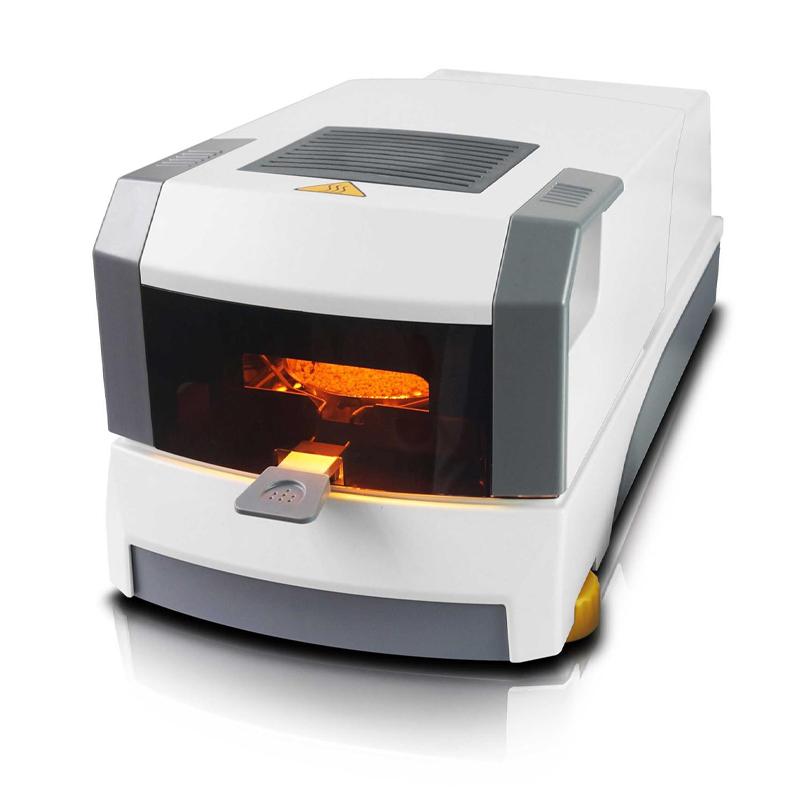

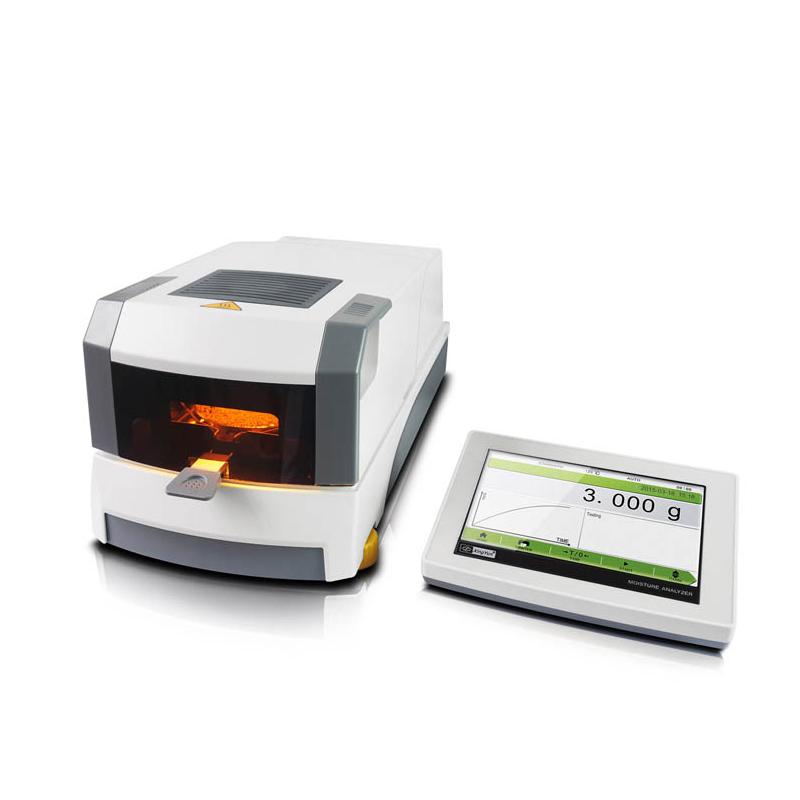

XINGYUN XY-100MS Intelligent Moisture Analyzer is a High Accuracy Moisture Detection Device with Halogen Lamp Heating Source, equipped with a 7-inch high definition smart touch display, which can display key parameters such as moisture percentage, dry weight percentage and dry weight in real time.
Features
1. The dual-drive ultra-quiet opening of the fully automatic heating cabin door prevents the influence of artificial flip-off on weighing, and meets the requirements of automatic testing at the same time
2.7 inch high definition intelligent touch display, Linear dispersion real-time dynamic analysis, moisture percentage/dry weight percentage/dry weight weight direct display
3.230 ° C limit heating temperature, meeting the vast majority of sample tests
4. The sample is effectively placed in the heating cabin with a height of 35cm.
5. Sample test window, real-time monitoring of sample test changes
6.20 sets of effective storage addresses to meet the test settings for different samples
7.20 sets of recent test records, ready to retrieve and print test results
8. Maximum 200g oversized weighing
9. Imported HBM Weighing Sensor
10. Four layers of stainless steel heat the inner compartment to improve sample testing efficiency
11. A variety of high temperature resistant special materials
12. Appearance and product structure function multiple technologies

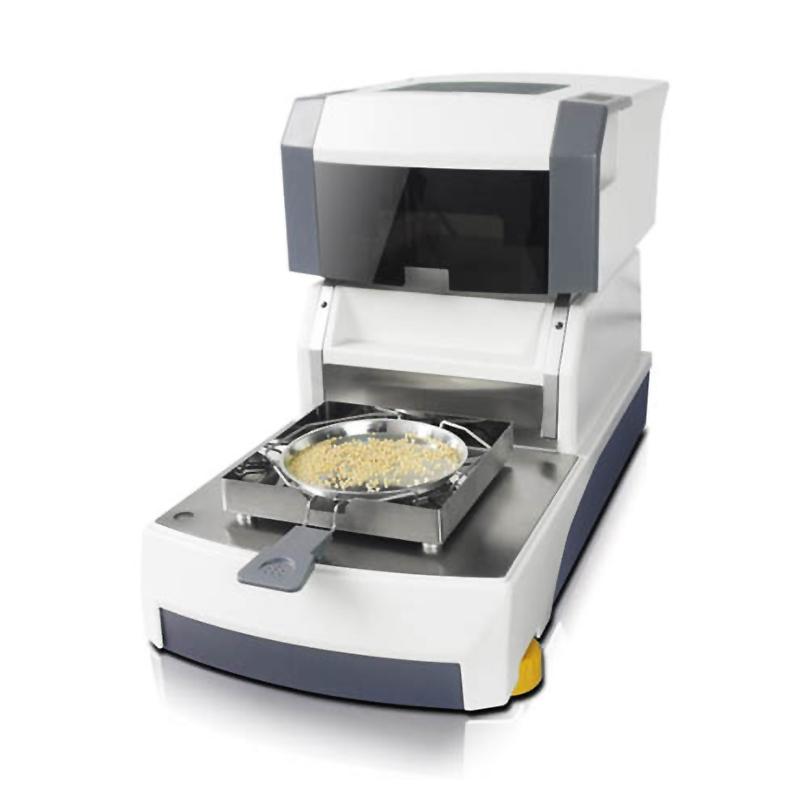

13. Open sample tray for quick cleaning of residual measurements
14. Removable test upper cover for easy replacement of accessories
15. Intelligent anti-pinch and automatic detection opening functions effectively protect users and instrument mechanical systems
16. Rapid system updates and upgrades
Principle
The instrument uses a halogen lamp as a heating source, heats and dries the sample by precisely controlling the heating temperature (RT + 40~ 230 ℃), and uses an imported HBM weighing Sensor to monitor the weight change of the sample in real time. Moisture content of the sample is determined by calculating the difference between the initial weight and the weight after drying.
Applications
Moisture determination, sample testing, laboratory analysis
Standards
Weight calibrated
Steps
1. Turn on the power and turn it on.
2. Place the sample on the pan
3. Set test parameters through the touch screen
Step 4 Start the heating program
5. Linear dispersion and data display
6. View and save the results after the test is completed
7. Optional to print test records
Notice
• Temperature range 5~ 35 ℃
• Capacity value is 110g, do not overload
• Measurement accuracy with regular weight calibrating
• Pay attention to the high temperature of the heating cabin to avoid burns
• Keep the instrument clean and clean up the residual measurement in time
