Overview

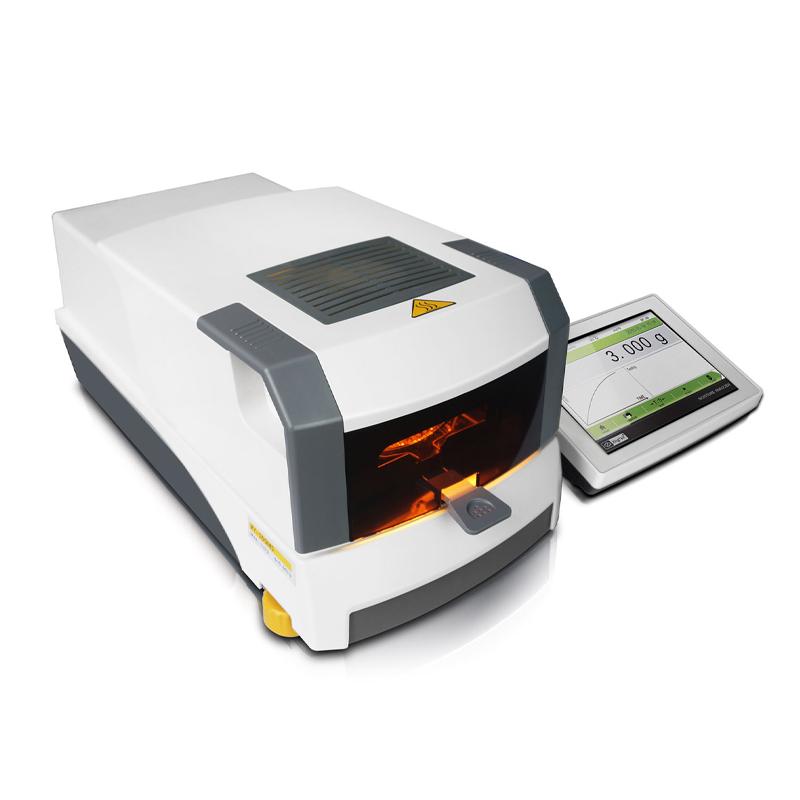

XINGYUN XY-100MS (Plus) Intelligent Moisture Analyzer is a High Accuracy Moisture Detection Device using halogen lamp heating source, with fully automatic heating cabin door dual-drive ultra-quiet opening function and 7-inch high definition smart touch display, which can display key parameters such as moisture percentage, dry weight percentage and dry weight in real time.
Features
1. The dual-drive ultra-quiet opening of the fully automatic heating cabin door prevents the impact of artificial flip on the weighing
2.7 inch high definition intelligent touch display, Linear dispersion real-time dynamic analysis, moisture percentage/dry weight percentage/dry weight weight direct display
3.230 ° C limit heating temperature, meeting the vast majority of sample tests
4. The sample is effectively placed in the heating cabin with a height of 35cm.
5. Sample test window, real-time monitoring of sample test changes
6.20 sets of effective storage addresses to meet the test settings for different samples
7.20 sets of recent test records, ready to retrieve and print test results
8. Maximum 200g oversized weighing
9. Imported HBM Weighing Sensor
10. Four layers of stainless steel heat the inner compartment to improve sample testing efficiency
11. A variety of high temperature resistant special materials
12. Appearance and product structure function multiple technologies
13. Open sample tray for quick cleaning of residual measurements
14. Removable test upper cover for easy replacement of accessories
15. Intelligent anti-pinch and automatic detection opening functions effectively protect users and instrument mechanical systems
16. Rapid system updates and upgrades
Principle
The Moisture Analyzer uses a halogen lamp heating source to heat the sample, precisely controls the heating Temperature range from RT + 40 ° C to 230 ° C through the PT100 temperature sensor, uses the imported HBM weighing Sensor to monitor the sample weight change in real time, and calculates the difference between the initial weight and the drying weight to determine the Moisture content of the sample.
Applications
Moisture determination, sample testing, laboratory analysis
Standards
Weight calibrated
Steps
1. Place the sample on the φ 100mm pan
2. Set test parameters through a 7-inch touch screen
3. Start the fully automatic heating program
4. Observe sample changes in real time through the viewable window
5. Read and record test results
6. Optionally store or print test data
Notice
• Temperature range 5~ 35 ℃
• Capacity is 110g
• Heating part power requirements 220V +/- 15% 50HZ or 110V +/- 15% 60HZ
• Regular weight calibrating to ensure Measurement accuracy
• Use an open sample tray when cleaning residual measurements
• Pay attention to the operation of the removable test upper cover when replacing accessories
